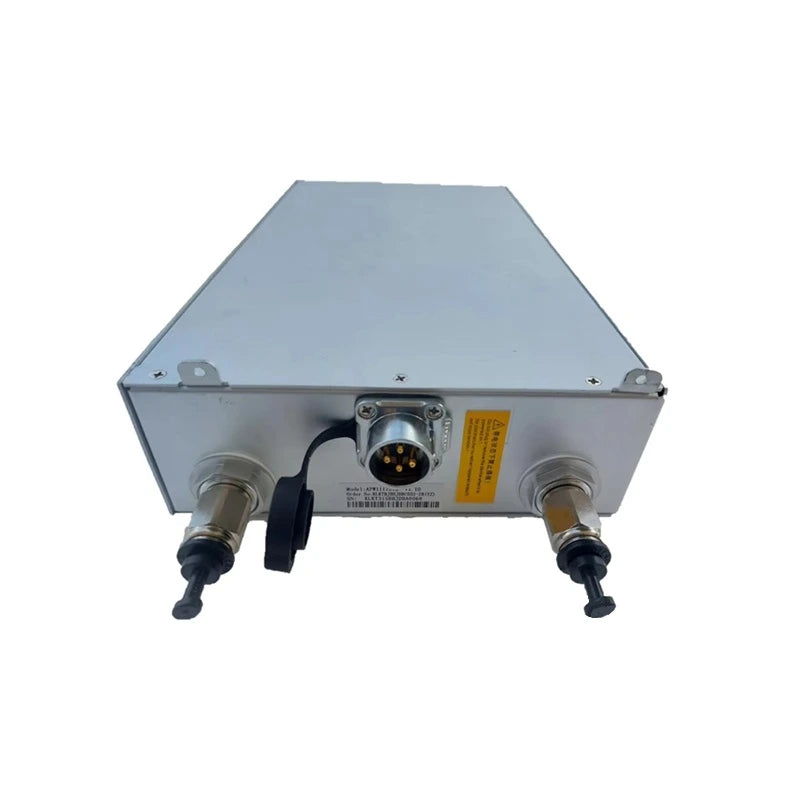

APW11 17V-21.6V EMC (b Version) Bitmain Power Supply for S19 T19 S19 pro+ Hydro Miners

Out1

DC Voltage

17V-21.6V

Rated Current(380V input)

300A

Rated Power(380Vinput)

6500W

Ripple & Noise

<1%

Line Regulation

<1%

Load Regulation

<1%

Setup Time

<5S

Short Circuit Protection

>10mS

Detailed Characteristics

Out2

DC Voltage

12.3V

Rated Current(220 V input)

1A

Ripple & Noise

<1%

Voltage Accuracy

12.2V---12.4V

Line Regulation

<1%

Load Regulation

<1%

Setup Time

<5S

Short Circuit Protection

>10mS

Input

Voltage Range

380-415V AC

Frequency Range

50~60 Hz

Power Factor

>0.99(full load)

Leakage Current

<1.5mA（380V 50Hz）

Protection

Low-voltage Input

< 304V AC

Output Short Circuit

Yes

Overheat Protection

Yes

Over-current Output

300A-350A

Environment

Operating Temperature

-20-45℃

Operating Humidity

20%-90%RH（non--condensing）

Altitude

< 2000m

Structure

Dimensions

320mm*179mm*63mm

Net Weight

5kg

Cooling System

Water cooling

Inlet temperature

20-35 ℃

Water flow rate

8L/min

Water pressure

<3.5 BAR
