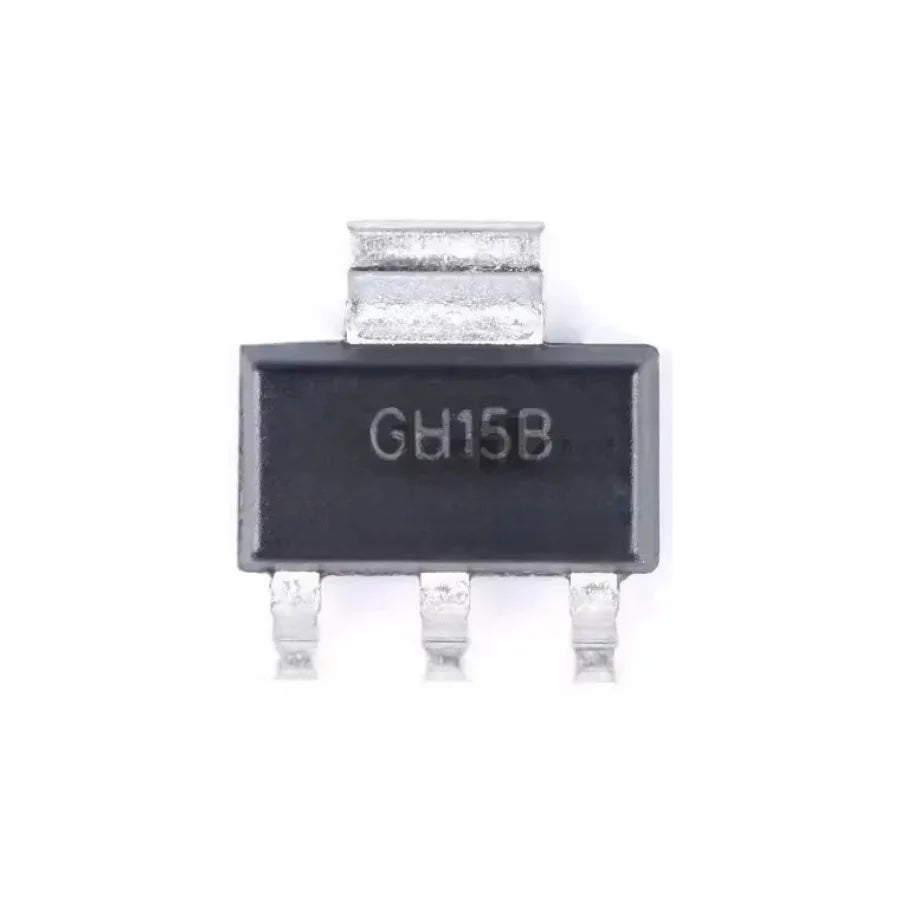

AZ1117CH-2.5TRG1 GH15D Three-terminal regulator on Avalon 8 series PMU board
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
AZ1117CH-2.5TRG1 2.5V 800MA - Low Dropout Three-Terminal Regulator
Looking for a reliable and efficient power management solution for your USB devices, add-on cards, DVD players, and PC motherboards? Look no further than the AZ1117CH-2.5TRG1 2.5V 800MA regulator. With its low dropout voltage and on-chip thermal shutdown feature, you can trust this three-terminal regulator to provide a highly accurate output voltage within ±1%.
Achieve optimal voltage regulation with our AZ1117CH-2.5TRG1 2.5V 800MA regulator, perfect for USB devices and more!
Plus, the device is optimized for low voltage and comes in a fixed 2.5V output voltage version or an adjustable output voltage version to fit your needs. Easy to use and industry-standard packaged in the SOT223, this regulator also offers current limit protection, ensuring peak performance and protection against damage from high current and ambient temperatures.
Low-dropout three-terminal regulator Key Features:
|
Category |
Integrated Circuits (ICs) |
|
Power Management (PMIC) |
|
|
Voltage Regulators - Linear |
|
|
Series |
AZ1117C |
|
Package |
Tape & Reel (TR) |
|
Output Configuration |
Positive |
|
Output Type |
Fixed |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
15V |
|
Voltage - Output (Min/Fixed) |
2.5V |
|
Voltage Dropout (Max) |
1.3V @ 800mA |
|
Current - Output |
1A |
|
Current - Quiescent (Iq) |
6 mA |
|
PSRR |
70dB (120Hz) |
|
Protection Features |
Thermal Shutdown |
|
Operating Temperature |
-20°C ~ 125°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-261-4, TO-261AA |
|
Base Product Number |
AZ1117 |
Buying in bulk for a mining farm or repair shop?
Get dedicated B2B pricing on this part and across our full catalog — quote response within 24 hours, payment by T/T USD bank wire, and DDP delivery available for US & EU customers (and other lanes on request).
