Dried thermal paste is one of the most common — and most preventable — causes of ASIC hashboard overheating. When the thermal interface between your ASIC chips and the heatsink degrades, chip temperatures climb, performance throttles, and eventually components fail. Replacing dried thermal compound can drop chip temperatures by 5–15°C, and the entire procedure takes under an hour per board once you know what you're doing.
The problem is that most guides skip the details that matter: how to remove a heatsink without cracking solder joints, which thermal conductivity rating actually makes a difference, how much paste is too much, and why model-specific stencils exist. This guide covers all of it.
When to Re-Paste: The Signs
Re-pasting isn't something you do on a calendar date — it's something you do when the symptoms appear. Here's what to look for:
Temperature warnings in the miner dashboard. If chip temperatures are consistently 5–10°C above normal baselines for your model and ambient conditions, degraded thermal paste is the most likely cause. On an S19 Pro, normal chip temps run 55–75°C depending on ambient and fan speed. If you're seeing 80°C+ with clean airflow, the thermal interface is likely the problem.
Uneven temperature across chips on the same board. One hot spot while neighboring chips are normal almost always points to a localized thermal paste failure — not a chip defect. Check paste before replacing the chip.
Reduced hashrate without error codes. Thermal throttling can reduce output by 10–30% without triggering an explicit error. If a board is underperforming and the miner logs show elevated temperatures, re-paste first.
Visible paste condition on inspection. If you remove the heatsink and see dried, cracked, or chalky thermal compound that has separated from the chip surface, it's overdue for replacement.
General maintenance interval: Industry best practice is to re-paste every 12–18 months in standard air-cooled environments. In dusty, hot, or high-humidity facilities, shorten that to 6–12 months.
What You Need Before Starting
| Item | Purpose | Notes |
|---|---|---|
| Thermal compound (see selection guide below) | New thermal interface | Minimum 5W/mK for mining; 8W/mK+ recommended for S21 |
| 99% isopropyl alcohol (IPA) | Cleaning old paste | Do not use 70% — water content leaves residue |
| Lint-free cloths or microfiber wipes | Surface cleaning | Paper towels leave fibers — avoid them |
| ESD wrist strap | Static protection | Non-negotiable — one discharge can kill an ASIC chip |
| Screwdriver set (Phillips / hex) | Heatsink removal | Match to your model's heatsink screws |
| Plastic spudger or pry tool | Heatsink separation | Never use metal tools against the PCB |
| Thermal paste stencil (model-specific) | Even application | Optional but strongly recommended for speed and consistency |
Step 1: Safe Heatsink Removal
This is where most damage happens. The heatsink is bonded to the ASIC chips through thermal paste that may have hardened over months or years of 70°C+ operation. Forcing it off can rip solder balls from chip pads, crack the PCB substrate, or shear tiny surface-mount components next to the chips.
Procedure:
- Power off and disconnect all cables. Wait at least 10 minutes for the board to cool. Heatsinks and hashboards can exceed 80°C during operation — handling them hot risks burns and makes paste removal harder.
- Remove the heatsink mounting screws. Use a diagonal pattern — loosen opposite corners first, then the remaining screws. This releases clamping pressure evenly and prevents the heatsink from pivoting on one corner and stressing the PCB.
- Break the paste bond gently. If the heatsink doesn't lift away freely, do NOT pry. Apply gentle twisting force (rotate the heatsink 1–2mm in each direction) while pulling straight up with even pressure. The goal is to shear the paste layer, not lever against the board.
- If it's truly stuck: Apply a small amount of 99% IPA around the heatsink edges with a syringe or dropper. Let it wick in for 2–3 minutes. The alcohol softens dried paste and breaks the bond. Then try the twist-and-lift again.
Never: Use a flathead screwdriver as a lever between the heatsink and PCB. Never apply force to one side only. Never heat the heatsink with a heat gun to soften paste — the uncontrolled heat can damage nearby components.
Step 2: Cleaning Both Surfaces
Once the heatsink is off, you need a clean surface on both the chip tops and the heatsink contact face.
- Remove bulk old paste with a plastic scraper or the edge of a credit card. Work carefully around surface-mount components adjacent to the chips — they are fragile and easily knocked off.
- Clean with 99% IPA and lint-free cloth. Dampen the cloth (don't pour IPA directly on the board) and wipe each chip surface until no residue remains. Clean the heatsink contact surface the same way.
- Inspect under good lighting. Look for any paste residue in the gaps between chips. Excess paste that has migrated to component pads or solder joints should be cleaned up — it can interfere with electrical connections, especially with conductive or capacitive paste formulations.
- Let both surfaces dry completely before applying new compound. IPA evaporates quickly, but give it 2–3 minutes.
Step 3: Choosing the Right Thermal Compound
Not all thermal paste is equal. For ASIC mining hashboards running 24/7 at high temperatures, the thermal conductivity rating (measured in W/mK — watts per meter-Kelvin) directly impacts cooling performance.
| W/mK Rating | Suitability for ASIC Mining | Examples |
|---|---|---|
| Below 3 W/mK | Not recommended — insufficient for 24/7 mining loads | Generic consumer paste |
| 3.5–5.5 W/mK | Acceptable for S19/S19 Pro (7nm chips, more thermal headroom) | G18 Thermal Gel 5.5W/mK, HY880 5.15W/mK |
| 6–8 W/mK | Recommended for S21 and all 5nm/3nm platforms | Dowsil 8W Blue Thermal Gel 1kg, G19 Blue Thermal Gel 8W/mK (110g) |
| 8+ W/mK | Best performance — worthwhile for S21 XP and hydro-cooled units | Dowsil 8W Blue Thermal Gel 1kg (bulk), MTP-8301A (11.2W/mK) |
The key rule: for any 5nm chip (BM1366, BM1368) or 3nm chip (BM1370), use 6W/mK or higher. These chips run at tighter thermal margins than the 7nm generation — every degree matters. For the older S19 Pro fleet (BM1398), 4–5W/mK paste is workable but higher is always better.
Non-conductive vs. conductive: For ASIC hashboards, always use non-conductive (electrically insulating) thermal paste. The chips are surrounded by tiny surface-mount components, capacitors, and solder joints. Electrically conductive paste (like liquid metal) that migrates to adjacent pads can cause short circuits. All the pastes listed above are non-conductive.

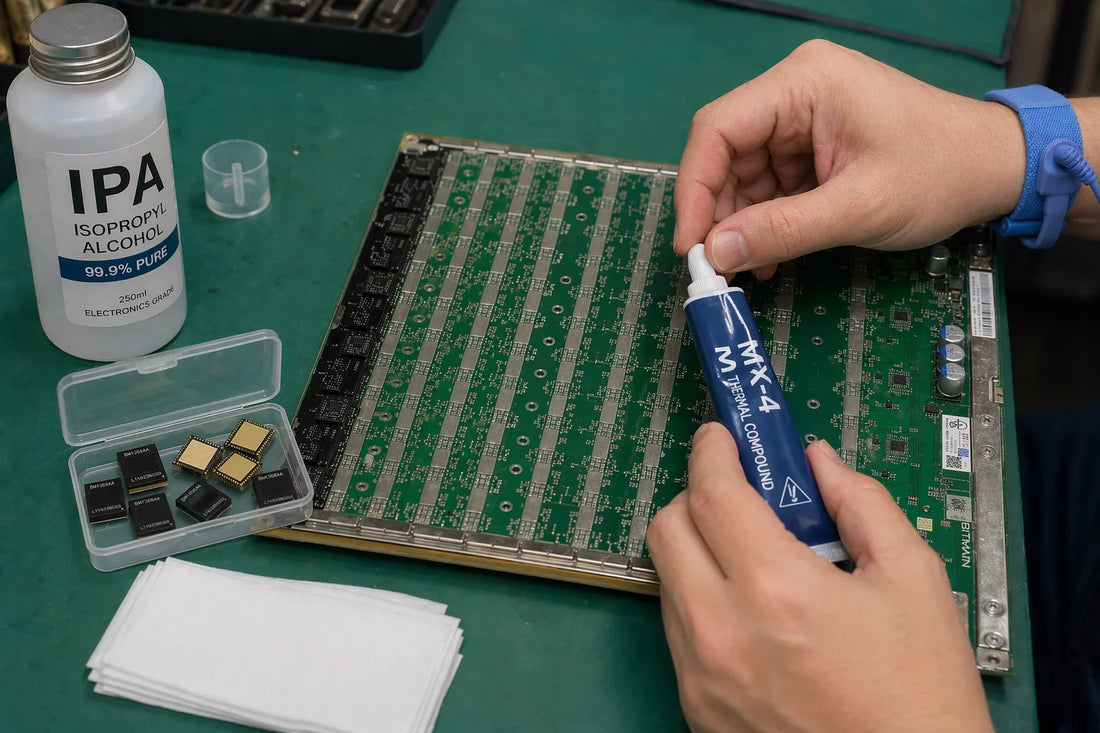

Step 4: Applying the Thermal Compound
You have two approaches: manual application (chip by chip) or stencil application (all chips at once).
Manual Application (No Stencil)
For each ASIC chip on the board:
- Apply a small dot of paste (roughly the size of a grain of rice) to the center of the chip.
- The paste will spread when the heatsink is mounted and clamped down. You do NOT need to pre-spread with a spatula — the mounting pressure distributes it.
- For rectangular chip packages, a thin line across the center (the "line method") works better than a center dot to ensure edge-to-edge coverage.
How much is too much? If paste squeezes out visibly from under the heatsink when you mount it, you've used too much. Excess paste can flow onto adjacent components, create insulation where you want contact, and make a mess that's hard to clean. Start conservative — you can always add more, but removing excess after mounting is a pain.
An S19 Pro board has 114 chips. An S21 board has 108. Manual application works, but it's slow and consistency varies chip-to-chip.
Stencil Application (Recommended)
Model-specific thermal paste stencils sit over the hashboard and expose only the chip surfaces. You spread paste across the stencil with a squeegee, then lift the stencil — leaving an even, consistent layer on every chip simultaneously.
Stencils are available for most current platforms:
Stencil application is faster (5 minutes vs. 20+ minutes manual for a full board), more consistent (even thickness across all chips), and reduces waste. If you're re-pasting more than a couple of boards per month, the stencil pays for itself on the first use.
Step 5: Heatsink Reinstallation
- Align the heatsink carefully over the board. Lower it straight down — don't slide it into position, as sliding can push paste off the chip surfaces and create uneven coverage.
- Finger-tighten all screws first. Get all mounting screws started before tightening any of them fully.
- Tighten in a diagonal (cross) pattern. Go to 50% torque in a cross pattern, then 100% torque in the same pattern. This ensures even clamping pressure across all chips. Uneven tightening = uneven contact = hot spots.
- Do not overtighten. The goal is firm, even contact — not maximum force. Overtightening can warp the heatsink, crack the PCB, or stress solder joints under the chips.
The Five Most Common Re-Paste Mistakes
| Mistake | What Happens | How to Avoid |
|---|---|---|
| Prying heatsink off with a screwdriver | Cracked PCB, ripped solder balls, damaged SMD components | Twist-and-lift only. Use IPA to soften bond if stuck. |
| Using consumer-grade paste (<3W/mK) | Insufficient cooling, temps still high after re-paste | Use 5W/mK+ for S19, 8W/mK+ for S21 |
| Applying too much paste | Squeeze-out onto adjacent components, insulation, mess | Rice-grain dot or line method. Less is more. |
| Skipping the cleaning step | New paste doesn't bond properly, air gaps remain | 99% IPA + lint-free cloth. Clean until spotless. |
| Uneven screw tightening | Heatsink tilts, some chips have poor contact = hot spots | Diagonal cross pattern, 50% then 100% torque |
After Re-Paste: Verification
Once the board is reassembled and installed in the miner:
- Monitor chip temperatures for the first 30 minutes. Temperatures should stabilize 5–15°C below what they were before re-paste.
- Check for even temperature distribution. All chips on the board should be within 5–8°C of each other at steady state. If one chip is significantly hotter, the paste coverage for that chip may be insufficient — consider re-doing that section.
- Verify hashrate is at nominal. If hashrate is still below expected after re-paste and temps are normal, the issue isn't thermal — look at the chip itself or the power delivery.
The LYS Technical Team is based in Shenzhen, China, where we operate a dedicated ASIC mining hardware repair workshop and parts supply operation. We ship spare parts, repair components, and diagnostic tooling to mining operators in over 40 countries. Every article we publish is written and reviewed by working repair technicians who service Antminer, Whatsminer, and Avalon hardware daily.
Frequently Asked Questions
How often should I re-paste my ASIC miner hashboards?
In standard air-cooled environments, every 12–18 months is the industry guideline. In dusty, hot, or high-humidity facilities, shorten that to 6–12 months. The real trigger is symptoms: rising chip temperatures, thermal warnings in the dashboard, or visible paste degradation on inspection.
Can I use regular CPU thermal paste for ASIC hashboards?
Generic consumer thermal paste rated below 3W/mK is not recommended for ASIC mining. Mining chips run 24/7 at high wattage — they need paste rated 5W/mK or higher to maintain adequate heat transfer. Consumer paste also tends to dry out faster under constant high temperatures.
Do I need a different stencil for each Antminer model?
Yes. Each Antminer model has a different hashboard layout — chip count, chip spacing, and component placement vary between S19 Pro, S19j Pro, S19 XP, etc. A model-specific stencil ensures paste is applied only to chip surfaces and doesn't cover other components. Using the wrong stencil can result in paste on connectors or missing chips entirely.
What happens if I use too much thermal paste?
Excess paste squeezes out from under the heatsink when it's mounted. This paste can migrate to adjacent surface-mount components, solder pads, and connector pins. While non-conductive paste won't cause short circuits, it creates a mess and can insulate components that need airflow for cooling. In the worst case, paste on connector pins can cause intermittent board communication issues.
My temperatures didn't improve after re-pasting. What else could it be?
If temperatures remain high after a proper re-paste, check these in order: fan performance (are all fans spinning at full speed?), airflow obstructions (dust on heatsink fins, blocked vents), ambient temperature (facility cooling), and power delivery (voltage irregularities can cause chips to draw more power and generate more heat). If temperatures are high on only specific chips, the issue may be the chip itself rather than the thermal interface.
