1530mm High Power Negative Pressure Fan 220V/380V for Crypto Mining Bitcoin Farms
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
1530mm High-Power Negative Pressure Ventilation Fan | Largest-Scale Heat Exhaust for BTC Crypto Mining Farms and Bitcoin Datacenter Ventilation (220V / 380V)

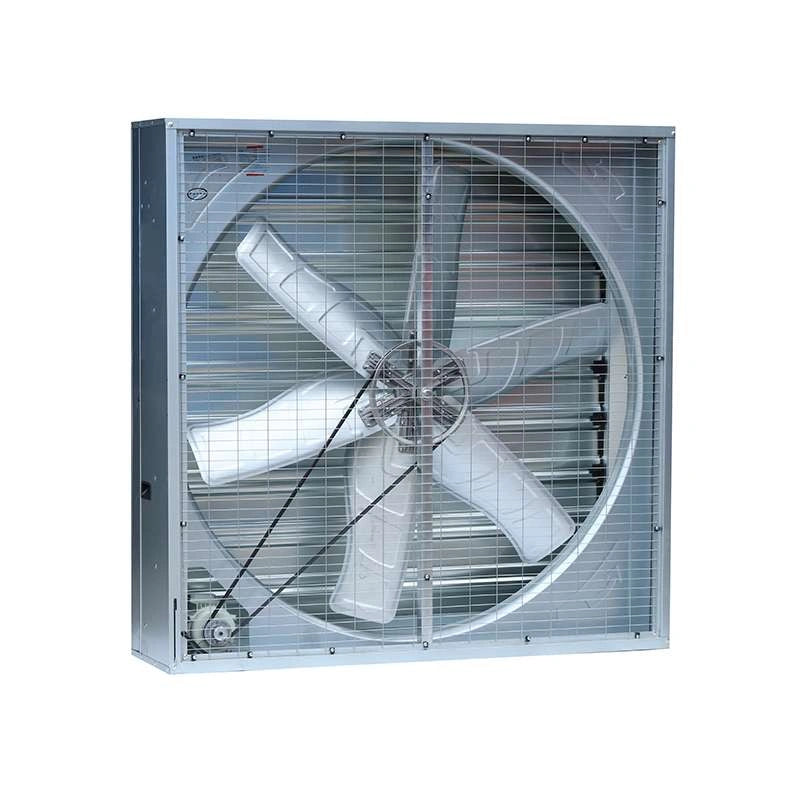

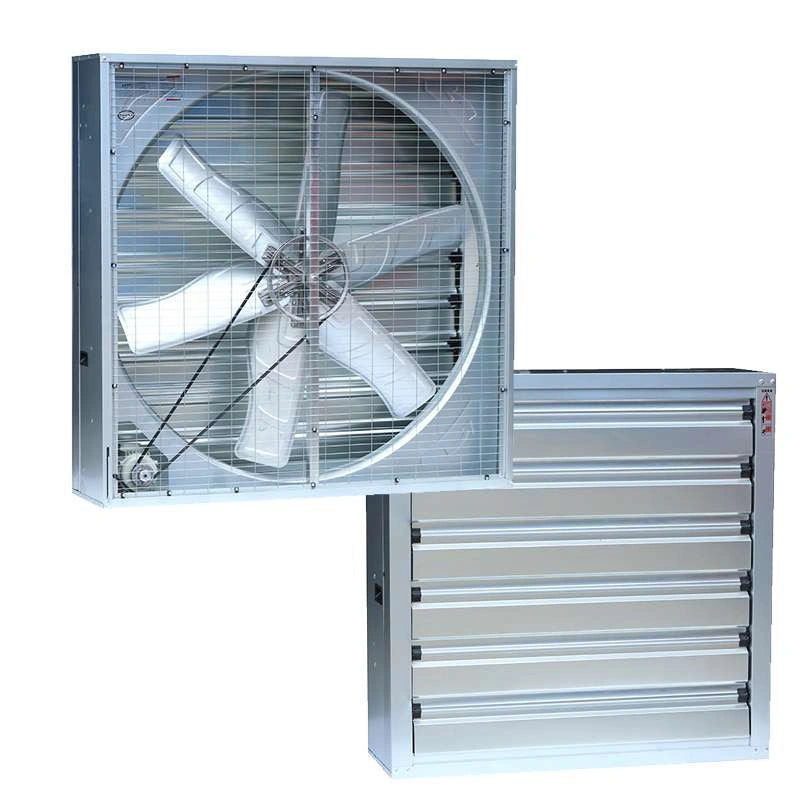

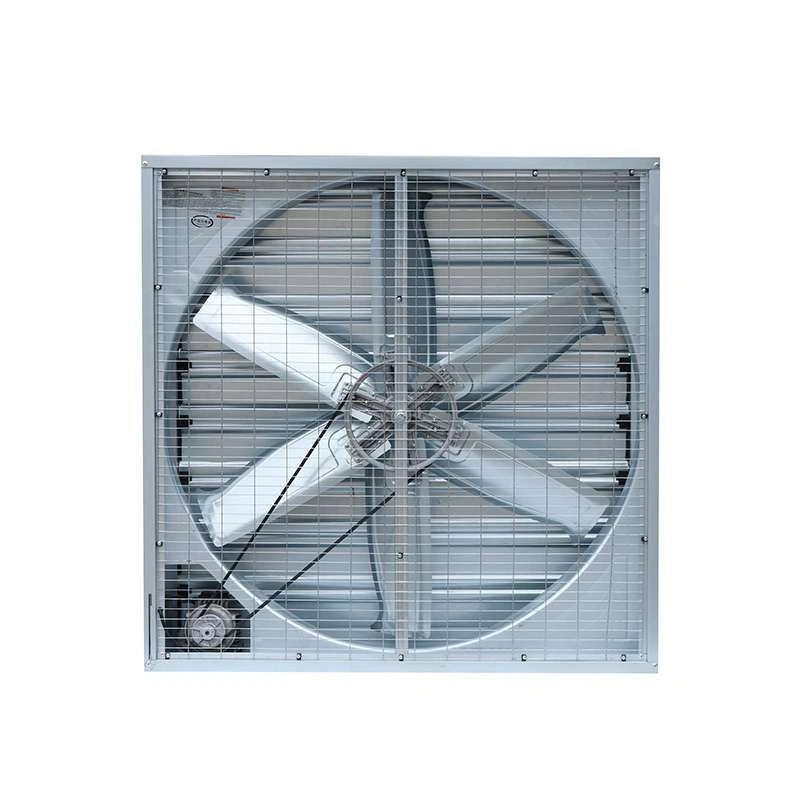

The 1530mm Negative Pressure Fan is the largest-volume industrial ventilation fan in our crypto mining farm lineup. The right pick when room size or heat density crosses what smaller fans can handle on their own — typically large warehouse-scale deployments with 200-230 m² rooms. Engineered for demanding Bitcoin farms with anti-rust thick galvanized sheet construction and pure copper motor delivering sustained 24/7 industrial duty.
Available in 220V single-phase or 380V three-phase variants to match local facility power. Delivers 32800 CFM / 55700 m³/h airflow at 1500W power draw. Exceptional suction power addresses ventilation and cooling needs effortlessly in extensive mining facilities — say goodbye to stagnant air, odours, and humidity. Maintains superior air quality and safety standards crucial for uninterrupted mining operations.
When to Install the 1530mm Negative Pressure Fan
- Large mining rooms (200-230 m²) — the only single-fan solution at this room size.
- High-density deployments — heat load above 7 kW/m² needs the higher airflow.
- Warehouse-scale facilities — pair with intake louvres for hot-aisle / cold-aisle airflow patterns.
- Container mining at scale — single fan handles full container exhaust requirement.
- Replacing a failed industrial fan — immediate replacement to restore room ventilation on commercial-scale farms.
1530mm Negative Pressure Fan Specifications
| Feature | Specification |
|---|---|
| Size (L × H × W) | 153 × 153 × 40 cm |
| Air Flow | 32800 CFM |
| Air Volume | 55700 m³/h |
| Power | 1500W |
| Rated Voltage | 220V (single-phase) or 380V (three-phase) — select at checkout |
| Applicable Area | 200–230 m² |
| Body Material | Anti-rust thick galvanized sheet |
| Fan Blade Material | Anti-rust galvanized sheet / stainless steel |
| Motor | Pure copper, continuous-duty |
| Function | Negative pressure ventilation + heat exhaust |
| Condition | Brand New |
FAQ — 1530mm Negative Pressure Fan
Q: When to step up to the 1530mm vs the 1380mm variant?
A: 1530mm covers 200-230 m² at 1500W. 1380mm covers 180-210 m² at 1100W. The 1530mm delivers ~26% more CFM (32800 vs 26000) and ~36% more power (1500W vs 1100W). For rooms above 210 m² or high-density mining deployments, the 1530mm is the only single-fan solution.
Q: 220V vs 380V — which variant for my facility?
A: 380V three-phase is strongly recommended at 1500W power draw — single-phase 220V draws ~7A continuous, which strains residential circuits. 380V three-phase distributes the load across phases and is the standard for industrial facilities.
Q: Can I run multiple 1530mm fans on the same wall?
A: Yes — large warehouse facilities typically run 2-4 fans on the exhaust wall to handle higher heat loads. Verify aperture spacing and electrical capacity before installing multiple units.
Q: Bulk pricing for multi-fan facility deployments?
A: Yes — email contact@lys-sz.com with your facility size and we'll send case-quantity pricing.
