2N7002 2N7002-7-F MOSFET N-CHANNEL 60V 115mA Replacement chip for Antminer Hashboard
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product

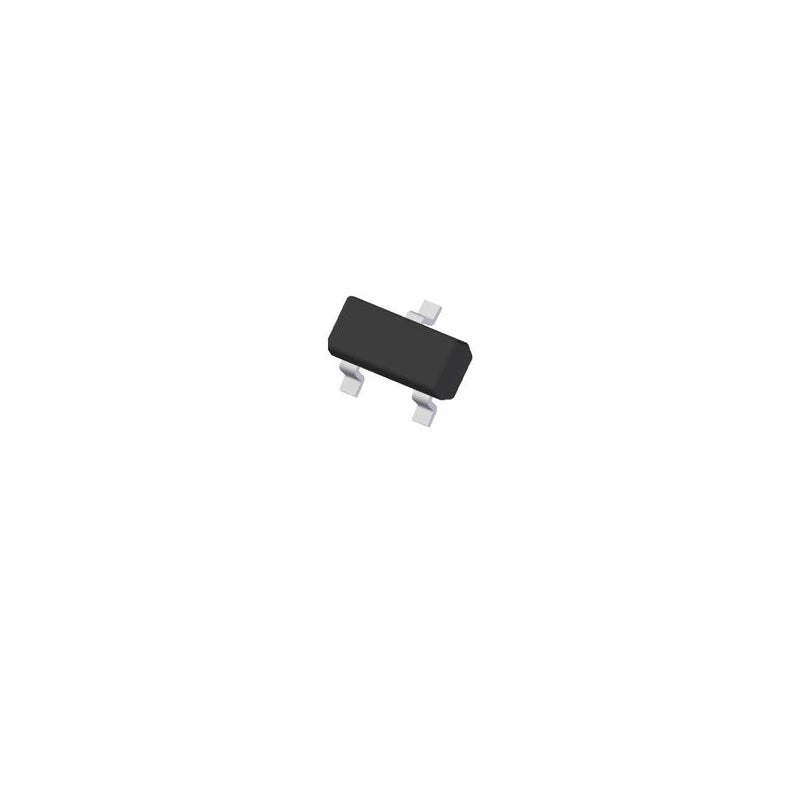

Upgrade Your Antminer Hashboard with the 2N7002-7-F MOSFET
The 2N7002-7-F MOSFET is the ideal choice for upgrading your Antminer hashboard. With its low gate to source threshold voltage of 2.1V, this MOSFET is perfectly suited for 3.3V applications. Its low on-state resistance ensures energy efficiency while maintaining high switching performance, making it popular in power management applications.
2N7002-7-F MOSFET - Efficient Power Management Solution for Antminer Hashboards
Designed for small applications, the 2N7002-7-F MOSFET is available in an SMD package, offering convenience and versatility. It can handle a continuous current of 200mA and 1A peaks, with a maximum voltage threshold. However, exceeding the maximum voltage threshold could potentially damage the MOSFET, so it's important to operate within the specified limits.
Technical Features:
|
Product Category
|
MOSFET
|
|
Technology
|
Si
|
|
Mounting Style
|
SMD/SMT
|
|
Package / Case
|
SOT-23-3
|
|
Transistor Polarity
|
N-Channel
|
|
Number of Channels
|
1 Channel
|
|
Vds - Drain-Source Breakdown Voltage
|
60 V
|
|
Id - Continuous Drain Current
|
115 mA
|
|
Rds On - Drain-Source Resistance
|
1.2 Ohms
|
|
Vgs - Gate-Source Voltage
|
- 20 V, + 20 V
|
|
Vgs th - Gate-Source Threshold Voltage
|
1 V
|
|
Qg - Gate Charge
|
-
|
|
Minimum Operating Temperature
|
- 55 C
|
|
Maximum Operating Temperature
|
+ 150 C
|
|
Pd - Power Dissipation
|
200 mW
|
|
Channel Mode
|
Enhancement
|
|
Configuration
|
Single
|
|
Height
|
1.2 mm
|
|
Length
|
2.9 mm
|
|
Product
|
MOSFET Small Signal
|
|
Series
|
2N7002
|
|
Transistor Type
|
1 N-Channel
|
|
Width
|
1.3 mm
|
|
Forward Transconductance - Min
|
0.08 S
|
|
Product Type
|
MOSFET
|
|
Part # Aliases
|
2N7002_NL
|
|
Unit Weight
|
0.000282 oz
|
