STW48N60DM2 MOSFET TO-247 for Avalon PSU Repair

STW48N60DM2 600V TO-247 N-Channel MOSFET for High-Efficiency PSU Repair

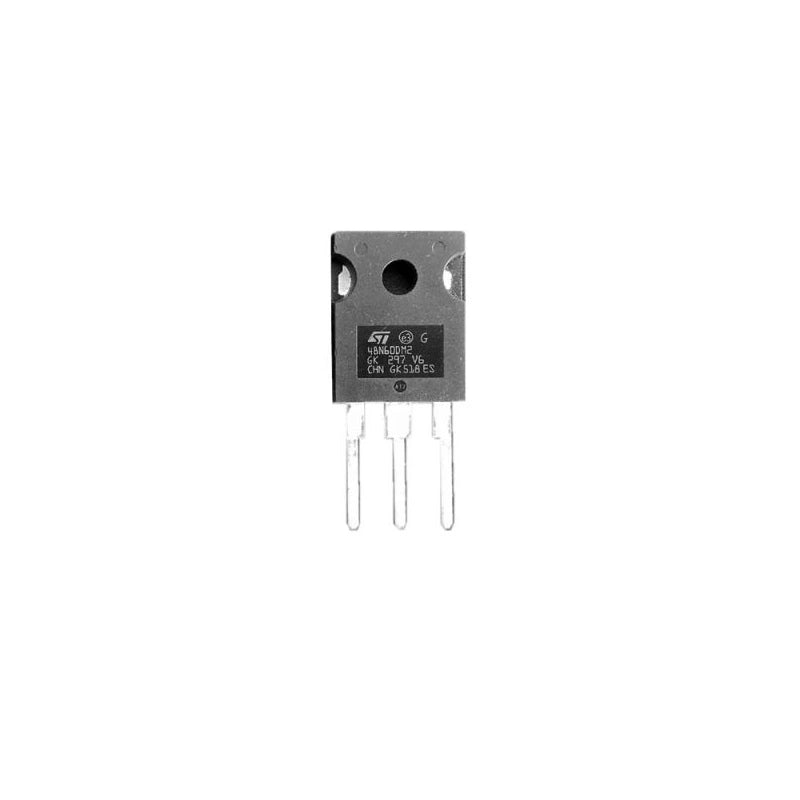

The STW48N60DM2 is a 600V N-channel power MOSFET in a TO-247 package, designed for demanding power conversion systems and PSU repair environments. It is commonly used in Avalon PSU units and Whatsminer P21 power supplies, providing reliable switching performance with low conduction losses.

With features including a fast recovery body diode, low R_DS(on), and very low gate charge, the STW48N60DM2 is suitable for high-efficiency converter stages, bridge topologies, and ZVS phase-shift applications.

Key Features and Benefits

• 600V MOSFET for high-voltage PSUs
• Fast recovery body diode for efficient switching
• Very low gate charge and input capacitance
• Low R_DS(on) for reduced conduction losses
• High dv/dt ruggedness for industrial environments
• Zener protection for enhanced reliability
• 100% avalanche tested for durability

Technical Specifications

Typical Applications

• Avalon power supply repair
• Whatsminer P21 PSU repair
• High-efficiency SMPS designs
• ZVS phase-shift converters
• Bridge switching applications
