Whatsminer CB6 V10 Control Board for M20s M21s M30s M30 M31s+ M32 M50
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

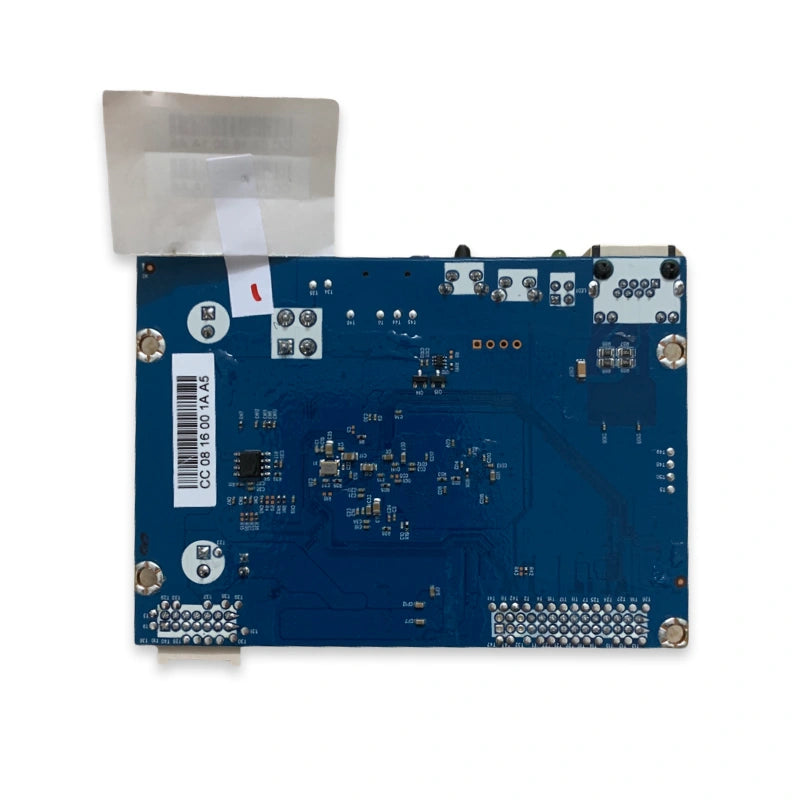

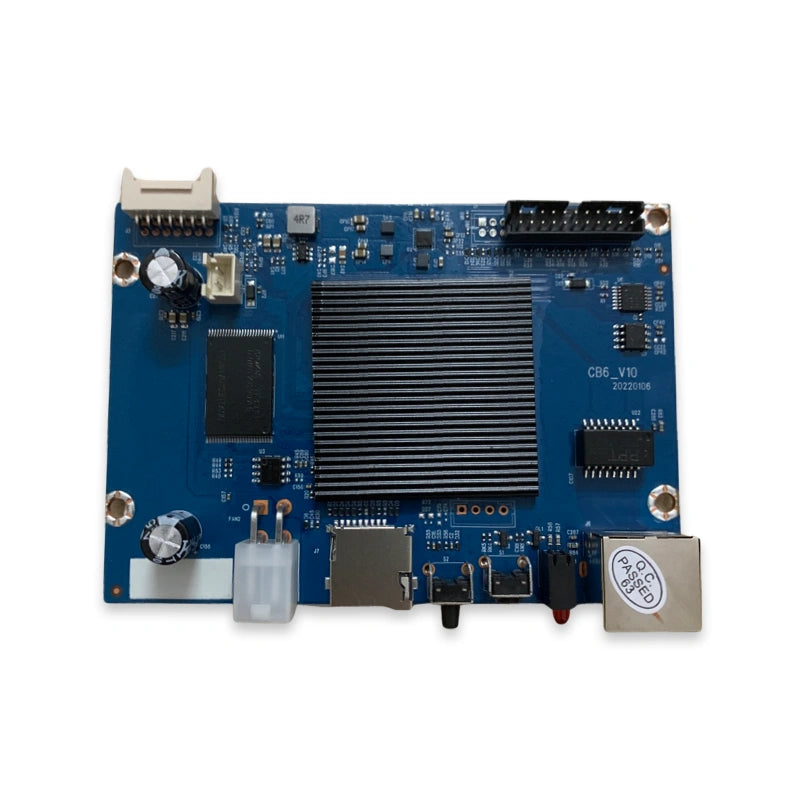

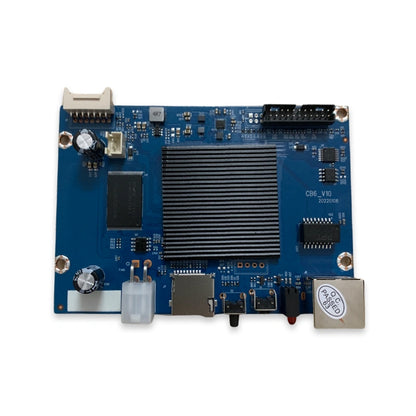

Whatsminer CB6 V10 Control Board for M20s, M30s, M31s+, M32, M50, M50s
The Whatsminer CB6 V10 control board is a brand-new PCBA replacement for the controller module used across a wide span of MicroBT air-cooled miners. It restores the management, network and hashboard-communication functions when the original controller has failed from heat, surge or firmware corruption.
The CB6 V10 ships ready to drop into the original control-board slot. Pair it with the matching signal cable and reload the firmware to bring the miner back online without sending the unit to a remote repair centre.
Specifications
| Parameter | Value |
|---|---|
| Part number | CB6 V10 |
| Condition | New |
| Category | Control board / controller / motherboard / PCBA |
| Brand | Whatsminer (MicroBT) |
| Compatibility | M20s, M21s, M30, M30s, M31s+, M32, M50, M50s |
| Material | PCB / PCBA |
| Weight | 0.15 kg |
| Function | Miner controller and hashboard-communication interface |
| Application | Repair, upgrade, or accessory replacement on Whatsminer ASICs |
| Status | Available |
Installation and firmware reload
Power off the miner and disconnect the AC supply before opening the controller bay. Remove the failed CB6, unplug the PSU signal cable and the three hashboard ribbon cables, then mount the new CB6 V10 in the same orientation. Re-flash the firmware that matches the host model (M30s, M31s+, M50, etc.) using the standard MicroBT loader before reconnecting the hashboards. Always verify ground continuity and that the PSU signal cable is fully seated before powering the unit back on.
Compatibility
The CB6 V10 is the air-cooled variant of the CB6 family. It supports M20s, M21s, M30, M30s, M31s+, M32, M50 and M50s. For immersion-cooled deployments, use the CB6 V7 variant, which exposes the connector layout suited to oil tanks. Always cross-check the model label printed on the original control board before ordering, since some early M30s production runs used a different controller revision.
Common failure symptoms
- Miner does not boot, no IP address assigned on the network
- Dashboard loads but reports "0 / 3 hashboards detected"
- Random reboots not linked to hashboard temperature or PSU voltage
- Ethernet port LEDs stay off even with a confirmed working switch and cable
- Firmware flash repeatedly fails or the controller hangs during boot sequence
Frequently asked questions
Does the CB6 V10 fit my M30s++ or M50s++?
The CB6 V10 is confirmed for M20s, M21s, M30, M30s, M31s+, M32, M50 and M50s. For M30s++, M50s++ or newer M60 hardware, confirm the controller revision on the failed board first — contact us with a photo if you are unsure.
Do I need a new signal cable too?
If the existing signal cable is intact, you can reuse it. If the failure was caused by a power surge or burnt connector, replace the signal cable at the same time to avoid re-damaging the new controller.
Will I need to re-flash the firmware?
Yes. A new control board ships blank or with generic firmware. Load the official MicroBT firmware that matches your miner model before connecting the hashboards.
Do you ship internationally?
Yes. We ship worldwide from our Shenzhen warehouses, with DDP available for US and EU customers.
