Antminer S19 / S19 Pro / T19 Overclocking Board – 18-30% Hashrate Improvement

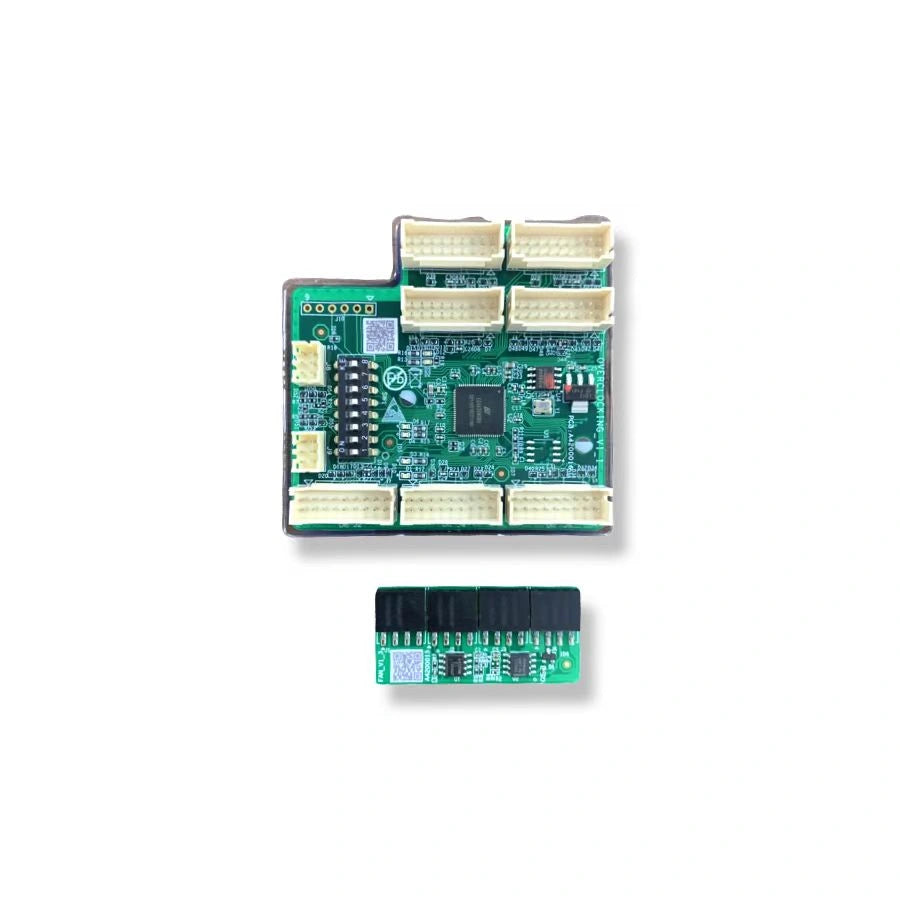

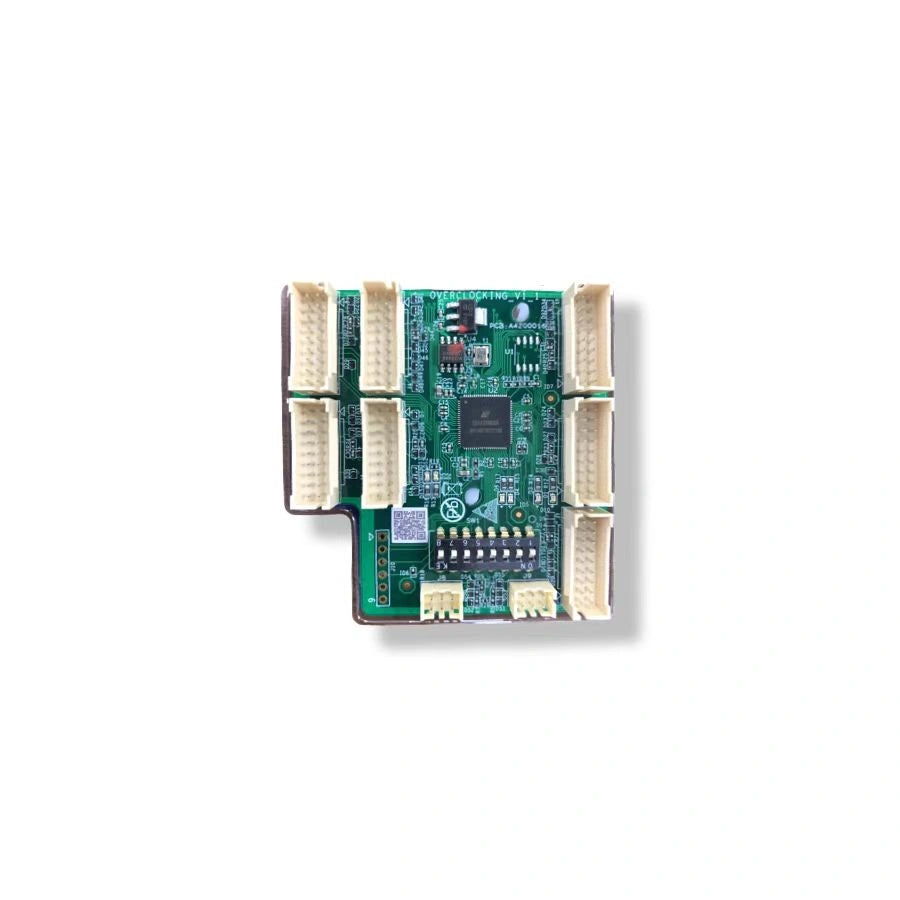

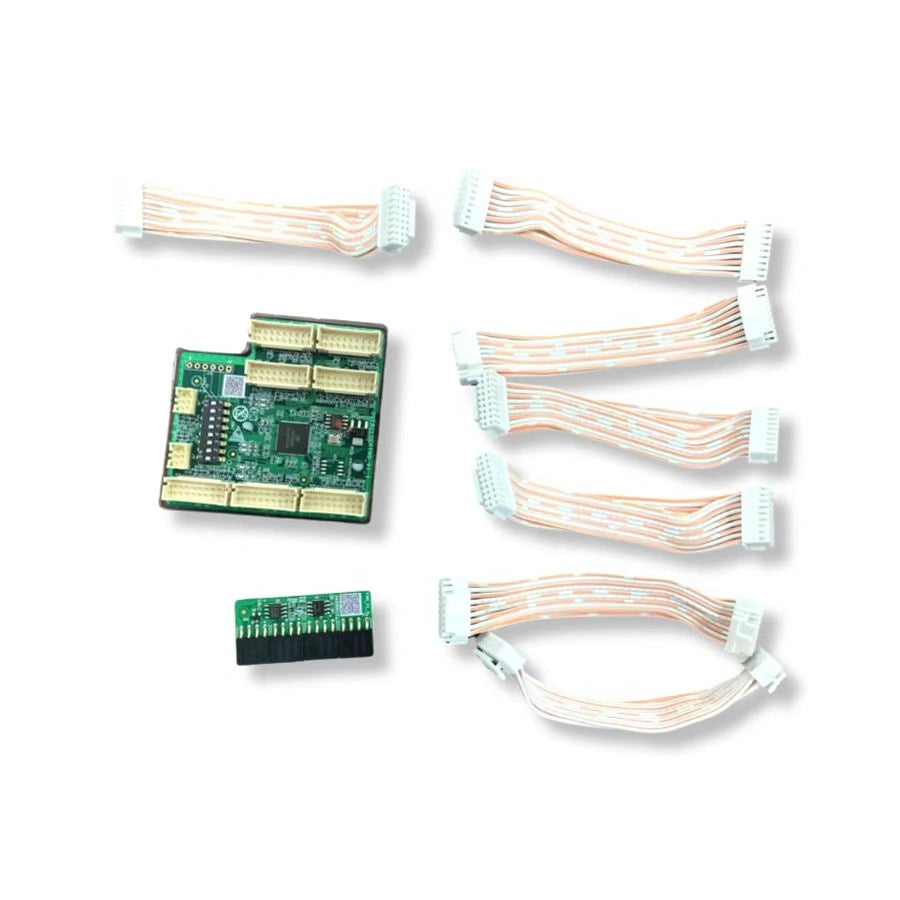

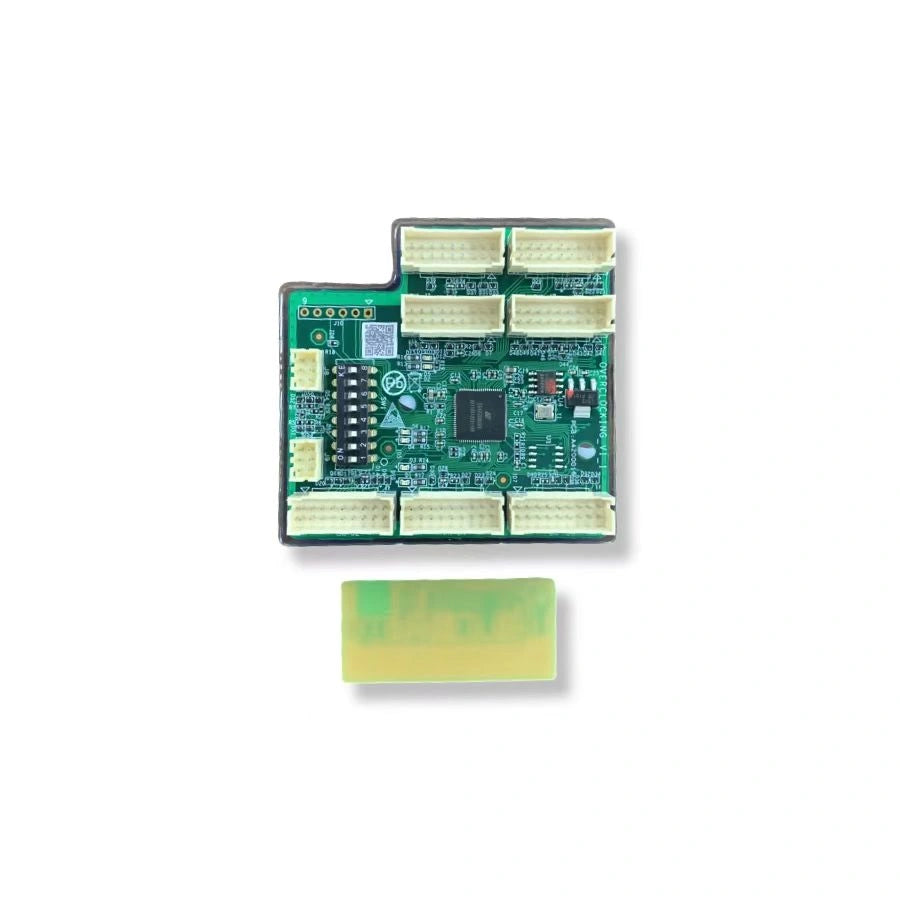

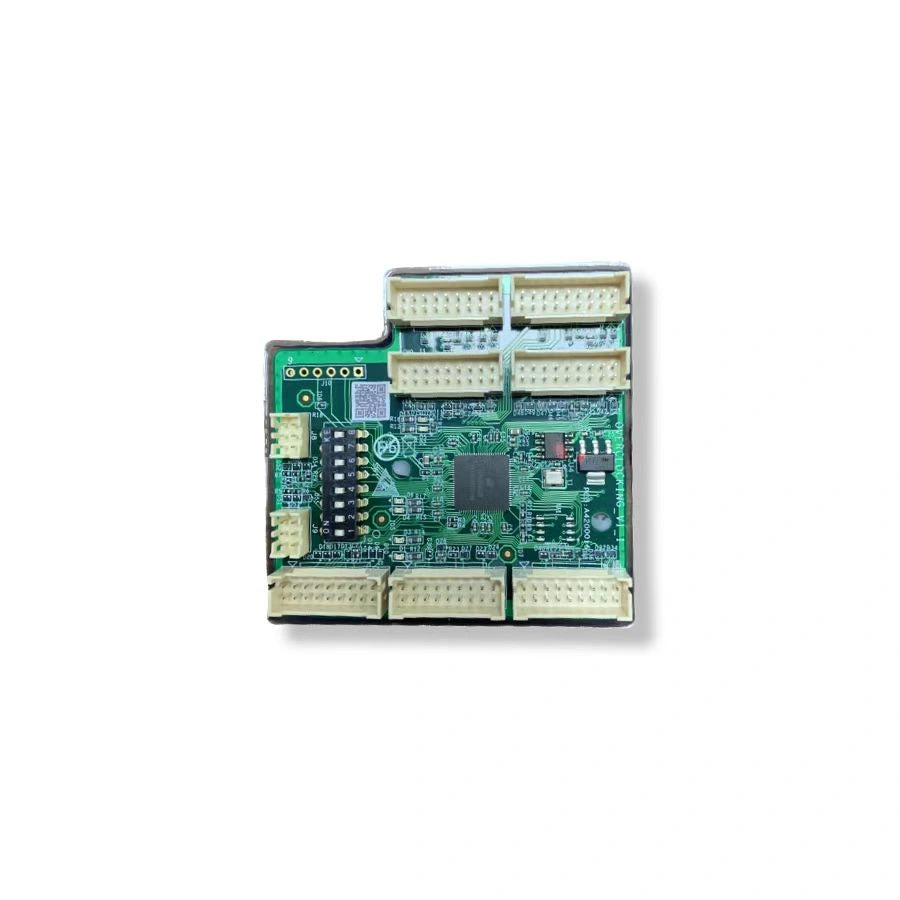

This overclocking board replaces the stock Antminer control board on S19, S19 Pro and T19 miners with a KINTEX-7 FPGA-based controller and proprietary overclocking firmware that increases hash rate by 18–30% through hardware-level voltage and frequency tuning. Unlike firmware-only overclocking, this approach provides tighter chip-level control and better stability. The kit includes the overclocking motherboard, 7× 18-pin IO data cables, 4× fan simulators and 1× 4-pin voltage regulation line.
Hardware vs Firmware Overclocking
Firmware-only overclocking pushes the stock control board beyond its designed operating parameters, which limits how far frequency and voltage can be safely raised. This dedicated overclocking board uses a KINTEX-7 FPGA as the main controller, giving it direct hardware control over each hashboard's voltage and frequency domains — enabling higher, more stable overclocks with less risk of chip damage. The board mounts in the miner's top housing and connects to the hashboards through the included 18-pin cables.
Requirements & Installation
Good heat dissipation is essential — oil cooling, liquid cooling or a low-ambient-temperature environment is recommended for sustained overclocked operation. The control board must meet AMCB07_4X1_4F_S specifications. Install the overclocking board in the top housing, connect the 7 data cables to the hashboards, plug in the fan simulators and voltage regulation line. Verify firmware compatibility before powering on. Not all firmware versions have been extensively tested.
Overclocking Board Kit Contents
| Item | Details |
|---|---|
| Overclocking Motherboard | KINTEX-7 FPGA controller |
| IO Data Cables | 7× 18-pin |
| Fan Simulators | 4× 4-pin |
| Voltage Regulation Line | 1× 4-pin |
| Compatible Miners | Antminer S19, S19 Pro, T19 |
| Hashrate Boost | +18–30% |
| Board Spec | AMCB07_4X1_4F_S required |
| Weight | 0.15kg |
| Condition | New |
