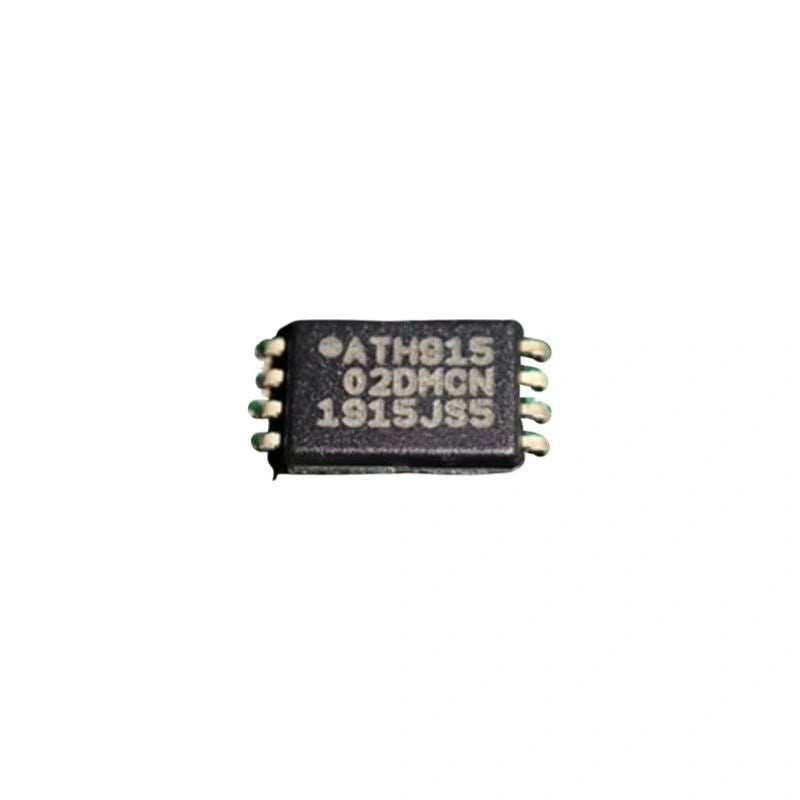

  • ATH915 AT24C02D-XHM-T 02DMCN Hash board Repair EEPROM for Antminer
  • ATH915 AT24C02D-XHM-T 02DMCN Hashboard Repair EEPROM Serial TSSOP IC for Antminer S9k S17 T17 S19 T19
  • ATH915 AT24C02D-XHM-T 02DMCN Hash board Repair EEPROM for Antminer
  • AT24C02D two-wire serial EEPROM featuring 256*8 block and I²C protocol
  • AT24C02D-XHM-T 02DMCN Hash board Repair EEPROM for Antminer
1 5

ATH915 AT24C02D-XHM-T 02DMCN Hashboard Repair EEPROM Serial TSSOP IC for Antminer S9k S17 T17 S19 T19

$0.92 USD
$0.92 USD
Sale Sold out
Shipping calculated at checkout.
Get Business Pricing

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.
Secure checkout
SSL encryption & invoicing options
Worldwide shipping
Export-ready customs documentation
QC-tested spare parts
Specialized in ASIC miner hardware
Technical support
Assistance from mining engineers

Have questions about this product? Our team is here to help — just reach out on WhatsApp.

💬 Contact Us on WhatsApp

About the Product

Premium Hash Board EEPROM for Reliable Mining Performance

Ensure seamless operation of your Antminer S19PRO, S19+, T9+, or S17 with the ATH91502DMCN, a high-performance 2Kbit serial EEPROM designed specifically for hash board memory storage. This industrial-grade chip provides stable firmware retention, ultra-low power consumption (1mA active, 0.8μA standby), and noise-resistant Schmitt triggers for reliable operation in demanding mining environments.



Ultra-Low Power 2Kbit EEPROM with 1M Write Cycles & 100-Year Retention

Built for crypto mining efficiency, this EEPROM supports 400kHz (1.7V) and 1MHz (2.5V) I²C speeds, ensuring fast data access for ASIC miner configurations. With 1,000,000 write cycles and 100-year data retention, it’s the ideal replacement chip for failed or corrupted memory modules.

Key benefits:
✔ Hardware write protection – Prevent accidental firmware corruption
✔ 8-byte page write mode – Faster partial updates
✔ Self-timed 5ms write cycle – No delays in mining operations
✔ 1.7V-3.6V wide voltage range – Compatible with various mining rigs

Upgrade your Antminer’s reliability with this durable, high-endurance EEPROM—essential for minimizing downtime and maximizing hash rate stability.

ATH915 AT24C02D-XHM-T Specifications Table:

Feature Specification
Memory Size 2Kbit (256x8)
Compatibility Antminer S19PRO, S19+, T9+, S17
Interface I²C (400kHz @1.7V, 1MHz @2.5V)
Operating Voltage 1.7V - 3.6V
Write Endurance 1,000,000 cycles
Data Retention 100 years
Standby Current 0.8 μA (max)
Active Current 1 mA (max)
Write Cycle Time 5ms (max)
Package Type 8-lead TSSOP

International Customers Please Note:

This product ships from China. Please be aware that your order may be subject to import taxes, customs duties, and fees levied by the destination country once the shipment arrives. These charges are the customer's responsibility and are not included in the product price or shipping cost. We are unable to predict what these fees may be, as they vary by country.
