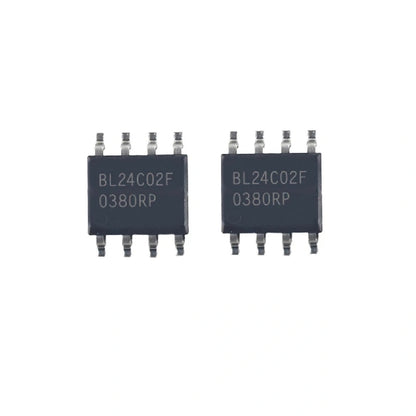

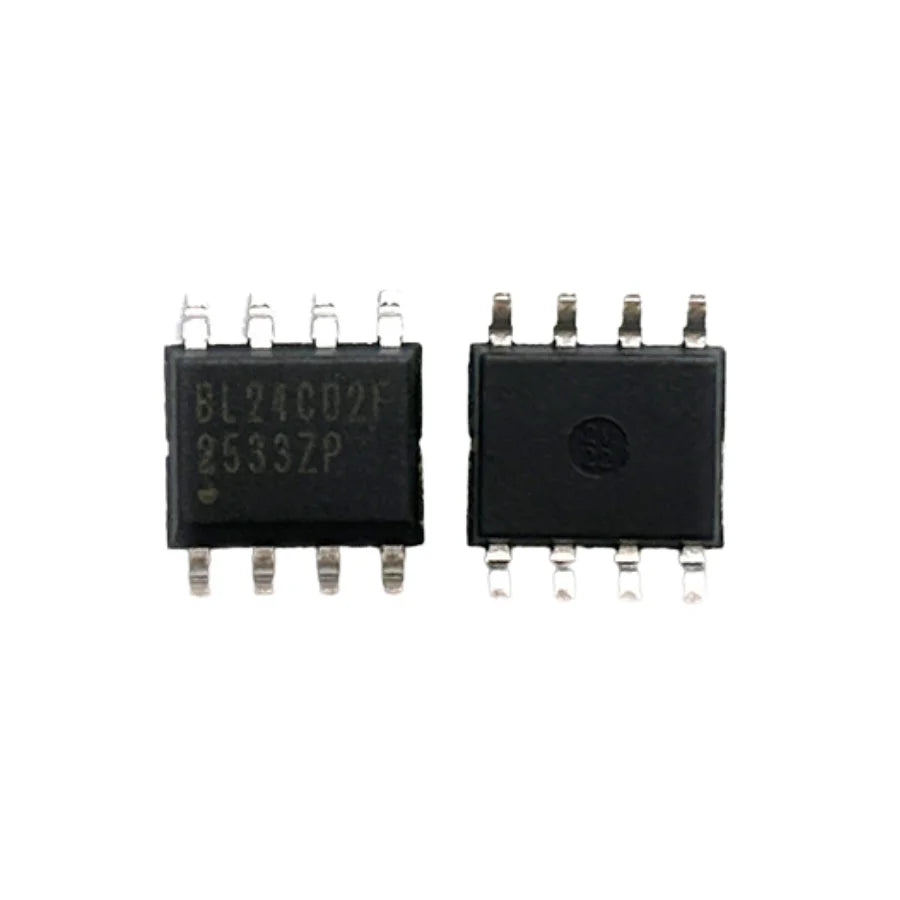

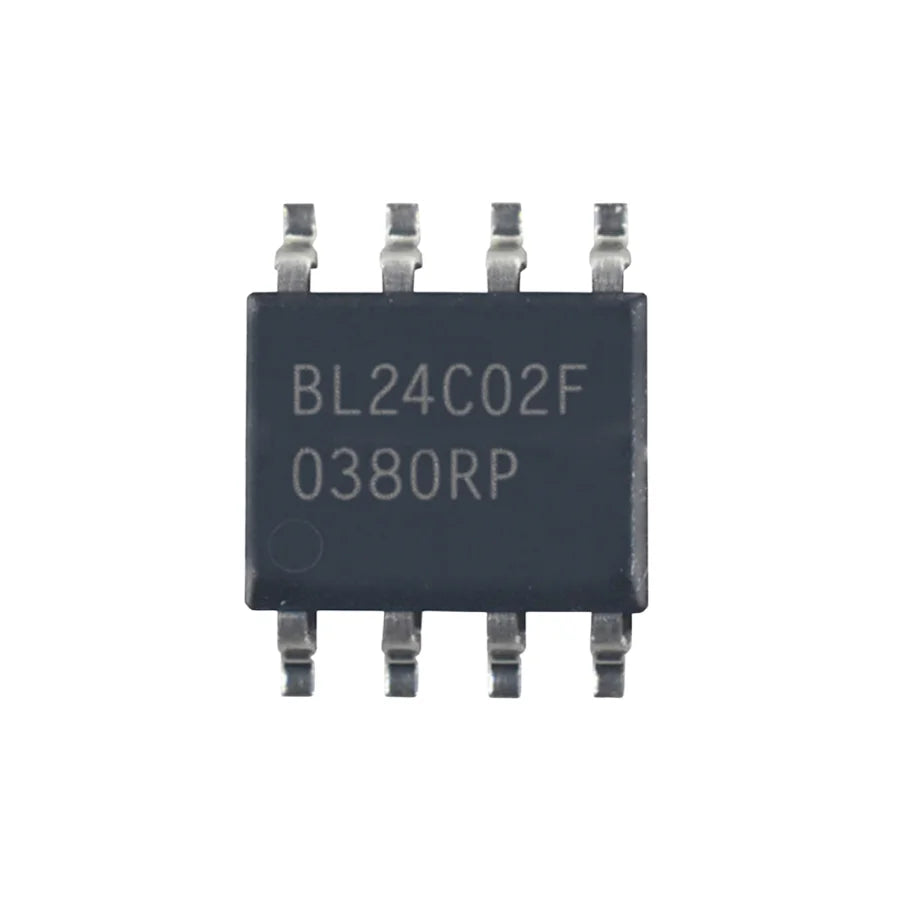

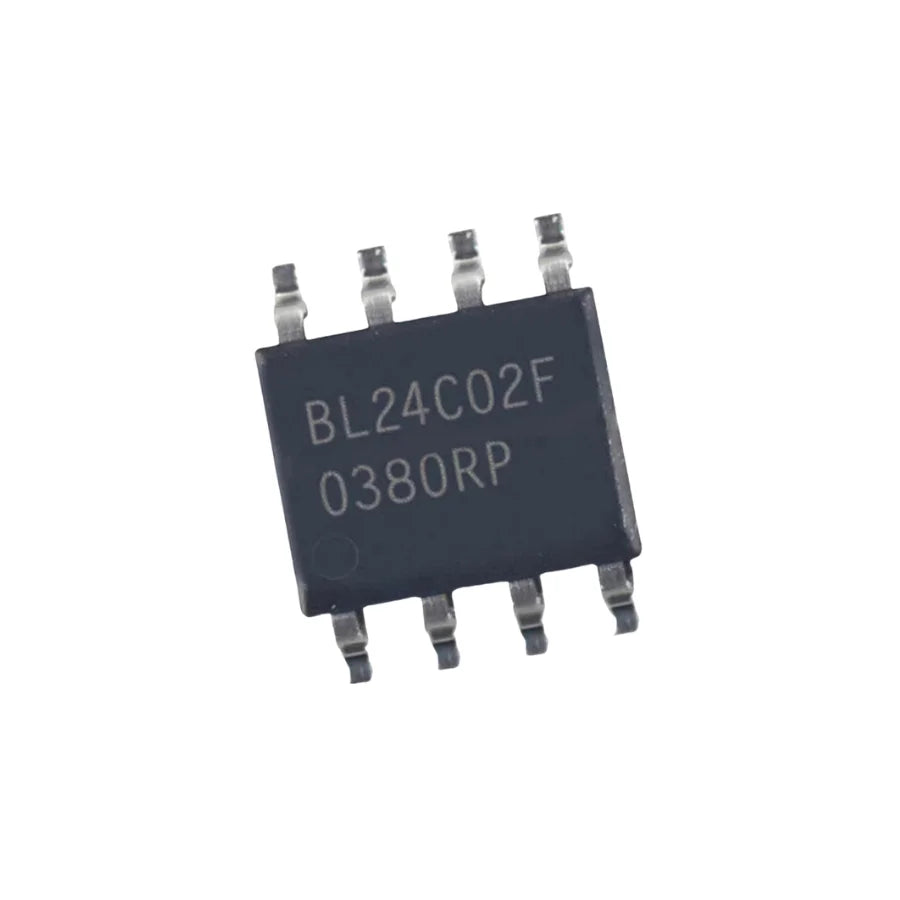

BL24C02F EEPROM Memory IC for Whatsminer M30 M50 Hash Boards
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
BL24C02F 2Kb EEPROM for Whatsminer M30/M50 Hash Board Data Storage
The BL24C02F is a 2Kb serial EEPROM widely used on Whatsminer M30 and M50 hash boards for configuration storage, calibration data retention, and secure device parameter management. Its low-power architecture and high-speed I²C interface make it suitable for continuous operation in industrial mining environments.
Designed for reliable non-volatile memory storage, the BL24C02F supports 1MHz fast-mode operation, hardware write protection, and long data retention, enabling stable performance during hash board repair and refurbishment procedures.
Key Features
- 2Kb (256 × 8-bit) memory density
- I²C-compatible serial interface
- Supports fast-mode up to 1MHz
- Low power and wide voltage operation
- 16-byte page write buffer for efficient programming
- Hardware write protection for data integrity
- High endurance and long data retention
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | BL24C02F |
| Memory Density | 2Kb (256 bytes) |
| Interface | I²C (2-wire) |
| Page Size | 16 bytes |
| Max Clock Frequency | 1MHz |
| Write Cycle Time | 3 ms (byte/page) |
| Endurance | 1,000,000 program/erase cycles |
| Data Retention | 100 years |
| Write Protection | Hardware write protect pin |
| Input Filtering | Schmitt trigger with noise rejection |
| ESD Protection (HBM) | 6000V |
Typical Applications
- Whatsminer M30/M50 hash board memory storage
- Calibration and configuration parameter retention
- Embedded systems and industrial controllers
- Data logging and system identification
- Low-power serial memory applications
