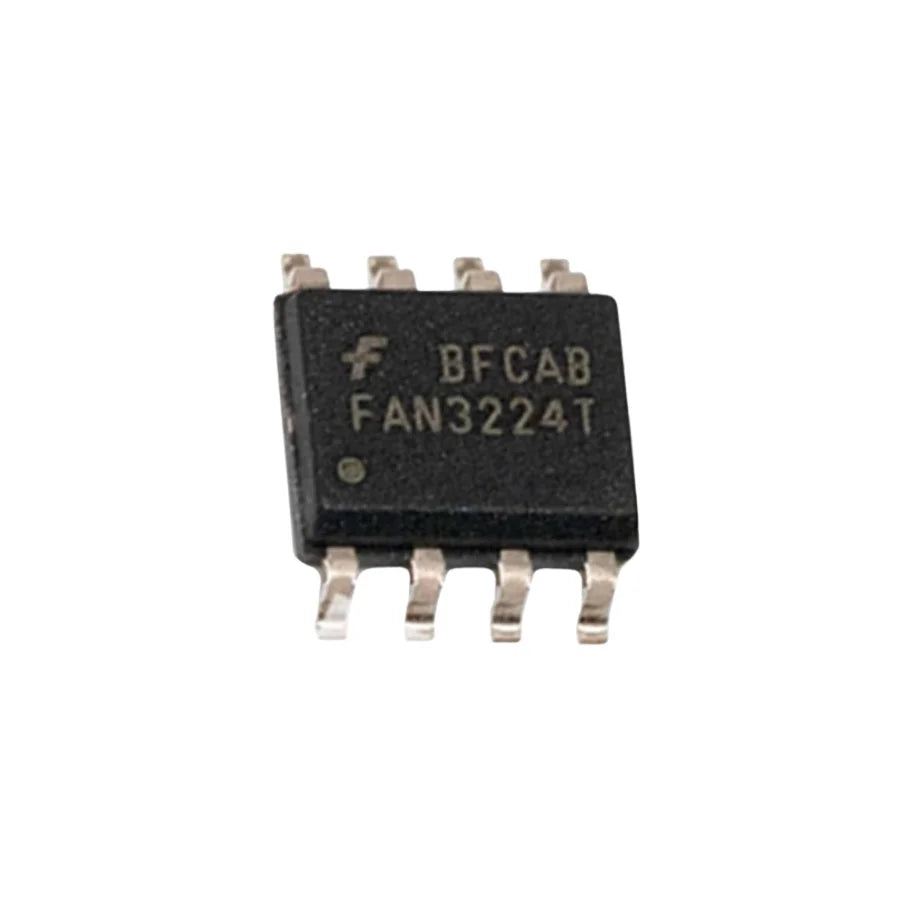

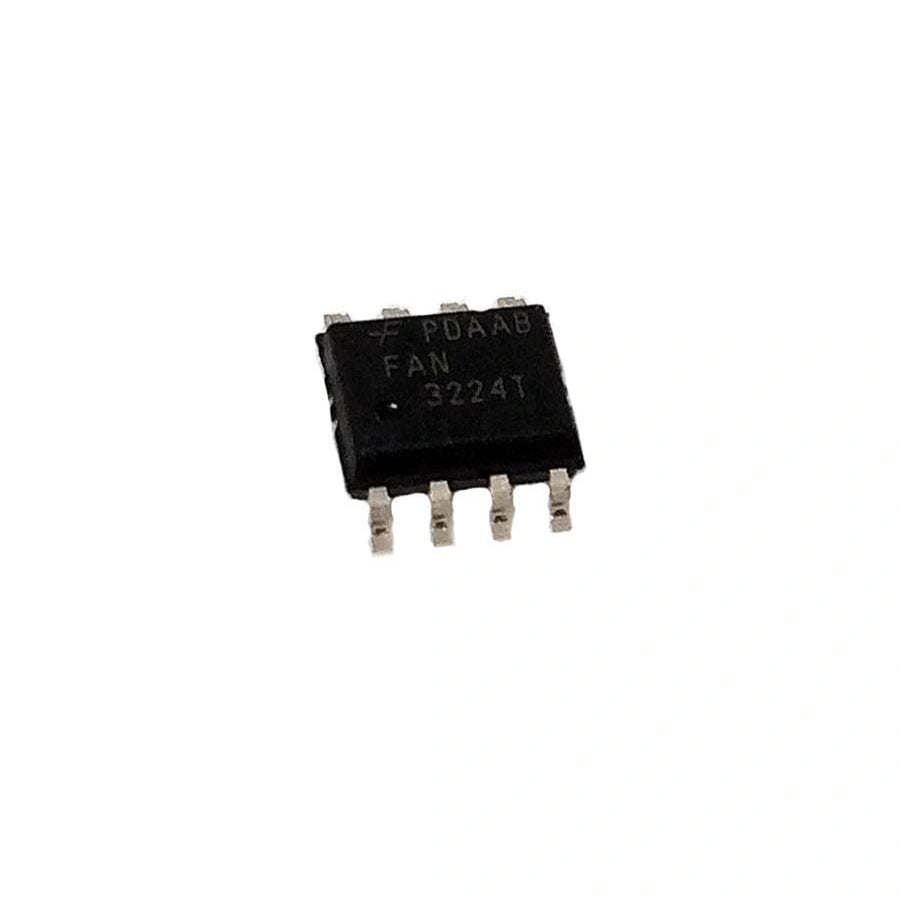

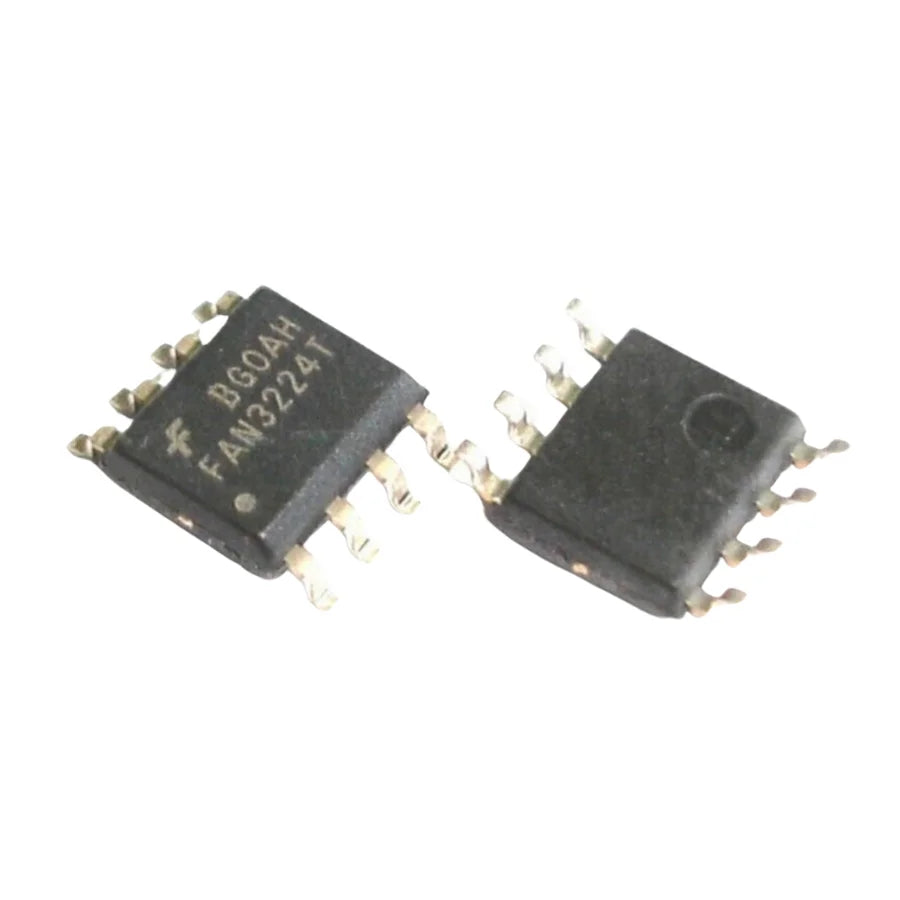

FAN3224T FAN3224TMX Gate Driver APW7 G1286 Power Supply
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
Enhance PSU Performance with FAN3224 Gate Driver Replacement
Upgrade the performance and reliability of your Bitmain APW7 and Innosilicon G1286 power supply units (PSUs) with the FAN3224 Gate Driver Replacement. Specifically designed for low-side switching applications, this high-quality gate driver delivers a powerful peak current pulse for optimal PSU performance. With its internal features ensuring safe voltage operation and non-inverting outputs, this replacement part is essential for maintaining efficient mining operations.
Reliable Solution for Bitmain APW7 and Innosilicon G1286 PSU Repairs
The FAN3224 Gate Driver Replacement features two non-inverting outputs, each equipped with its own enable pin. Internal resistors linked to the inputs keep the MOSFETs shut off when inputs are not connected, ensuring safety and preventing damage to your PSUs. With a wide supply voltage range and fast rise and fall times, this gate driver provides reliable and responsive control.
FAN3224T Technical Features:
| Product | MOSFET Gate Drivers |
| Type | Low-Side |
| Mounting Style | SMD/SMT |
| Package / Case | SOIC-8 |
| Number of Drivers | 2 Driver |
| Number of Outputs | 2 Output |
| Supply Voltage - Min | 4.5 V |
| Supply Voltage - Max | 18 V |
| Rise Time | 20 ns |
| Fall Time | 17 ns |
| Min. Operating Temperature | - 40 C |
| Max. Operating Temperature | + 125 C |
| Series | FAN3224T_F085 |
| Logic Type | TTL |
| Moisture Sensitive | Yes |
| Operating Supply Current | 700 uA |
| Product Type | Gate Drivers |
| Propagation Delay - Max | 30 ns |
| Subcategory | PMIC - Power Management ICs |
| Technology | Si |
