FDV301N N-Channel MOSFET Whatsminer CB2 V8 Control Board

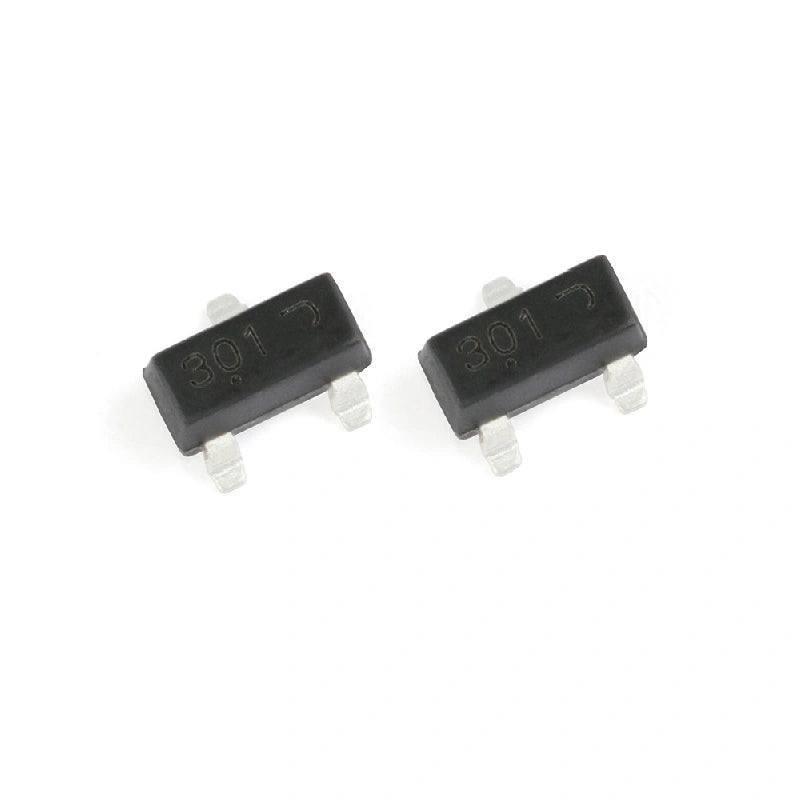

FDV301N N-Channel Logic-Level MOSFET – Whatsminer CB2 V8

Upgrade the performance of your Whatsminer CB2 V8 control board with the FDV301N N-channel logic-level enhancement-mode field-effect transistor. Manufactured using advanced DMOS technology, this MOSFET is designed to deliver optimal functionality and enhance the overall performance of your control board across signal-level switching tasks.

The FDV301N is specifically crafted to minimize on-resistance, offering an efficient replacement for multiple digital transistors with varying bias resistor values. With a continuous current rating of 0.22A and a peak current of 0.5A, this MOSFET provides reliable and consistent operation for low-current signal-level applications on the CB2 V8 control board.

Typical Use in CB2 V8 Control Board Repair

• Failed signal-level MOSFET replacement — drop-in for damaged FDV301N on control board.
• Digital transistor replacement — substitutes multiple digital transistors with varying bias values.
• Production refurbishment — bulk MOSFET inventory for CB2 V8 control board rebuild lines.
• General logic-level switching — low-power signal control applications across embedded designs.

FDV301N Specifications

FAQ — FDV301N Logic-Level MOSFET

Q: Logic-level vs standard MOSFET — what's the difference?
A: Logic-level MOSFETs fully turn on with low gate voltages (2.7V / 3.3V / 5V) — compatible with MCU GPIO without level shifters. Standard MOSFETs need higher gate voltages (typically 10V+) to reach low RDS(on). For signal-level switching driven directly by an MCU, use logic-level.

Q: Why 4Ω RDS(on) — isn't that high?
A: For low-current signal switching (0.22A), 4Ω is acceptable — voltage drop is only ~1V at full rated current. For high-current power switching, you'd want low-mΩ MOSFETs. The FDV301N is designed for signal-level applications, not power switching.

Q: Can I substitute another logic-level MOSFET?
A: Functionally — any similar logic-level N-channel MOSFET in matching SOT-23 package with comparable current rating works. However, for OEM-spec CB2 V8 repair, stick with FDV301N to preserve original timing / behavior.

Q: Bulk pricing for control board repair shops?
A: Yes — email contact@lys-sz.com with your volume for tier pricing on FDV301N by the reel.
