ME6214C18M5G P4RE Innosilicon T1 Hash Board 1.8V LDO Regulator
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

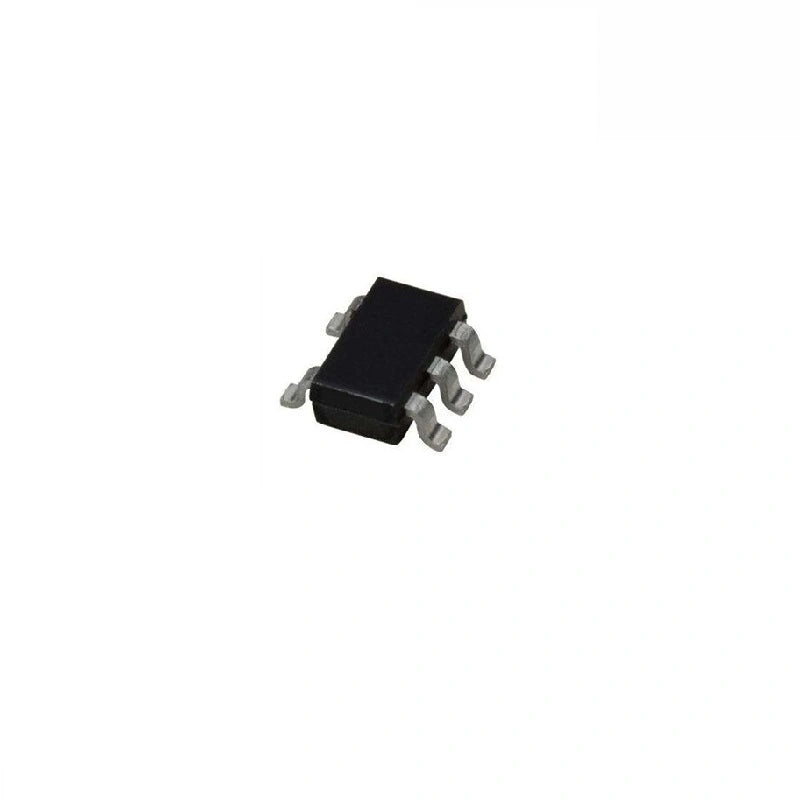

ME6214C18M5G P4RE 1.8V LDO Regulator for Innosilicon T1 Hashboard
The ME6214C18M5G (silk-marked P4RE) is a 1.8 V low-dropout linear regulator used on the Innosilicon T1 hashboard for ASIC chip core power supply. Built-in enable control, current limiting and foldback short-circuit protection deliver safe, reliable operation under continuous mining load.
An enable-control function also automatically discharges the output capacitor on shutdown — useful for clean power-cycle behaviour. Output current is 300 mA with a 600 mV dropout at 200 mA, and the chip supports up to 18 V input — covering typical hashboard housekeeping rails.
Typical Failure Modes Solved
- ASIC core rail at 0 V — failed LDO, no chip activity.
- Short-circuit trip — downstream load fault triggers foldback; verify load before swapping.
- Thermal shutdown — LDO running hot; check input voltage + load current.
- Production refurbishment — bulk LDO stock for Innosilicon T1 rework lines.
ME6214C18M5G Specifications
| Feature | Specification |
|---|---|
| Part Number | ME6214C18M5G |
| Silkscreen | P4RE |
| Category | Linear voltage regulator (LDO) |
| Output Voltage | 1.8 V (fixed) |
| Output Current | 300 mA |
| Dropout Voltage | 600 mV @ 200 mA |
| Max Input Voltage | 18 V |
| Polarity | Positive |
| Protection | Current limit + foldback short-circuit + enable discharge |
| Compatible Boards | Innosilicon T1 hashboard |
| Condition | Brand New |
FAQ — ME6214C18M5G LDO
Q: 1.8V fixed — can I get other voltages?
A: The ME6214 series exists at multiple fixed voltages (1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V). The C18M5G suffix = 1.8 V output. Match the silk marking on your board to the right SKU.
Q: P4RE marking — same as ME6214C18M5G?
A: Yes — P4RE is the silkscreen identifier for the C18M5G version. Different production lots can show slight variation in the silk.
Q: Bulk pricing?
A: Yes — email contact@lys-sz.com.
