MP2019GN LDO Voltage Regulator for Hash Board and Power Supply Maintenance

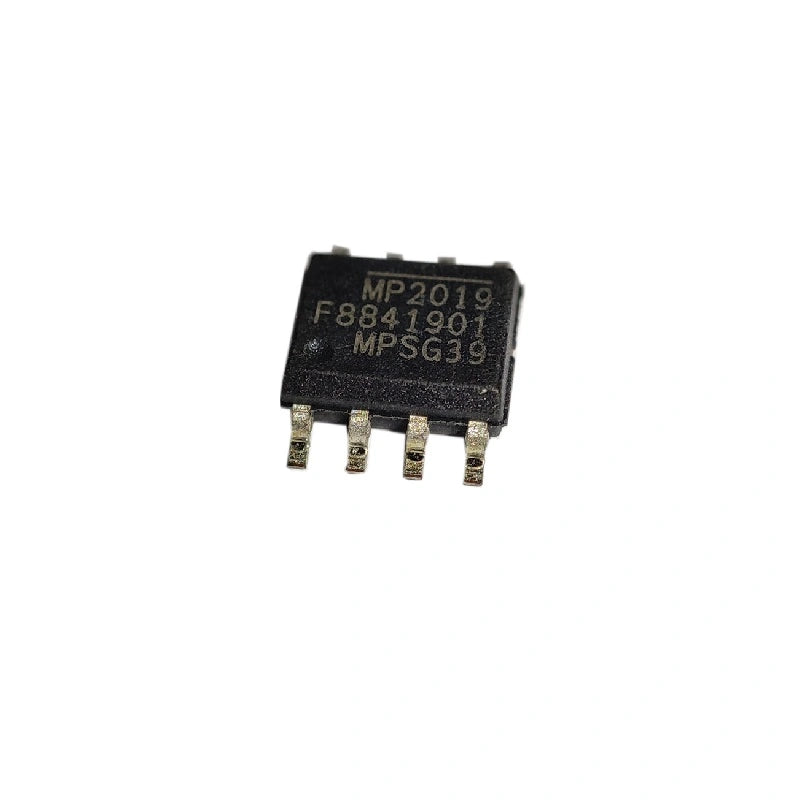

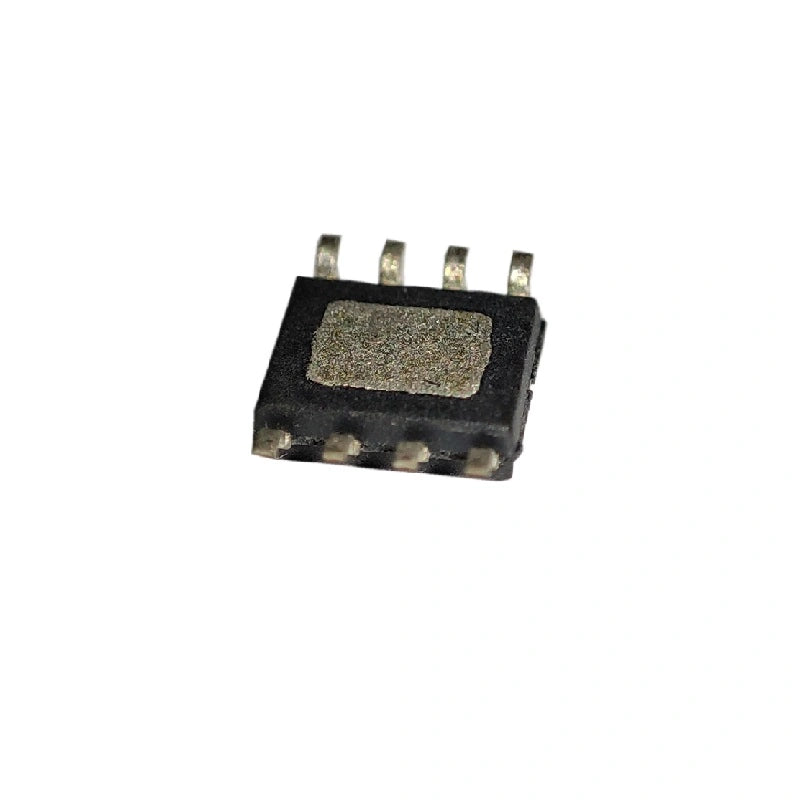

The MP2019GN LDO Voltage Regulator is a highly sought-after solution for hashboard and power supply maintenance, offered at a reasonable price. This authentic chip, packaged in SOP8, delivers reliable and adjustable output voltage regulation.
Optimize Power Management with the MP2019GN SOP8 Voltage Regulator Chip
With a maximum input voltage of 40V and an adjustable output voltage range from 1.2V to 15V, this voltage regulator provides flexibility for various applications. It features a current output of 300mA and a low quiescent current of 10uA, ensuring efficient power management.
MP2019GN Technical Features:
|
Product Category
|
LDO Voltage Regulators
|
|
Mounting Style
|
SMD/SMT
|
|
Package / Case
|
SOIC-8
|
|
Output Voltage
|
Adjustable
|
|
Output Current
|
300 mA
|
|
Number of Outputs
|
1 Output
|
|
Polarity
|
Positive
|
|
Quiescent Current
|
10 uA
|
|
Input Voltage MAX
|
40 V
|
|
Input Voltage MIN
|
3 V
|
|
Output Type
|
Adjustable
|
|
Minimum Operating Temperature
|
- 40 C
|
|
Maximum Operating Temperature
|
+ 125 C
|
|
Dropout Voltage
|
420 mV
|
|
Series
|
MP2019
|
|
Type
|
Linear Regulator
|
|
Dropout Voltage - Max
|
550 mV
|
|
Output Voltage Range
|
1.2 V to 15 V
|
|
PSRR / Ripple Rejection - Typ
|
51 dB
|
|
Voltage Regulation Accuracy
|
0.02
|
|
Line Regulation
|
1 mV
|
|
Load Regulation
|
1 mV
|
|
Moisture Sensitive
|
Yes
|
|
Pd - Power Dissipation
|
2.5 W
|
|
Subcategory
|
PMIC - Power Management ICs
|
|
Unit Weight
|
0.009150 oz
|
