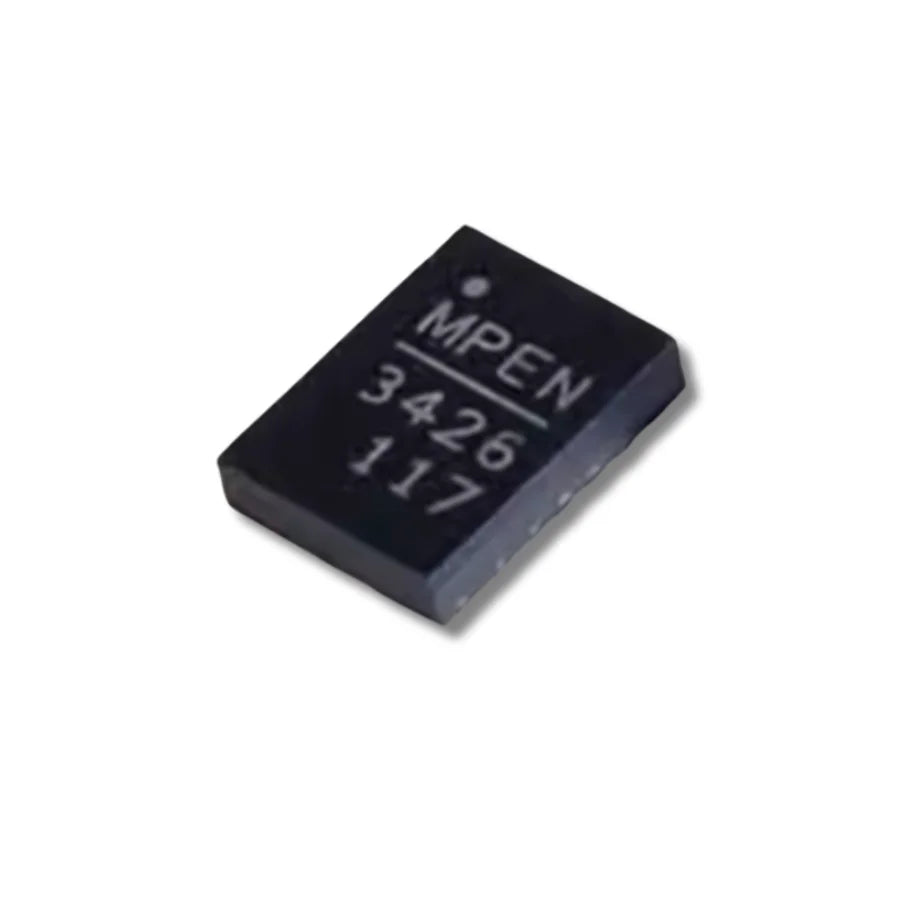

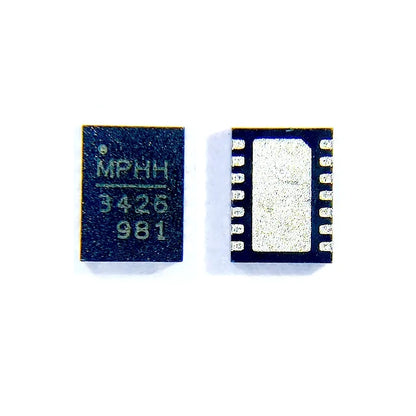

MP3426 MP3426DL-LF-Z Switching Voltage Regulator Step-Up Converter 6A for Antminer

$1.40 USD
$1.40 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

Enhance Performance with MP3426DL-LF-Z Antminer Switching Voltage Regulator


The MP3426DL-LF-Z is a highly efficient and responsive 6A, 90mΩ current-mode boost converter specifically designed for Antminer applications. With programmable switching frequency and Under-Voltage Lockout (UVLO), this voltage regulator offers exceptional performance and flexibility.

Efficient Boost Converter for Antminer - MP3426DL-LF-Z Switching Voltage Regulator

Operating from an input voltage as low as 3.2V, the MP3426DL-LF-Z can generate output voltages up to 35V, making it suitable for a wide range of Antminer devices. Its flexible external compensation pin enables users to customize their loop dynamics, ensuring optimal performance.

One of the key features of the MP3426DL-LF-Z is its programmable frequency of up to 2MHz, allowing for improved filtering and reduced noise. Additionally, the soft-start feature effectively reduces inrush current and can be easily programmed using an external capacitor. The device also provides reliable protection against over-current, over-heating, and under-voltage conditions, ensuring the safety and longevity of your Antminer.

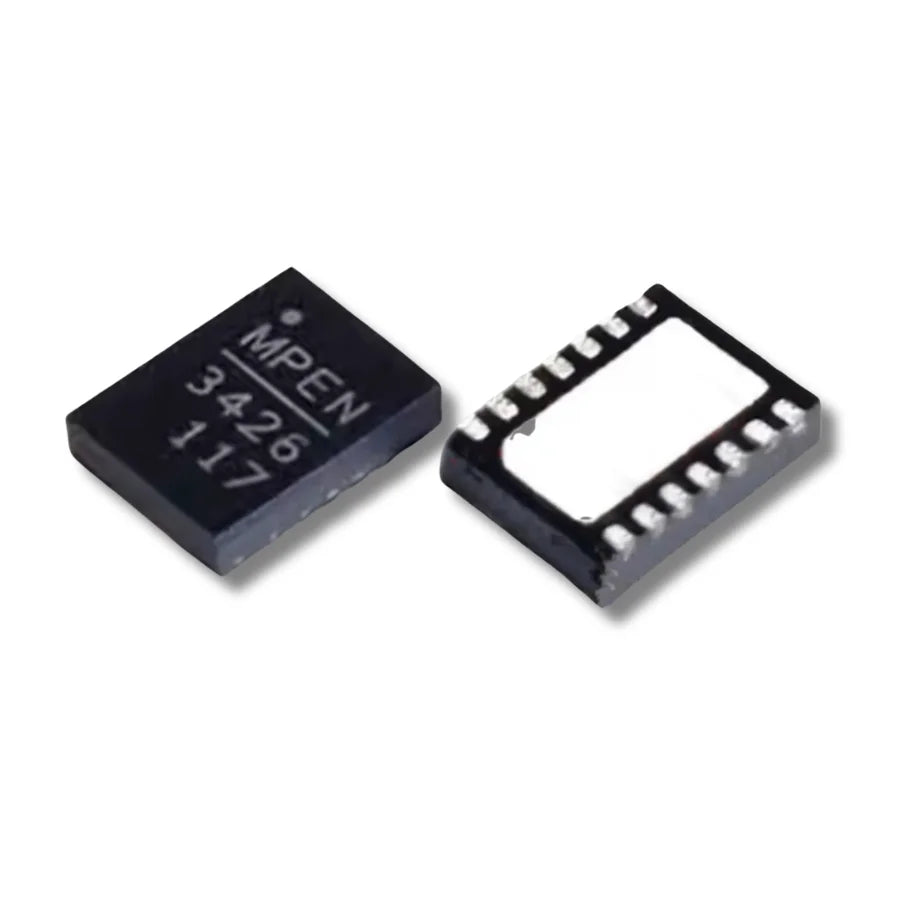

Packaged in a low-profile 14-pin 3mmx4mm QFN package with an exposed pad, the MP3426DL-LF-Z offers convenience and ease of integration into your system.

Technical Features:

Mounting Style SMD/SMT
Package / Case QFN-14
Topology Boost
Output Voltage 35 V
Output Current 6 A
Number of Outputs 1 Output
Input Voltage, Min 3.2 V
Input Voltage, Max 22 V
Switching Frequency 2 MHz
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 85 C
Series MP3426
Packaging Reel
Packaging Cut Tape
Packaging MouseReel
Brand Monolithic Power Systems (MPS)
Function Boost
Input Voltage 8.4 V
Operating Supply Current 650 uA
Product Voltage Regulators
Product Type Switching Voltage Regulators
Shutdown Shutdown
Subcategory PMIC - Power Management ICs
Supply Voltage - Min 3.2 V
Type Step-Up Converter
Unit Weight 0.001136 oz
