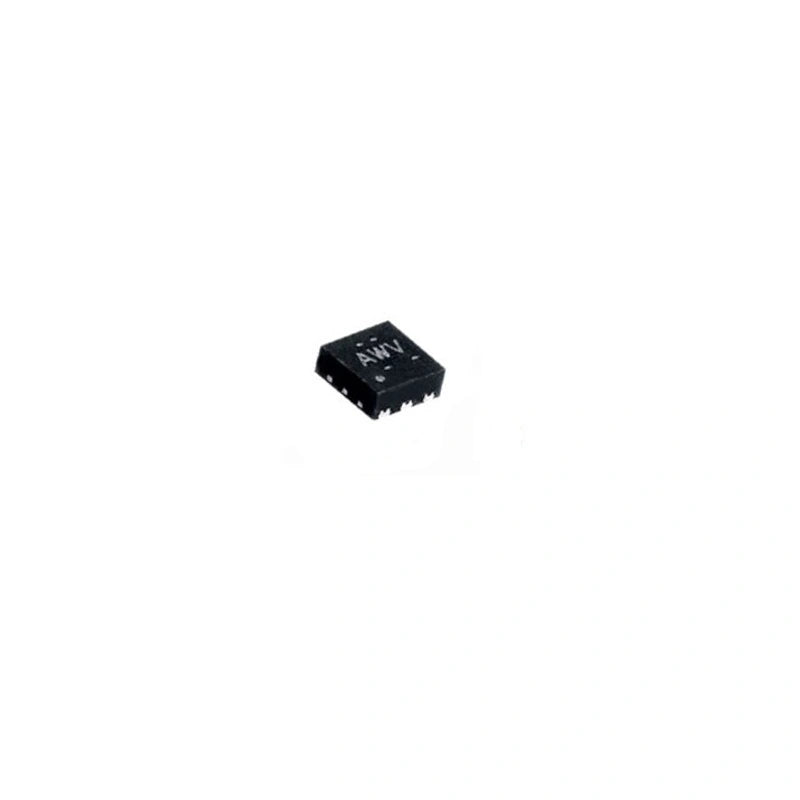

NCP114AMX075TCG 0.75V LDO Regulator for Avalon ASIC Hash Board

NCP114AMX075TCG 0.75V LDO Regulator for Avalon ASIC Hash Boards

The NCP114AMX075TCG is a 0.75V low-dropout (LDO) voltage regulator used as the core power supply for Avalon ASIC chips on models such as 1047, 1066, 921, and 821 hash boards. It delivers stable low-voltage output with built-in protection features to ensure reliable and efficient miner operation.

Designed for Power Stability & ASIC Protection

This LDO regulator supports input voltages from 1.7V to 5.5V and provides a regulated 750mV output at up to 300mA. Integrated protection functions include short-circuit protection, overvoltage shutdown, overtemperature shutdown, and reverse connection protection, helping safeguard the ASIC core against damage.

Technical Specifications

Key Features

• 0.75V output for Avalon ASIC core supply
• Short-circuit & overvoltage shutdown protection
• Thermal shutdown & reverse connection protection
• Low quiescent current for power efficiency
• CMOS design for low dropout operation
• SMD/SMT packaging for automated assembly

Compatible Miner Models

• Avalon 1047
• Avalon 1066
• Avalon 921
• Avalon 821
