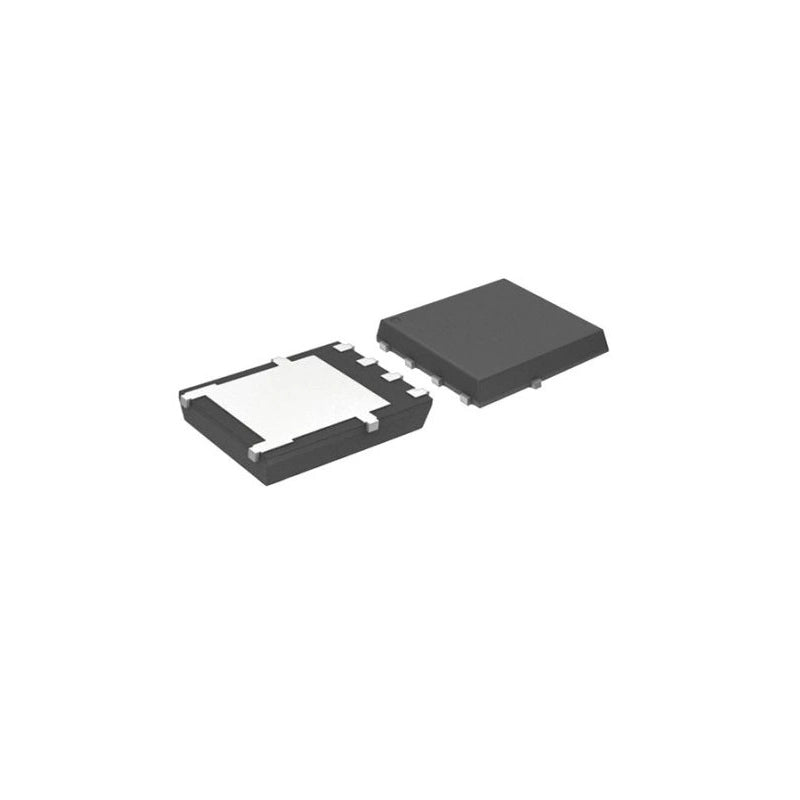

NVMFS5C404N 5C404N Power MOSFET 40V 378A N-Channel Bitmain APW7 PSU repair
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
High-Performance NVMFS5C404N Power MOSFET for Efficient Power Conversion
The NVMFS5C404N Power MOSFET is a cutting-edge solution designed for high-power applications requiring efficient power conversion. With its compact design and advanced features, this N-Channel MOSFET delivers exceptional performance and reliability.
Key Features and Specifications
Featuring a small footprint of 5x6 mm, this power MOSFET is ideal for space-constrained designs without compromising on power output. Its low RDS(on) ensures minimal conduction losses, resulting in improved energy efficiency. Additionally, the low QG and capacitance minimize driver losses, enabling optimal system performance.
The NVMFS5C404NWF variant of this MOSFET offers a wettable flank option, enhancing optical inspection for quality control purposes. It is AEC-Q101 qualified and PPAP capable, ensuring its suitability for automotive applications. Furthermore, this device is lead-free, RoHS compliant, and environmentally friendly.
Technical Features:
| Feature | Value |
|---|---|
| Drain-to-Source Voltage | 40V |
| Gate-to-Source Voltage | ±20V |
| Continuous Drain Current | 378A (TC = 25°C) |
| Power Dissipation | 200W (TC = 25°C) |
| Continuous Drain Current | 53A (TA = 25°C) |
| Power Dissipation | 3.9W (TA = 25°C) |
| Pulsed Drain Current | 900A (TA = 25°C) |
| Operating Temperature | -55°C to +175°C |
| Source Current | 191A |
| Single Pulse Avalanche Energy | 907mJ |
