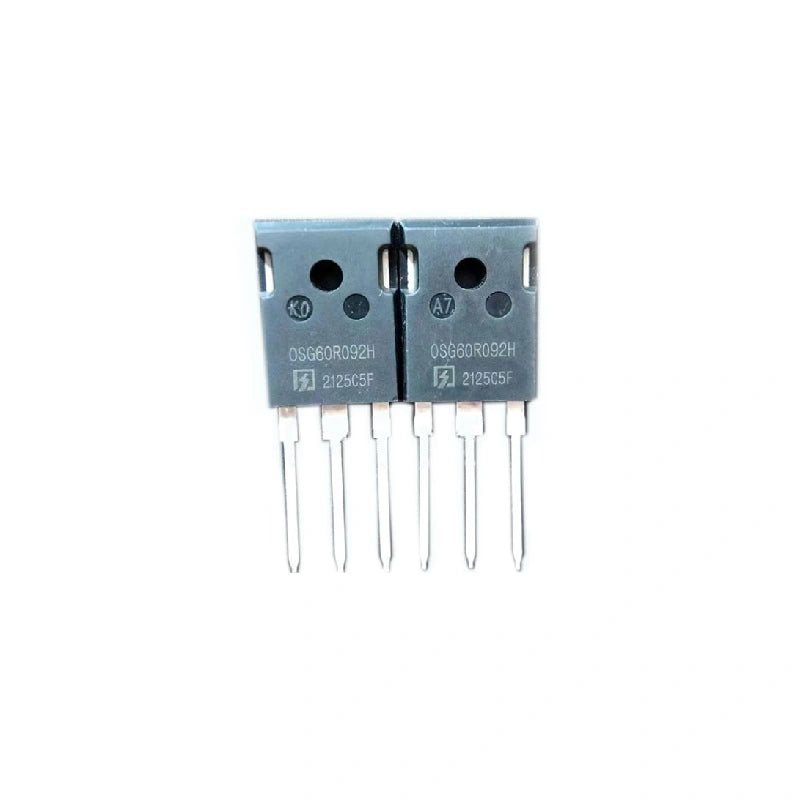

OSG60R092H MOSFET 37A 600V High Voltage Switching Power Supply MOS Tube

OSG60R092H MOSFET 600V 37A – High-Voltage Primary Switching for Mining PSU Repair

The OSG60R092H is an N-channel MOSFET rated at 600V / 37A in a TO-247 package, designed for primary-side switching in mining power supplies. It delivers low Rds(on) with extremely low switching losses and excellent uniformity across production lots — ensuring consistent performance when replacing failed devices in half-bridge and full-bridge PSU topologies.

Why Switching Loss Matters

Mining PSUs run their primary MOSFETs continuously at high frequency and high current. Every switching transition dissipates energy — the lower the switching loss, the less heat generated and the longer the component lasts. The OSG60R092H's optimised FOM (Rds(on) × Qg) reduces total losses across the operating range, making it a reliable choice for PSU repair where long-term durability is critical.

Replacement Procedure

Disconnect mains and discharge bulk capacitors — primary bus exceeds 400V DC. Locate the failed MOSFET near the main transformer heatsink. Inspect both half-bridge devices. Remove hardware, desolder leads, clean through-holes. Install the new OSG60R092H with correct orientation, apply thermal compound and torque. Power through a variac under progressive load. Replace both as a pair if either is suspect.

OSG60R092H MOSFET Specifications

Related 600V Class Power MOSFETs for PSU Repair

• JS60R080WUCR 47A 600V TO-247 MOSFET
• CRJQ30N60G2F 600V 83A MOSFET – ASIC Miner PSU
• IPW60R060P7 600V 48A MOSFET – Whatsminer PSU
• IPW65R029CFD7 MOSFET – Whatsminer P222B / P221B

Repairing mining PSUs in volume? Contact us at contact@lys-sz.com for matched MOSFET pairs and bulk pricing.

Worldwide shipping from our Shenzhen warehouse.
