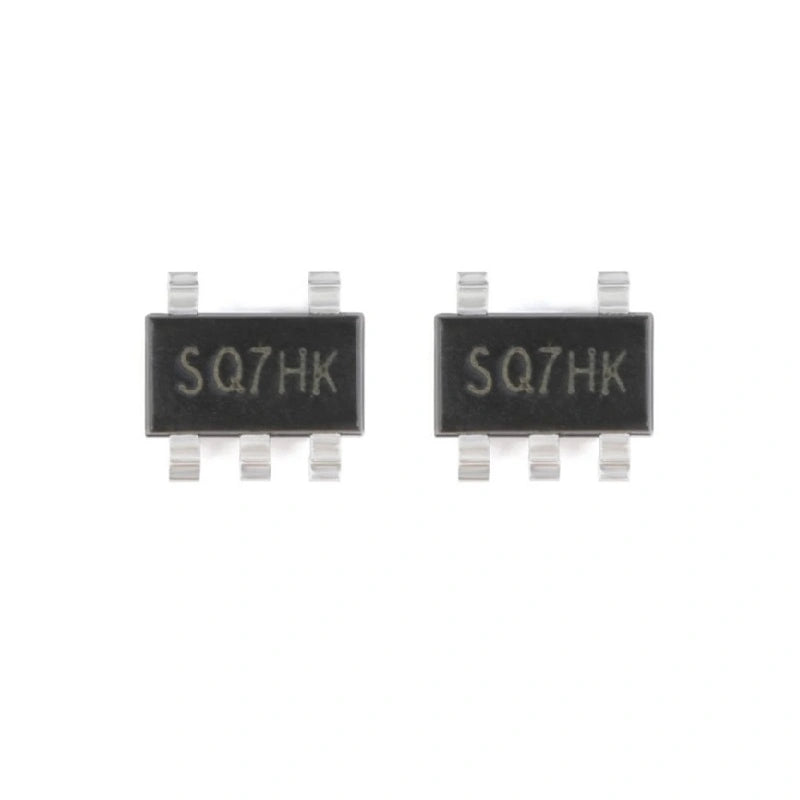

SGM2036-ADJ SQ7JK LDO 0.8V - Low-Power Linear Regulator for Antminer Iceriver Hash Board

$0.24 USD
$0.24 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

Efficient SGM2036-ADJ SQ7JK LDO 0.8V Linear Regulator for Antminer Hash Board

The SGM2036-ADJ SQ7JK LDO 0.8V is a highly efficient linear voltage regulator specifically designed for use on Antminer hash boards, including models T15, S17, S17+, S17PRO, T17, S19, S19+, S19JPRO, and L7 and Iceriver KS3M KS3L KS5L. This low-power, low-dropout (LDO) regulator operates within an input voltage range of 1.6V to 5.5V, delivering an output current of up to 300mA. It is the ideal choice for low voltage and low power applications in the mining industry.

Optimize Power Efficiency with the SGM2036-ADJ SQ7JK LDO 0.8V Linear Regulator

With its low dropout voltage and thermal overload protection, the SGM2036-ADJ ensures stable and reliable performance. The built-in fold back protection circuit adds an extra layer of security. Notably, the regulator features a short auto-discharge function, adjustable output voltage, and high output voltage accuracy, making it versatile and adaptable to various mining setups.

Operating within a wide temperature range of -40℃ to +85℃, this LDO regulator is built to withstand demanding mining conditions. Its low supply current of 20μA and logic-controlled shutdown of 10nA are ideal for battery-operated systems, prolonging battery life in portable mining equipment.



Product Parameters:

Technical Features Description
Input Voltage Range 1.6V to 5.5V
Output Current Up to 300mA
Dropout Voltage Low
Operating Temperature Range -40℃ to +85℃
Built-in Features Thermal Overload Protection, Fold Back Protection
Additional Functions Auto-Discharge, Adjustable Output Voltage
