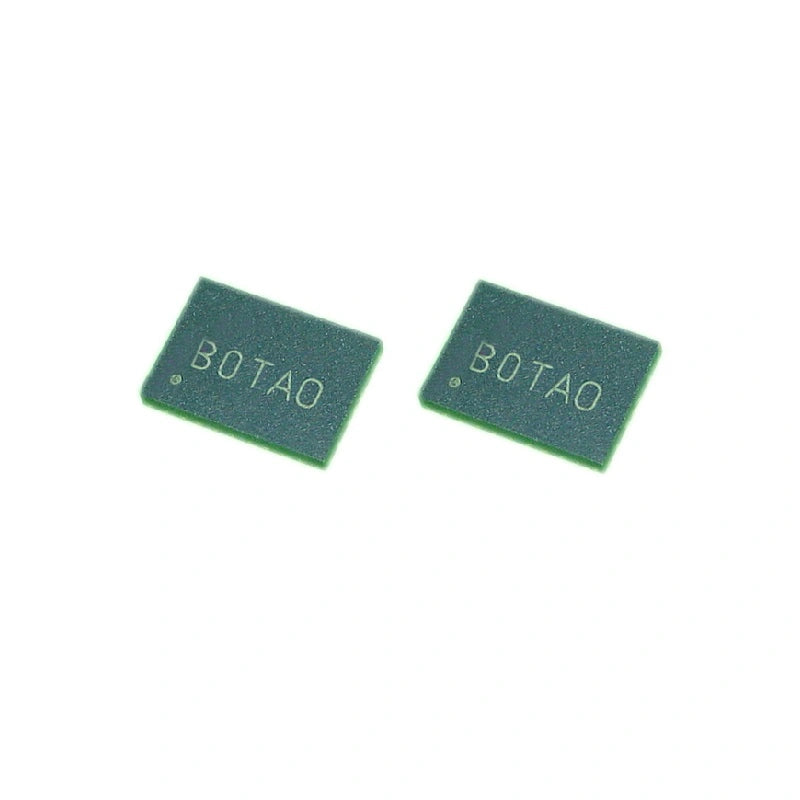

SiTime SIT9102AI B0MHK B0QVL LVDS 200 MHz Oscillator Quartz-Free Miner Hashboard Replacement chip
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Upgrade Your Mining Equipment with SIT9102AI B0MHK/B0QVL LVDS Oscillator
Enhance the performance of your mining equipment with the SiTime SIT9102AI B0MHK/B0QVL LVDS 200 MHz Oscillator. This oscillator is specifically designed as a cost-effective and quartz-free replacement for crystal oscillators, quartz crystals, and clock ICs. It is an ideal solution for repairing and replacing Antminer S17, Avalon 821, 921, and select A10 series hash boards.
High-Performance SiTime SIT9102AI 200 MHz XO - Reliable and Precise Oscillation
The SIT9102AI B0MHK/B0QVL offers exceptional reliability and accuracy with its extremely low RMS phase jitter. Operating at a frequency range of 200 MHz, it provides precise timing for your mining applications. With a voltage supply of 3.3V, it ensures compatibility with mining equipment specifications.
SiTime SIT9102AI Technical Features:
| Feature | Description |
|---|---|
| Base Resonator | MEMS |
| Type | Quartz-Free LVDS Oscillator |
| Frequency | 200 MHz |
| Function | Crystal Oscillator Replacement |
| Output | LVDS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Operating Temperature | -40°C ~ 85°C |
| Current - Supply (Max) | 76mA |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Current - Supply (Disable) (Max) | 10µA |
| Base Product Number | SIT9102 |
