About the Product

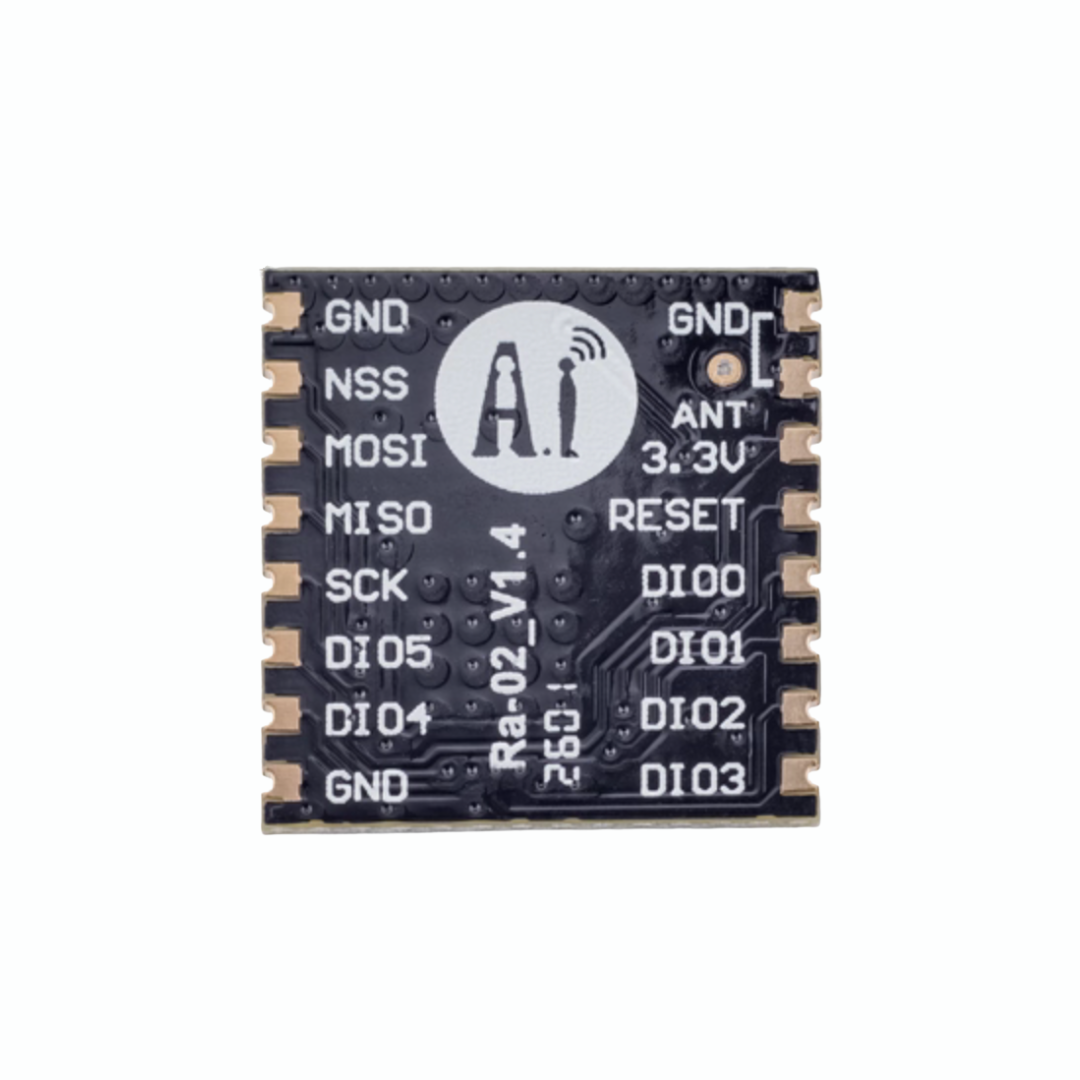

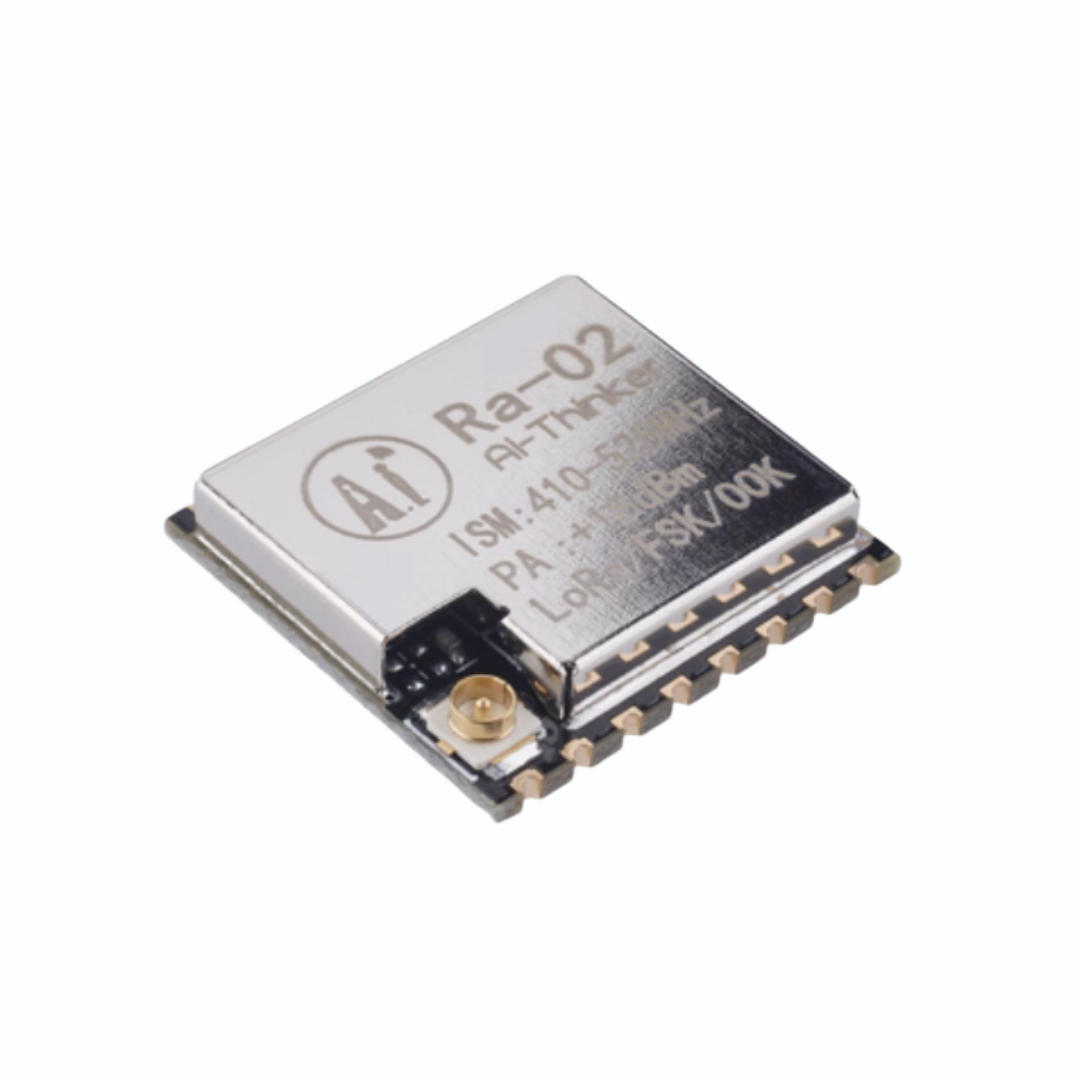

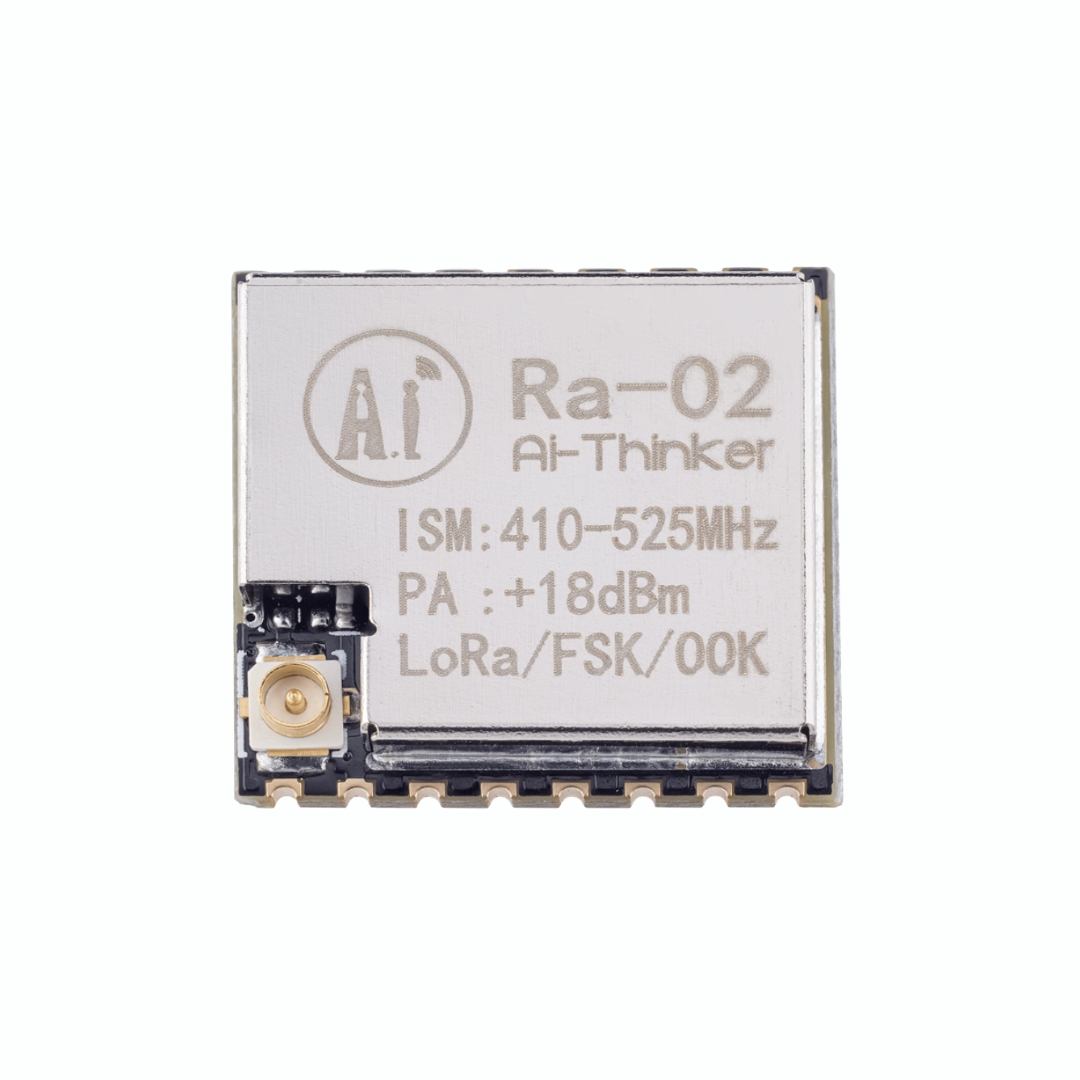

SX1278 LoRa Wireless Module (Ra-02) 433MHz with SPI Interface

The SX1278 LoRa Wireless Module (Ra-02) is a high-performance, long-range communication module that operates on the 433MHz frequency. Designed for IoT and low-power wireless applications, it offers excellent signal stability and range with the ability to reach up to 15km in open environments. The module integrates seamlessly into microcontroller-based systems through its SPI interface, providing easy communication for various industrial, agricultural, and environmental use cases.

Key Features:

  • Long-Range Communication: Achieve up to 15km of transmission range in open areas for applications like smart cities and environmental monitoring.
  • SPI Interface: Easily integrates with microcontrollers and embedded systems for flexible data transmission.
  • Low Power Consumption: With power consumption as low as 1.6mA in standby mode, the module is ideal for battery-powered solutions with long runtimes.
  • High Output Power: Provides reliable data transmission with a maximum output power of 18dBm.
  • Wide Frequency Range: Operates within 410–525 MHz, supporting versatile communication protocols.
  • Built-in Antenna Connector: Features an IPEX antenna interface for antenna customization to suit various needs.
  • Environmental Resistance: Designed to operate between -35°C to 85°C, with a storage range of -40°C to 90°C.
  • Secure Communication: Ensures reliable and secure transmission with a maximum data rate of 300Kbps.


Product Specifications:

Parameter Value
Model SX1278 (Ra-02)
Frequency Range 410–525 MHz
Transmission Rate Up to 300Kbps
Maximum Output Power 18 ± 1 dBm
Power Supply 2.5V ~ 3.7V (typical: 3.3V)
Operating Temperature -35°C ~ 85°C
Storage Temperature -40°C ~ 90°C
Current Consumption 433MHz (TX): 93mA, 433MHz (RX): 12.15mA, Standby: 1.6mA
Antenna Type IPEX
Interface SPI


Application Scenarios:

  • Industrial Manufacturing: Improve communication in industrial environments with reduced wiring and increased operational efficiency.
  • Smart Homes: Integrate into IoT devices to provide efficient communication in home automation systems.
  • Agricultural Automation: Monitor environmental conditions such as weather and soil moisture over long distances.
  • Security Systems: Provides reliable and long-range communication for security and surveillance systems.
