10W 10-ohm Ceramic Resistor - High-Wattage Wirewound
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

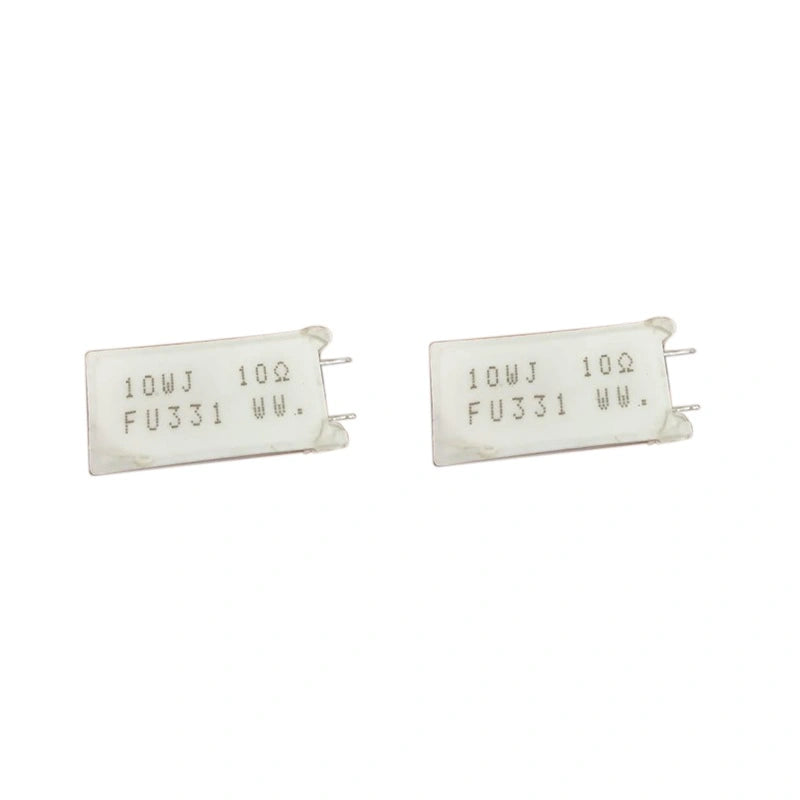

10W 10Ω Ceramic Power Resistor – High-Wattage Wirewound
The 10W 10Ω ceramic power resistor is a wirewound high-wattage component in a cement-filled ceramic case — handles continuous 10W dissipation without thermal runaway. Standard part for snubber circuits, current-sense low-side, dummy loads on PSU benches, and audio amplifier output-stage emitter resistors.
Stocking part for repair benches working on ASIC miner PSUs, audiophile amplifier rebuilds, and lab dummy-load builds. Tolerant of brief overload + good long-term thermal stability.
Typical Use Cases
- Snubber circuits — RC snubber on PSU switching nodes.
- Current sense — low-side sense in power circuits.
- Dummy load — bench PSU test resistor (10W max continuous).
- Audio emitter resistors — power-stage output sense.
10W 10Ω Ceramic Resistor Specifications
| Specification | Detail |
|---|---|
| Item | 10W 10Ω ceramic wirewound resistor |
| Resistance | 10Ω |
| Power Rating | 10W continuous |
| Construction | Wirewound, cement-filled ceramic |
| Tolerance | ±5% (standard) |
| Condition | Brand New |
FAQ — 10W 10Ω Ceramic Resistor
Q: Other resistance values available?
A: Yes — common values from 0.1Ω to 1kΩ at 10W. Email with your spec.
Q: Inductive or non-inductive?
A: Standard wirewound = slightly inductive. For RF / high-speed switching, request non-inductive variant.
Q: Bulk pricing?
A: Yes — email contact@lys-sz.com.
