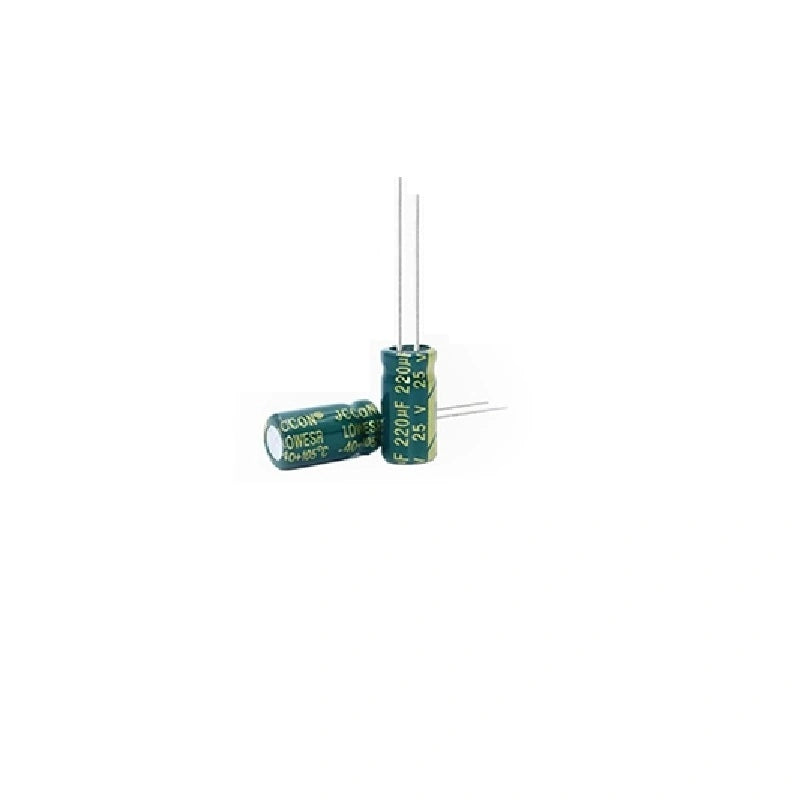

25V 220uf Aluminum Electrolytic Capacitor 8*12mm for Bitmain APW3++ Power Supply
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
25V 220µF Aluminum Electrolytic Capacitor for Bitmain APW3++ PSU
This 25V 220µF aluminum electrolytic capacitor in an 8x12mm can is the replacement part used to restore degraded output-side electrolytics on the Bitmain APW3++ mining power supply. Built to withstand extreme temperature variations from -55°C to +105°C, it is sized for the continuous thermal duty seen inside an ASIC PSU.
Failed 25V/220µF caps on the APW3++ output stage typically show as ripple-induced shutdowns, hash-board instability or audible whine from the PSU. Replacing the affected caps brings the PSU back into spec without having to swap the entire unit.
Specifications
| Parameter | Value |
|---|---|
| Part type | Aluminum electrolytic capacitor |
| Condition | New |
| Capacitance | 220µF |
| Voltage rating | 25V DC |
| Package size | 8mm diameter x 12mm height |
| Operating temperature | -55°C to +105°C |
| Mounting | Radial / through-hole or surface-mount (board-dependent) |
| Application | Bitmain APW3++ PSU output-side filtering |
| Compatibility | Bitmain APW3++ and similar ASIC PSUs |
Where the 25V 220µF cap sits in the APW3++
Inside an APW3++ power supply, 25V-class electrolytics sit on the output side, between the synchronous rectifier MOSFETs and the load connector. Their job is to smooth the high-current DC output before it leaves the PSU on its way to the miner. When they age, ESR rises, ripple climbs and the downstream hashboards become unstable — even though the average output voltage looks correct on a multimeter.
Compatibility
Drop-in replacement for the 25V 220µF 8x12mm slots on Bitmain APW3++ PSU output sections. The same form-factor is reused on several Bitmain and third-party miner PSUs — verify the can footprint and silkscreen value before substitution. Always replace caps as a batch in the same neighbourhood for consistent ESR matching.
Common failure symptoms
- APW3++ output ripple causes hash-board instability or chain drops
- Bulging, vented or leaking electrolytic on the output stage
- Audible whine or high-pitched noise from the PSU under load
- Miner intermittently reboots even though the average output voltage looks correct
- Synchronous rectifier MOSFETs running hotter than usual
Frequently asked questions
Is this the same form factor as the original APW3++ output cap?
Yes. The 25V 220µF 8x12mm can footprint matches the slot used on Bitmain APW3++ PSU output sections.
Can I use it as an input filter cap instead?
The 25V rating is for low-voltage output filtering. Input/PFC bulk caps use much higher voltage parts and are not interchangeable.
Do I need to match ESR?
Yes — for output filtering on a switching PSU, match the original ESR class to avoid increased ripple.
Do you sell other capacitor values?
Yes — we also stock 47µF 63V aluminum electrolytics for Antminer L7 and Iceriver KS5L hashboards.
