2N7002LT1G 702 60V 115mA SMD MOSFET Whatsminer H3 CB2 V8 Motherboard
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
2N7002LT1G N-Channel MOSFET 60V 115mA – Whatsminer H3 CB2 V8 Motherboard Repair

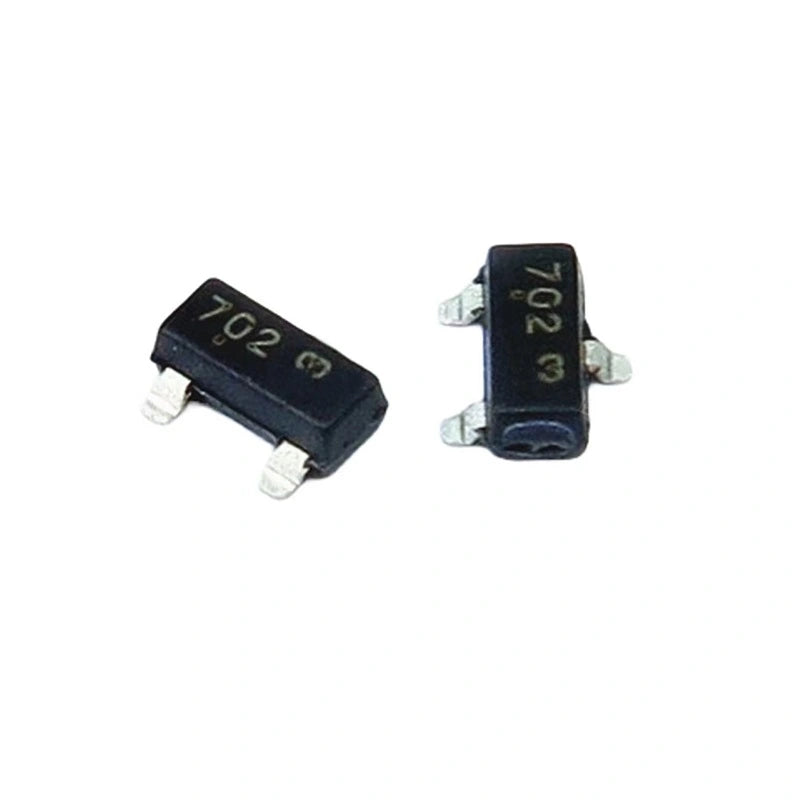

The 2N7002LT1G (silk-screen marking 702) is an N-channel MOSFET rated at 60V / 115mA in a SOT-23 package, used on the Whatsminer H3 CB2 V8 control board for signal-level switching and logic interfacing. With an on-state resistance of 7.5Ω at 10V gate drive, a gate threshold of 2.5V and maximum power dissipation of 225mW, it handles the low-current switching tasks on the motherboard's supervisory and I/O circuits.
Role on the Whatsminer H3 Control Board
The CB2 V8 motherboard uses small-signal MOSFETs like the 2N7002 for logic-level switching — enabling or disabling peripheral circuits, driving indicator LEDs, and interfacing between the Allwinner H3 processor and the hashboard power sequencing logic. A failed 2N7002 can cause a control board to lose communication with one or more hashboards, prevent the miner from starting, or disable a monitoring function that the firmware relies on for normal operation.
Replacement Procedure
Power off the miner and remove the control board. Locate the failed 2N7002 — it is a 3-pin SOT-23 package marked 702, typically found near the processor or I/O connector area. Verify failure by checking gate-drain and gate-source resistance with a multimeter. Desolder with a fine-tip iron or hot air at 280–310 °C, clean pads, place the new device with correct pin orientation and reflow. Reinstall the board and confirm normal miner startup and hashboard detection.
2N7002LT1G MOSFET Specifications
| Parameter | Value |
|---|---|
| Part Number | 2N7002LT1G |
| Channel Type | N-Channel |
| Drain-Source Voltage | 60 V |
| Drain Current | 115 mA |
| Rds(on) | 7.5 Ω @ 10 V |
| Gate Threshold | 2.5 V @ 250 µA |
| Power Dissipation | 225 mW |
| Package | SOT-23 |
| Marking | 702 |
| Compatibility | Whatsminer H3 CB2 V8 |
| Condition | New |
Related Whatsminer H3 / CB2 Control Board Components
- AO3423 P-Channel MOSFET – Whatsminer H3 CB2 V8
- Whatsminer CB2 V8 H3 Control Board Replacement
- Allwinner H3 CPU – Whatsminer Control Board Repair
- FDV301N N-Channel MOSFET – Whatsminer CB2 V8 Repair
