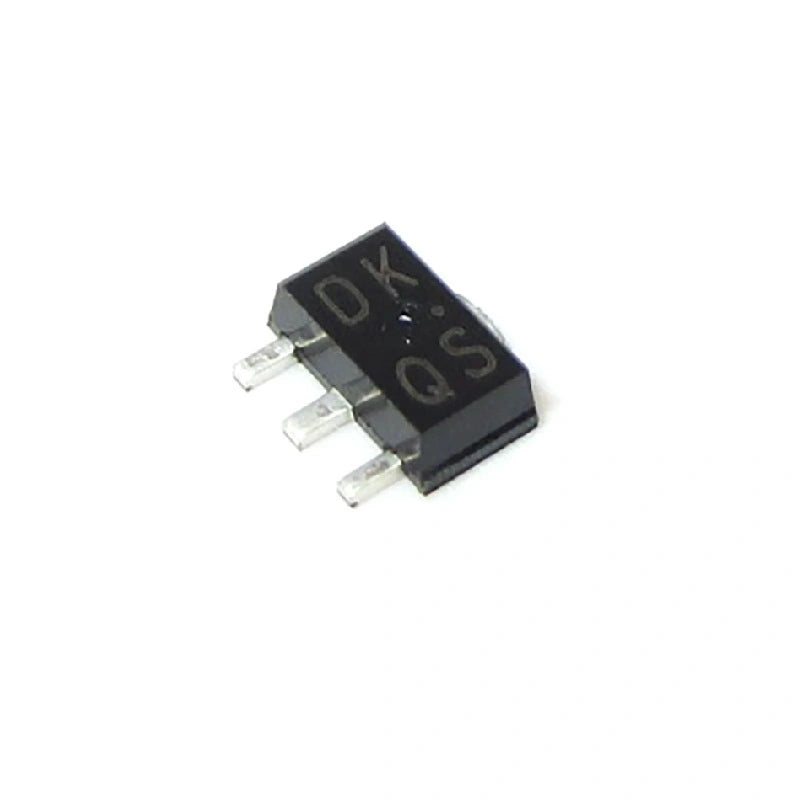

2SC4672T100Q DK NPN Silicon Epitaxial Transistor for Lovecore Loveminer A1 PSU Repair
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Repair Lovecore A1 Power Supply with 2SC4672T100Q DK NPN Transistor
Restore and improve your Loveminer A1 power supply with the high-performance 2SC4672T100Q DK NPN silicon epitaxial transistor. This transistor, featuring a low collector and emitter saturation voltage and high current gain, is the ideal replacement for faulty components in your power supply.
Repair Your Loveminer A1 PSU with the 2SC4672T100Q DK Silicon Epitaxial Transistor
The 2SC4672T100Q DK NPN transistor is designed for ease of use and compatibility with the Loveminer A1 power supply. With its low saturation voltage of typically VCE (sat) = 0.1V at IC/IB = 1A/50mA, it minimizes energy loss and ensures efficient power transfer.
Technical Features:
| Feature | Description |
|---|---|
| Collector-Emitter Voltage (VCEO) | 50V |
| Collector-Base Voltage (VCBO) | 60V |
| Emitter-Base Voltage (VEBO) | 6V |
| Collector-Emitter Saturation Voltage | 130mV |
| Maximum DC Collector Current | 3A |
| Power Dissipation | 500mW |
| Gain Bandwidth Product (fT) | 210MHz |
| Maximum Operating Temperature | 150℃ |
