A3201SKV3 A3021 Tin Tool Fixture for Avalon 1166pro Hashboard

A3201SKV3 / A3021 Tin Tool Fixture for Avalon 1166pro Hashboard

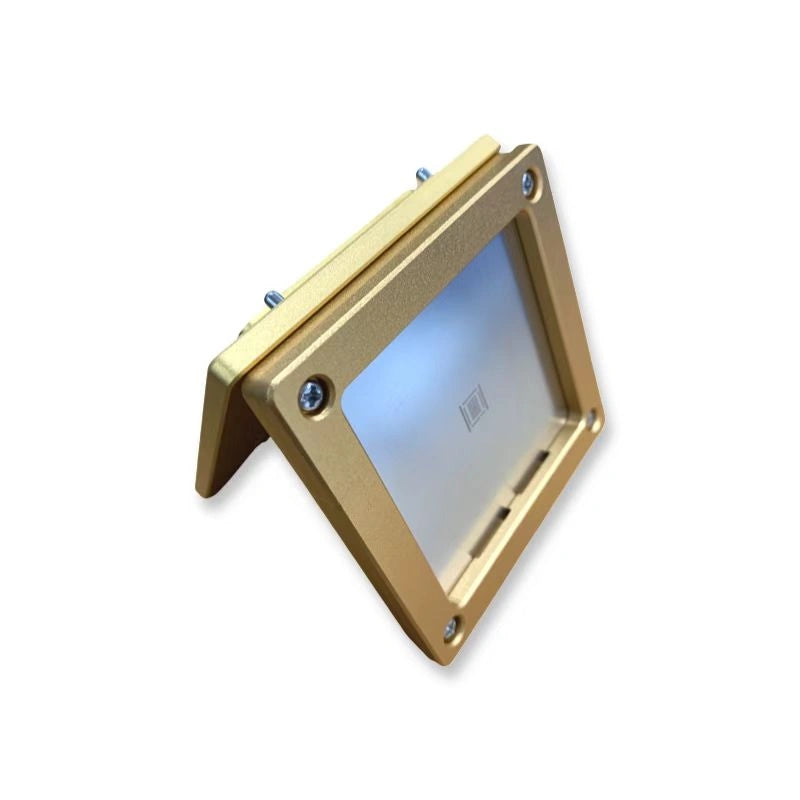

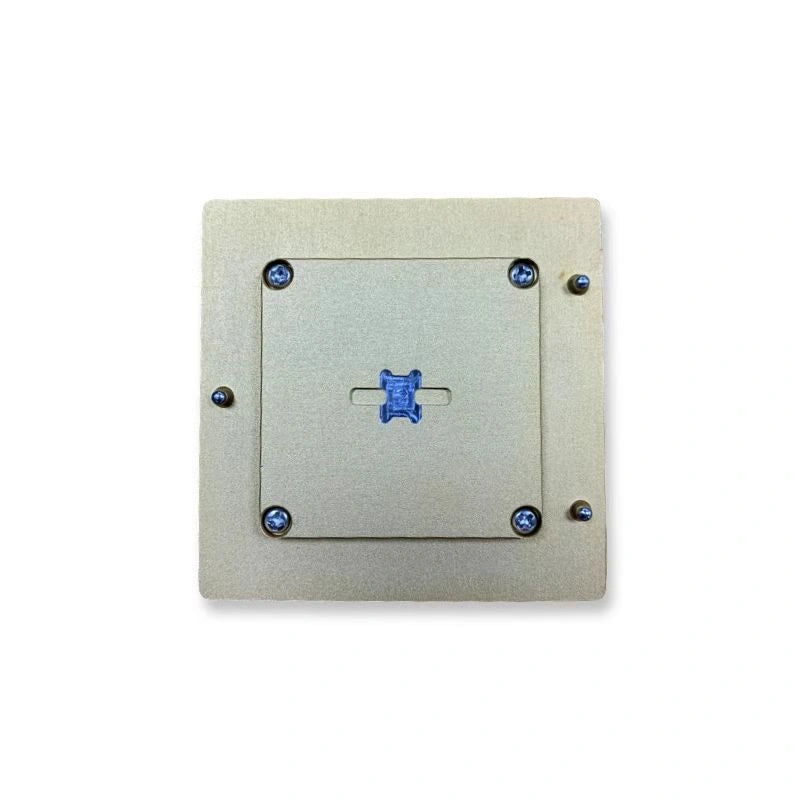

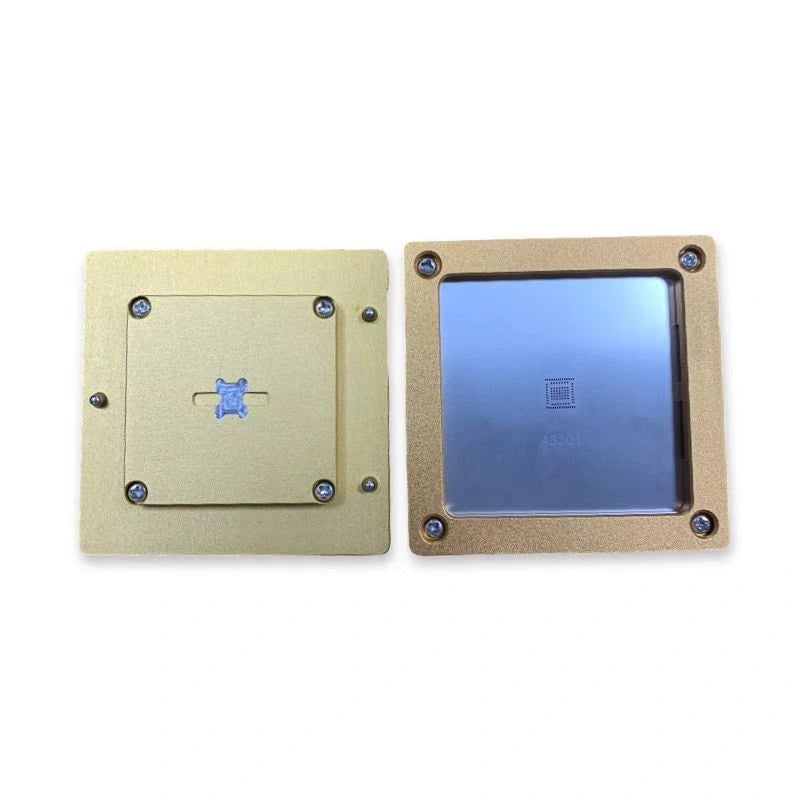

This A3201SKV3 / A3021 tin tool fixture is a complete reballing kit designed specifically for Avalon 1166pro hashboard chip replacement. The set includes a precision chip holder, a matched stencil plate, and a mounting fixture that together ensure accurate solder ball placement on every A3201SKV3 and A3021 ASIC chip. For technicians performing board-level repairs on Canaan Avalon miners, this tool eliminates guesswork and produces consistent, repeatable results across rework volumes.

Typical Use in Avalon 1166pro Repair

• A3201SKV3 / A3021 chip replacement — solder ball placement on chip footprint before reflow.
• Hashboard refurbishment — bulk reballing of multiple boards in production refurb workflow.
• Hot-failure recovery — boards with one or more A3201SKV3 / A3021 chips dead after thermal events.
• Bench tooling — repair shops servicing 1166pro fleet need this stencil + holder kit on hand.
• Production-line equipment — refurbishers running steady 1166pro board volume.

A3201SKV3 / A3021 Tin Tool Specifications

FAQ — A3201SKV3 / A3021 Tin Tool

Q: Do I need replacement A3201SKV3 / A3021 chips separately?
A: Yes — this is the reballing tool kit only. For complete 1166pro hashboard repair, you'll also need (1) replacement A3201SKV3 or A3021 ASIC chips, (2) solder paste / balls, and (3) thermal grease for re-pasting after chip installation.

Q: How many cycles does the stainless steel stencil last?
A: Stainless steel stencils with proper cleaning between cycles reliably handle hundreds of board rework operations. The precise hole positions hold accuracy through repeated heat cycles — long service life for production-grade refurb operations.

Q: Will it work on other Avalon models (1126 / 1246 / 1346)?
A: No — this tin tool is sized specifically for the A3201SKV3 / A3021 chip footprint on the 1166pro hashboard. Other Avalon generations use different chips with different pin layouts. Check chip silk marking before ordering.

Q: Bulk pricing for Avalon refurb shops?
A: Yes — email contact@lys-sz.com with your monthly 1166pro board rework volume for tier pricing.
