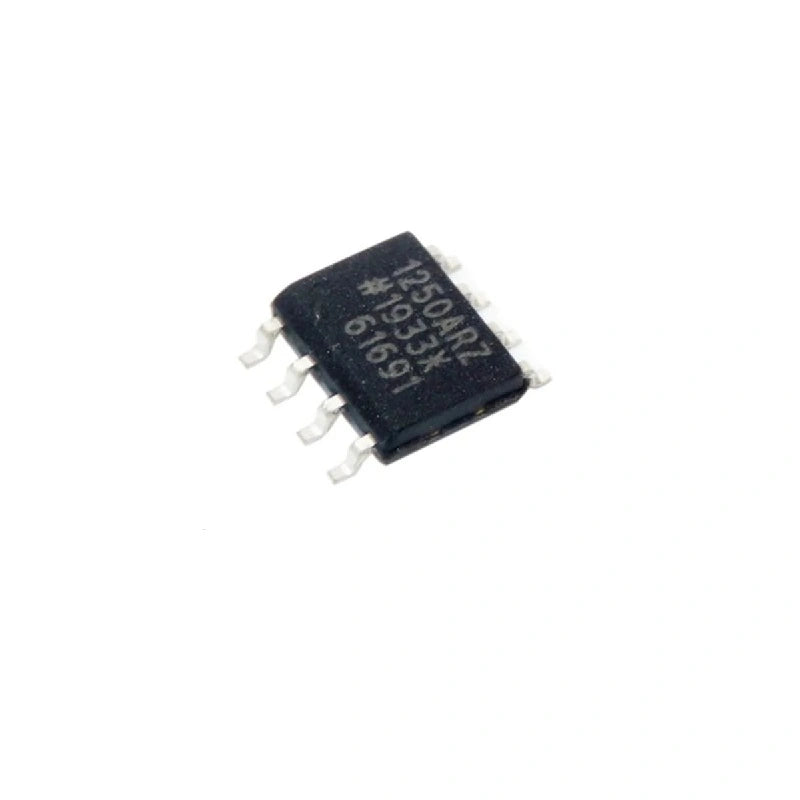

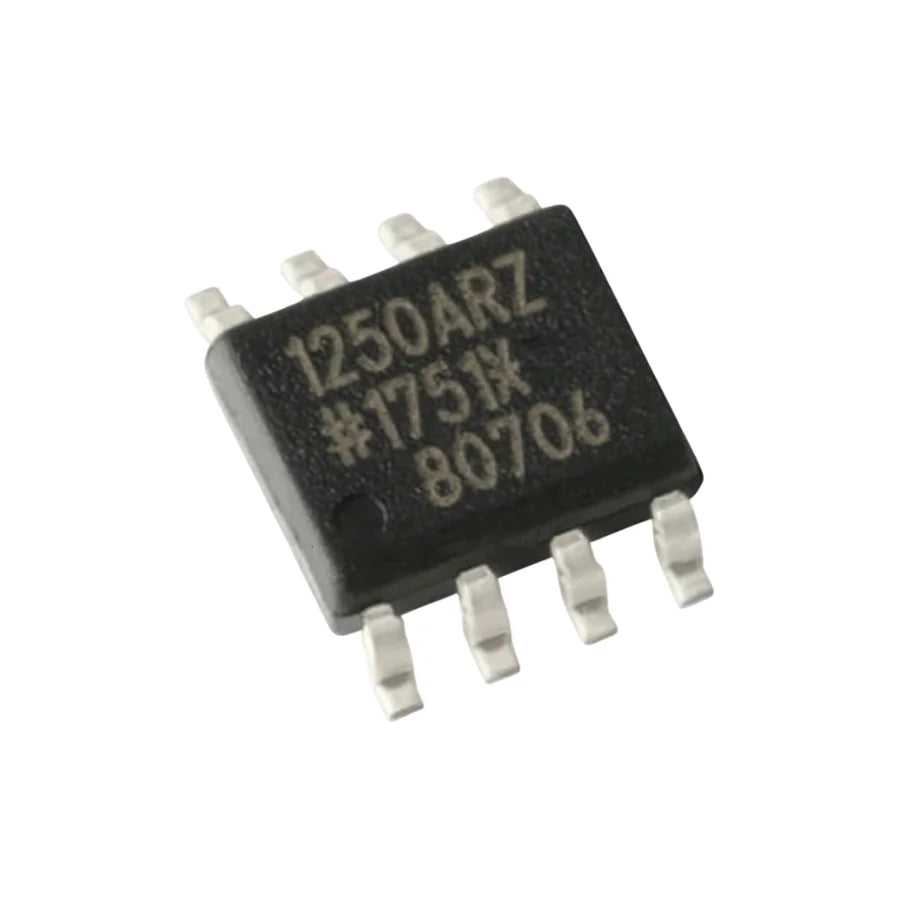

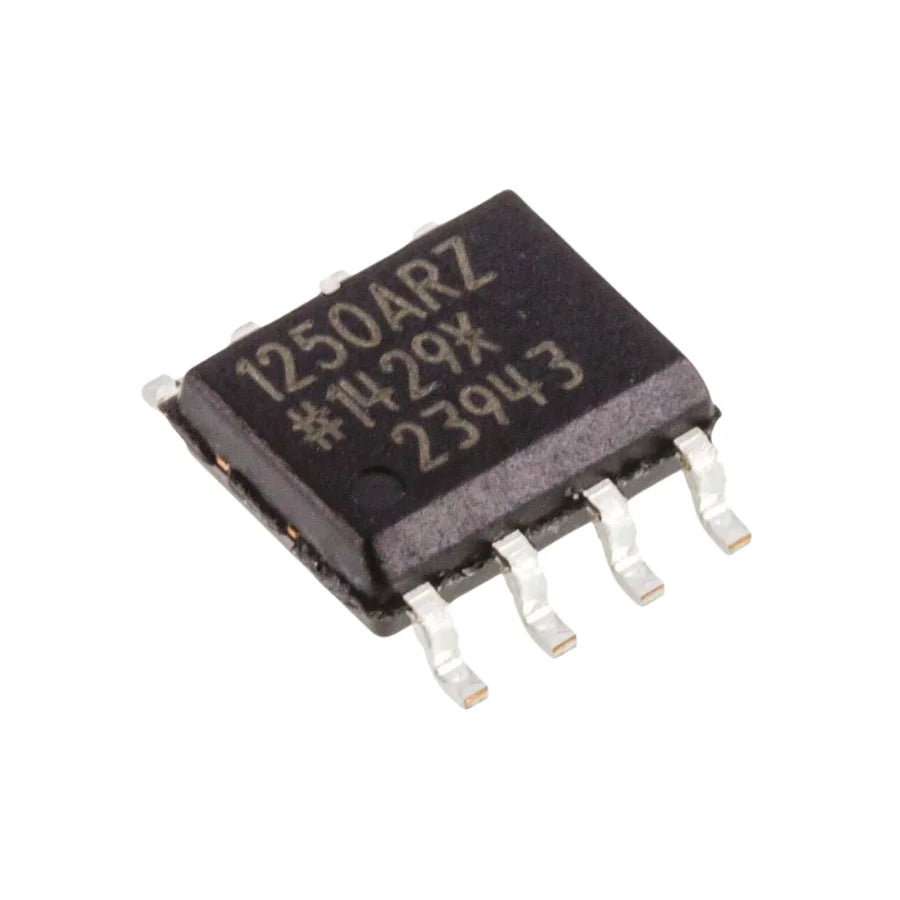

ADUM1250ARZ Hot-Swap I²C Digital Isolator – Antminer D7 Hashboard
The ADUM1250ARZ is a hot-swap digital isolator used on the Antminer D7 hashboard to fully isolate the I²C bus between the control domain and the hashboard's housekeeping bus. Bidirectional I²C communication over two open-drain channels eliminates the need for separate transmit/receive signals — drop-in replacement for legacy optocoupler-based isolation with better noise immunity and power efficiency.
Built on Analog Devices' iCoupler technology, the isolator handles I²C, SMBus and PMBus traffic at up to 1 MHz, with a 3.0-5.5 V supply / logic range and a 30 mA current sink capability sized for hot-swap operation. Compact SOIC-8 RoHS package, 125 °C operating envelope, automotive qualified.
Typical Failure Modes Solved
- I²C bus stuck — failed isolator preventing housekeeping bus traffic.
- Hashboard fails to enumerate — broken control-bus communication.
- Hot-failure recovery — replace after thermal-stress events.
- Production refurbishment — bulk isolator stock for D7 rebuild lines.
ADUM1250ARZ Specifications
| Feature | Specification |
|---|---|
| Part Number | ADUM1250ARZ |
| Type | Hot-swap digital isolator (iCoupler) |
| Interface | Bidirectional I²C / SMBus / PMBus |
| Max Speed | 1 MHz |
| Current Sink | 30 mA (hot-swap rated) |
| Supply Voltage | 3.0 V – 5.5 V (logic levels) |
| Channels | 2 bidirectional, open-drain |
| Package | SOIC-8 RoHS |
| Operating Temperature | Up to 125 °C |
| Qualification | Automotive |
| Compatible Board | Antminer D7 hashboard |
| Condition | Brand New |
FAQ — ADUM1250ARZ Isolator
Q: iCoupler vs optocoupler?
A: iCoupler uses on-chip transformers instead of LEDs + photo-transistors — better noise immunity, longer service life, and faster signalling. The original Antminer design uses ADUM1250 specifically; substituting an optocoupler doesn't drop in cleanly.
Q: How to test if the isolator is dead?
A: Probe both sides of the I²C bus with a logic analyzer. If side A transitions but side B doesn't (or vice versa), the isolator is degraded. Verify supply rails on both sides before swap.
Q: Bulk pricing?
A: Yes — email contact@lys-sz.com.
