Antminer BM1360BB Tinning Stencil Plate for S19i Hashboard Repair
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

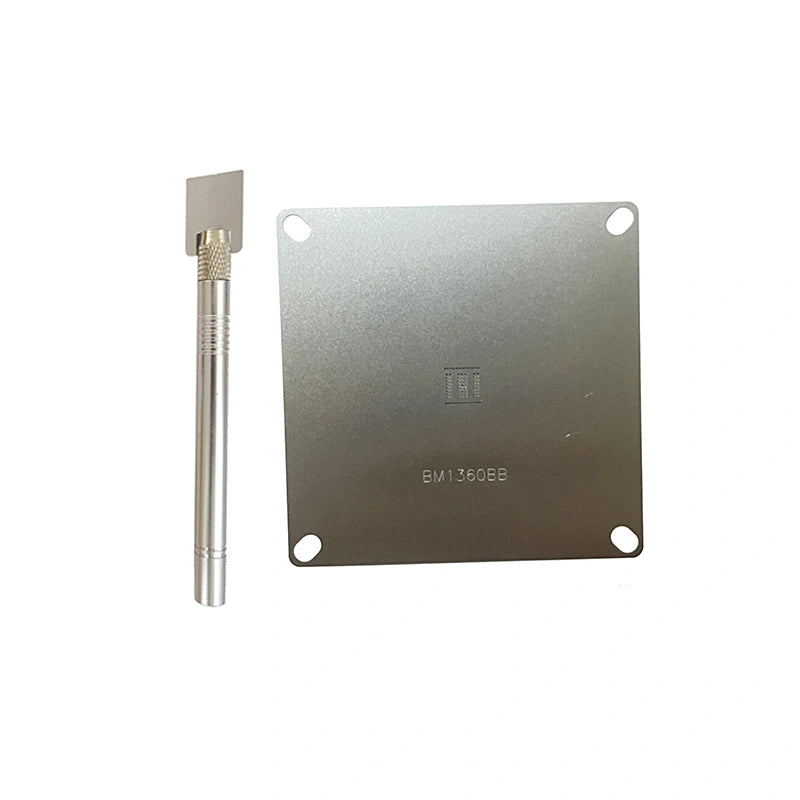

BM1360BB Tinning Stencil Plate – Antminer S19i Hashboard ASIC Chip Repair
This BM1360BB tinning stencil plate is a laser-cut stainless steel tool for precision solder paste application when replacing ASIC chips on the Antminer S19i hashboard. The aperture pattern matches the BM1360BB BGA pad layout with ±0.02mm tolerance, withstands temperatures up to 300°C without warping, and features ESD-safe construction to protect sensitive chips during handling. Designed for repeated reflow cycles across hundreds of chip replacements.
Why Precision Stencils Improve First-Pass Yield
Freehand solder paste application on a BGA chip produces inconsistent deposits — bridging, voids and uneven coverage that cause rework. This stencil ensures every aperture receives the correct paste volume in a single scraper pass, producing uniform solder joints across the entire BGA array. The laser-cut stainless steel resists oxidation and maintains aperture accuracy over the stencil's service life.
How to Use
Place the chip or prepared PCB pads face-up. Align the stencil so apertures register with the BGA pads. Apply solder paste with a squeegee in a single pass. Lift vertically. Place the chip on the hashboard footprint and reflow. Clean the stencil with IPA after use.
BM1360BB Stencil Specifications
| Parameter | Value |
|---|---|
| Compatible Chip | BM1360BB |
| Compatible Miner | Antminer S19i |
| Material | Laser-cut stainless steel |
| Tolerance | ±0.02mm |
| Max Temperature | 300°C |
| ESD Protection | Yes |
| Condition | New |
Related Antminer Tin Stencils & S19i Components
- BM1360BB Chip Tinning Tool Kit – S19i Repair
- BM1489 Tin Tool Stencil – Antminer L7 Hashboard
- BM1360BB ASIC Chip – Antminer S19i Hashboard
- BM1370BC Tin Stencil – Antminer S21 Pro Hashboard
Repairing S19i hashboards? Contact us at contact@lys-sz.com for stencils, chips and volume pricing.
Worldwide shipping from our Shenzhen warehouse.
