Antminer L7 ASIC Chip BM1489 Tin Tool Stencil for Hash Board Repair

Antminer L7 ASIC Chip BM1489 Tin Tool Stencil | Steel Mesh Tin Plating Stencil with Precise Hole Positions for Reliable BM1489 ASIC Chip Reflow on Antminer L7 (LTC/DOGE) Hashboard Repair and Refurbishment

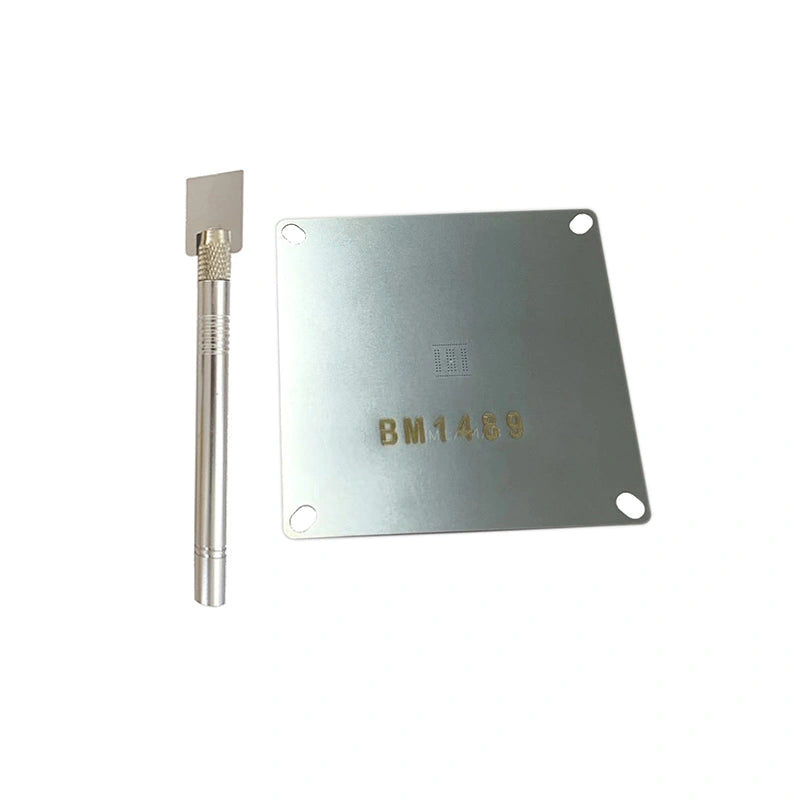

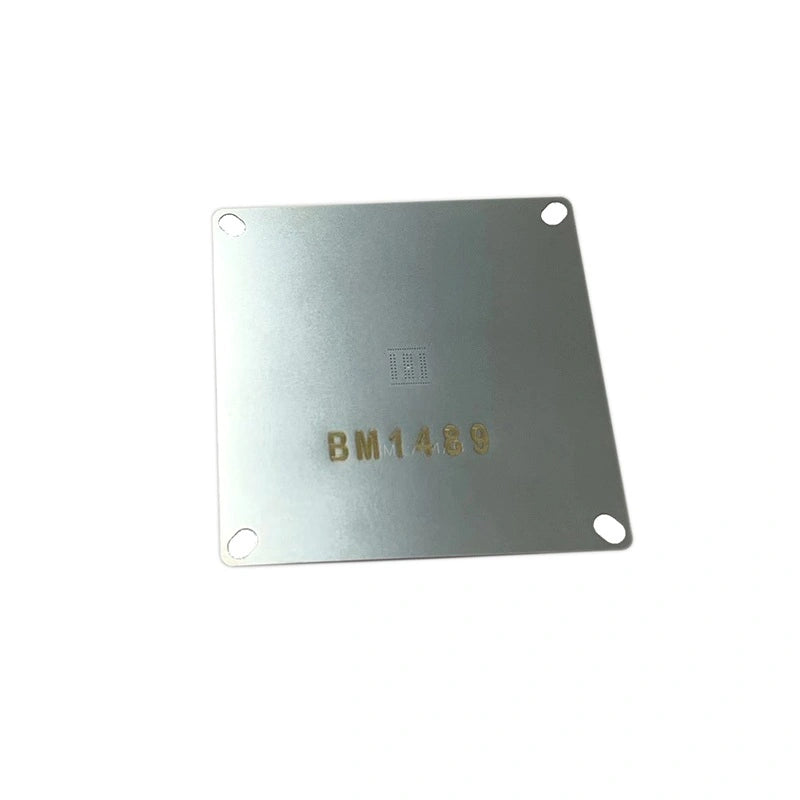

The Antminer L7 ASIC Chip BM1489 Tin Tool Stencil is an essential repair-bench tool for L7 hashboard rework. Specifically designed for the Bitmain BM1489 ASIC chip, this steel mesh stencil enables quick, accurate tin plating of chip pad arrays during reflow — the foundation of any successful BM1489 replacement during L7 hashboard repair, refurbishment, or production-line assembly.

Built from environmentally-friendly materials with precise hole positions matched to the BM1489 chip footprint, the stencil delivers consistent solder paste deposition across the chip pad array. Anti-expansion characteristics mean the stencil holds dimensional accuracy through repeated heat cycles — important when running production-volume rework where stencil drift would compound across hundreds of boards.

Typical Use in L7 Hashboard Repair

• Failed BM1489 ASIC replacement — re-tinning chip pads after chip removal for new chip placement.
• Hashboard refurbishment — bulk re-tinning of multiple boards in production refurb workflow.
• Hot-failure recovery — boards with one or more BM1489 chips dead after thermal events.
• Bench tooling — repair shops servicing L7 fleet need this stencil on hand for every BM1489 swap.
• Production-line equipment — refurbishers running steady L7 board volume.

Best-Practice Workflow

For best results, the BM1489 Tin Tool Stencil should be used in combination with the matching BM1489 chip tin tool (consumable tin tool pad). Stencil + tin tool together form the complete reflow workflow: clean board → align stencil over chip footprint → apply solder paste → lift stencil → reflow → inspect → place new chip.

BM1489 Tin Tool Stencil Specifications

FAQ — Antminer L7 BM1489 Tin Stencil

Q: Do I need to buy the BM1489 chip + tin tool separately?
A: Yes — this product is the steel mesh stencil only. You'll also need (1) the matching BM1489 chip tin tool (consumable tin pad) and (2) replacement BM1489 ASIC chips for the actual repair. Order all three together for a complete repair-ready package.

Q: How many cycles does one stencil last?
A: With proper cleaning between cycles, a single stencil reliably handles hundreds of board rework operations. The anti-expansion steel mesh holds dimensional accuracy through repeated heat cycles — long service life when used with care.

Q: Will this work on other Litecoin miners?
A: This stencil is specifically aligned to the BM1489 chip footprint used on Antminer L7. For L9 boards (BM1496 chips) or other Litecoin / Scrypt miners, use stencils matched to those specific chip footprints. Check chip part number and footprint before ordering.

Q: Bulk pricing for refurb shops?
A: Yes — email contact@lys-sz.com with your monthly L7 hashboard rework volume for tier pricing on stencils + companion tin tools.
