Antminer KS5 KS5pro Hash Board Thermal Grease Stencil for ASIC Heat Dissipation

Antminer KS5 / KS5 Pro Hashboard Thermal Grease Stencil Mold | Precision-Fit Tin Tool Template for Even Thermal Grease Application Across Multiple BM2382AA ASIC Chips on KS5 / KS5 Pro Hashboards During Repair and Refurbishment Workflow

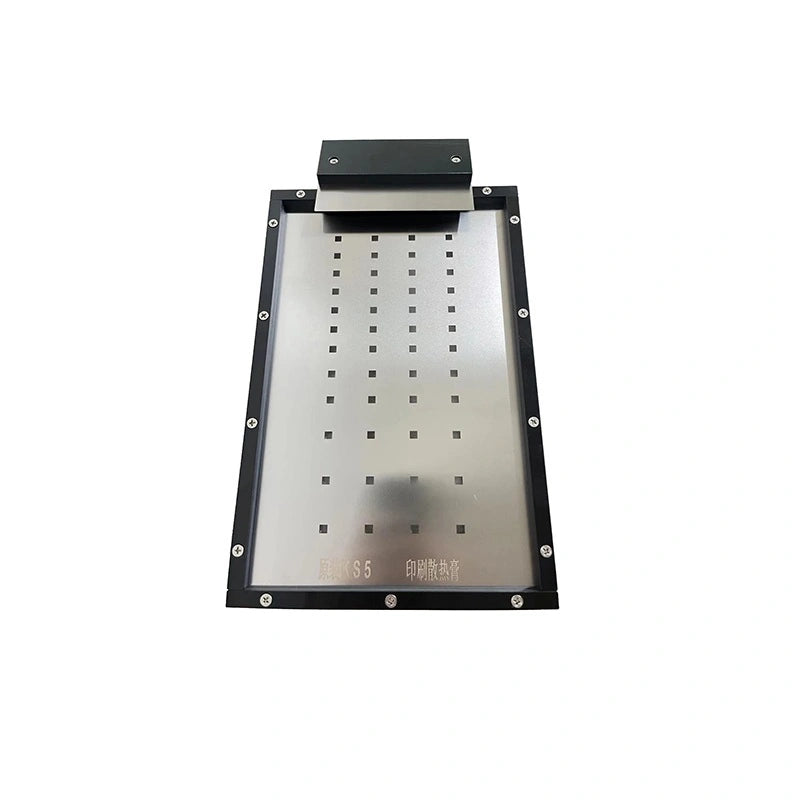

The Antminer KS5 / KS5 Pro Hashboard Thermal Grease Mold is designed to facilitate the even application of thermal grease on the KS5 / KS5 Pro hashboard ASIC chips. Say goodbye to uneven coatings and hello to efficient heat dissipation — the foundation of stable hashboard operation in production-grade rework workflows.

Featuring a well-thought-out design, the grease template fits precisely onto the hash board ASIC chip, preventing any interference with surrounding components. With its help, you can effortlessly apply thermal grease to multiple KS5 / KS5 Pro hashboard BM2382AA ASIC chips simultaneously — significant time savings vs hand-applying paste chip-by-chip.

Typical Use in Antminer KS5 / KS5 Pro Repair

• After chip replacement — re-apply thermal grease evenly after swapping BM2382AA chips.
• Hashboard refurbishment — fresh grease application during production refurb workflow.
• Heat dissipation restoration — replacing aged / dried-out thermal grease that's reducing cooling effectiveness.
• Bench tooling — repair shops servicing KS5 / KS5 Pro fleet need this stencil on hand.
• Production-line equipment — refurbishers running steady KS5 board volume.

KS5 / KS5 Pro Thermal Grease Stencil Specifications

FAQ — KS5 / KS5 Pro Thermal Grease Stencil

Q: How does this differ from a tin / solder stencil?
A: This thermal grease stencil applies thermal interface paste on top of installed ASIC chips for heatsink coupling — between chip die and heatsink. Tin / solder stencils are used for solder paste deposition on bare pads before chip placement during reflow. Different workflow steps, different stencil patterns.

Q: What grease should I use with this stencil?
A: Any standard high-thermal-conductivity grease compatible with ASIC operation. HY510 (1.93 W/m·K) is the cost-effective workhorse. HY883 / HY885 (6.5-7.15 W/m·K) deliver higher conductivity for performance-critical applications. Match grease viscosity to stencil opening — typical formulations work fine.

Q: How do I clean the stencil between uses?
A: Wipe excess grease off with lint-free cloth or paper towel. For heavier buildup, use isopropyl alcohol on the lint-free cloth. Avoid solvents that may etch the steel. Dry thoroughly before next use to avoid water contamination of fresh grease.

Q: Bulk pricing for KS5 refurb shops?
A: Yes — email contact@lys-sz.com with your monthly KS5 hashboard rework volume for tier pricing on multi-stencil orders.
