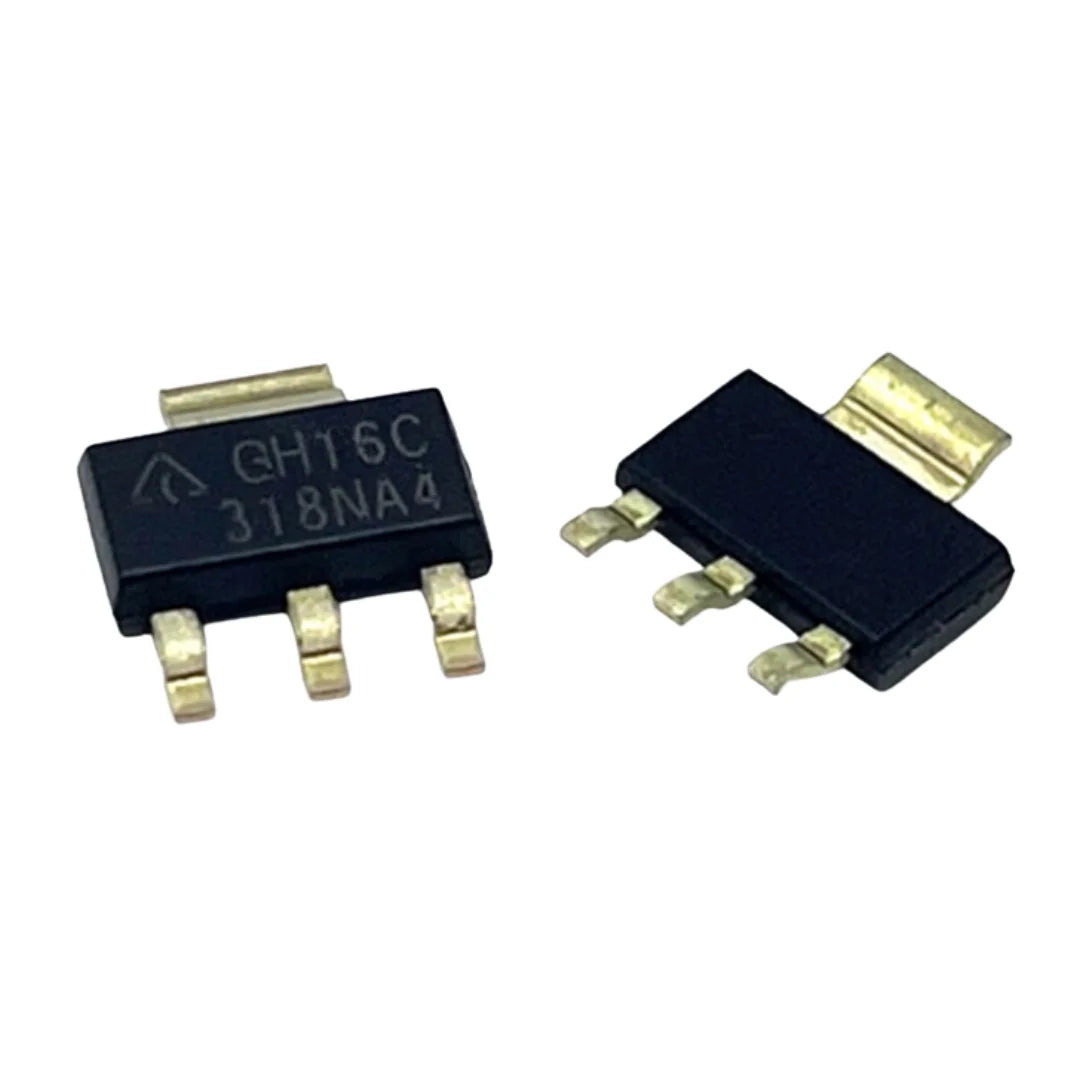

AZ1117CH-1.8TRG1 GH16C Low Dropout three-terminal Regulator

$0.09 USD
$0.09 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

Introducing the AZ1117CH-1.8TRG1 Low Dropout Three-Terminal Regulator

Upgrade your PCB motherboard with the AZ1117CH-1.8TRG1 low dropout three-terminal regulator. Engineered for low voltage applications, this regulator is optimized for transient response and minimum input voltage, ensuring superior efficiency and performance.

The Ultimate Solution for High-Efficiency Voltage Regulation

Equipped with a circuit that includes a trimmed bandgap reference, this regulator delivers output voltage accuracy within ±1%. Plus, its on-chip thermal shutdown safeguards against excessive junction temperature, providing reliable protection against high current and ambient temperature.

Choose from several fixed output voltage versions, including 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V. Alternatively, opt for the adjustable version, which allows you to set the perfect output voltage levels using just two external resistors. Available in SOT89, SOT223, and the industry-standard TO252-2 Series power packages, the AZ1117C is the ultimate solution for efficient and reliable voltage regulation. Upgrade your motherboard today and experience superior performance like never .

Category

Integrated Circuits (ICs)

Power Management (PMIC)

Voltage Regulators - Linear

Mfr

Diodes Incorporated

Series

AZ1117C

Package

Tape & Reel (TR)

Output Configuration

Positive

Output Type

Fixed

Number of Regulators

1

Voltage - Input (Max)

15V

Voltage - Output (Min/Fixed)

1.8V

Voltage Dropout (Max)

1.3V @ 800mA

Current - Output

1A

Current - Quiescent (Iq)

6 mA

PSRR

70dB (120Hz)

Protection Features

Thermal Shutdown

Operating Temperature

-20°C ~ 125°C (TJ)

Mounting Type

Surface Mount

Package / Case

TO-261-4, TO-261AA

Base Product Number

AZ1117
