B0540W SF Diode Schottky SOD-123 for Antminer L7 S19jPro+ Hashboard repair

B0540W SF Schottky Diode | 40V / 500mA SOD-123 Surface Mount Rectifier for Antminer L7 / S19j Pro+ Hashboard Repair

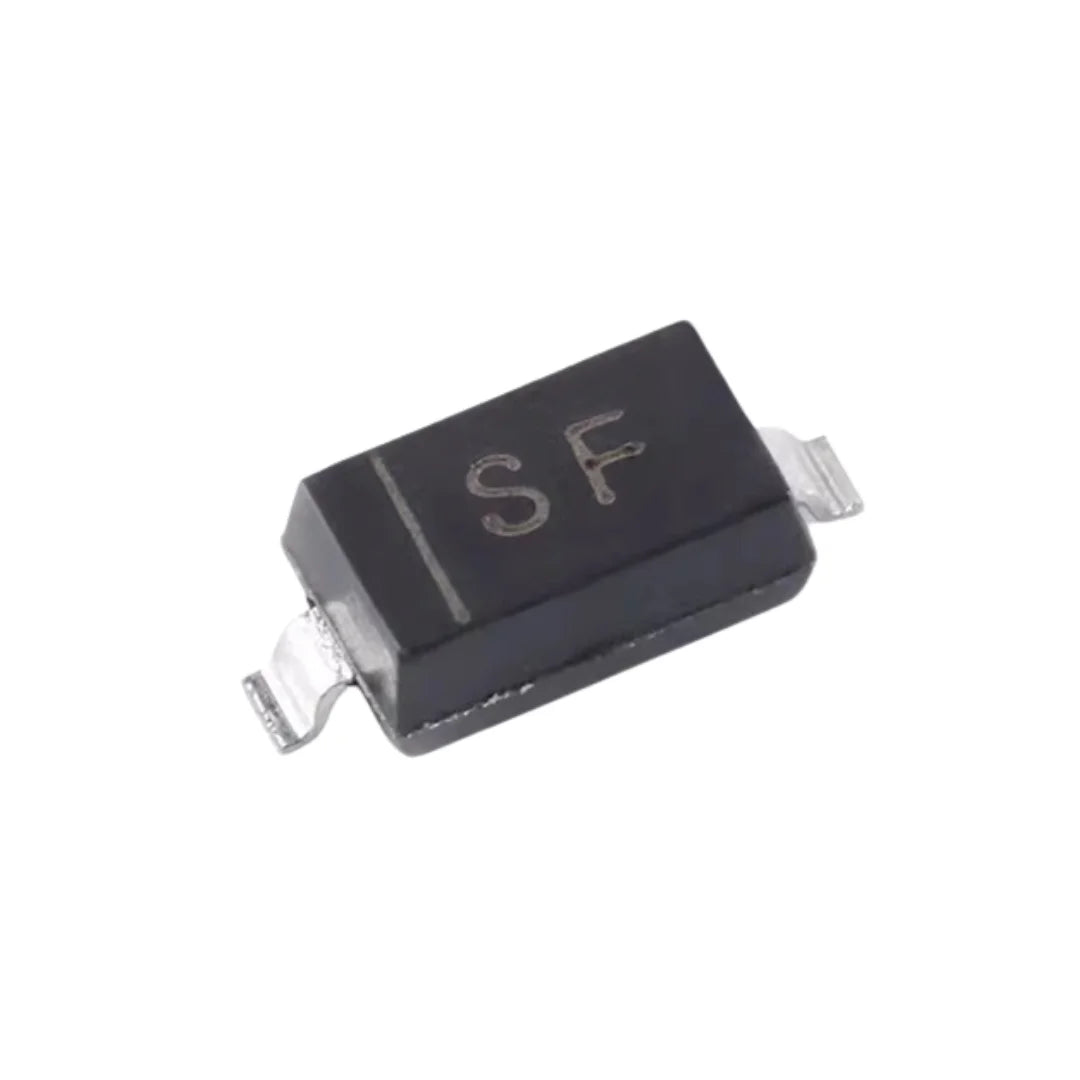

The B0540W (silk marking SF) is a 0.5A surface-mount Schottky barrier rectifier in the SOD-123 plastic-encapsulate diode package. Used on Antminer L7 and S19j Pro+ hashboards for low-voltage rectification, freewheeling, and small-signal protection at the local power conversion stages. 40V reverse voltage, 500mA continuous current, fast recovery <500ns — exactly the low-Vf, fast-switching characteristics needed for hashboard secondary rails.

Drop-in replacement when the original fails — common failure modes include shorted junction after a transient event, open after sustained over-current, or visible package damage. A fresh B0540W restores the rail to normal operation.

When to Replace the B0540W

• Local rail dropped on Antminer L7 / S19j Pro+ hashboard — failed Schottky breaking the freewheeling path.
• Shorted junction reading on diode-test — diode absorbed a transient beyond its rating.
• Visible damage on the SOD-123 package — cracking, blackening, or pad-level burn marks.
• Excessive heat on the diode under normal load — degraded junction approaching end-of-life.

B0540W SF Schottky Diode Specifications

FAQ — B0540W SF Schottky Diode

Q: How do I identify the B0540W on the board?

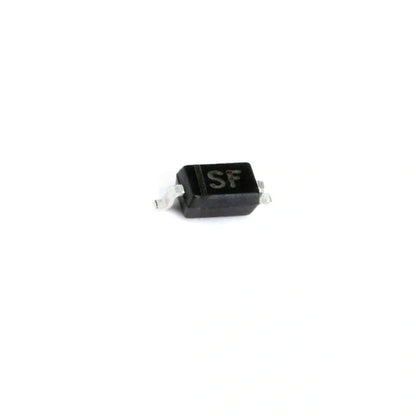

A: Silk marking "SF" on the SOD-123 package — that's the abbreviated marking convention for B0540W. The package itself is the standard SOD-123 surface-mount outline.

Q: How do I test the diode in-circuit?
A: Power off. Use DMM diode-test mode across the diode. Healthy reads ~0.3V forward (Vf ~510mV at full load), OL reverse. Shorted reads 0Ω both directions. Open reads OL both directions.

Q: Rework profile?
A: Standard SOD-123 hot air rework. Preheat to 100°C, hot air at 320°C with flux paste. Match cathode-band orientation to silk-screen before reflow — reverse polarity will fail violently on first power-up.

Q: Bulk pricing?
A: Yes — email contact@lys-sz.com for reel-quantity pricing on B0540W stock.
