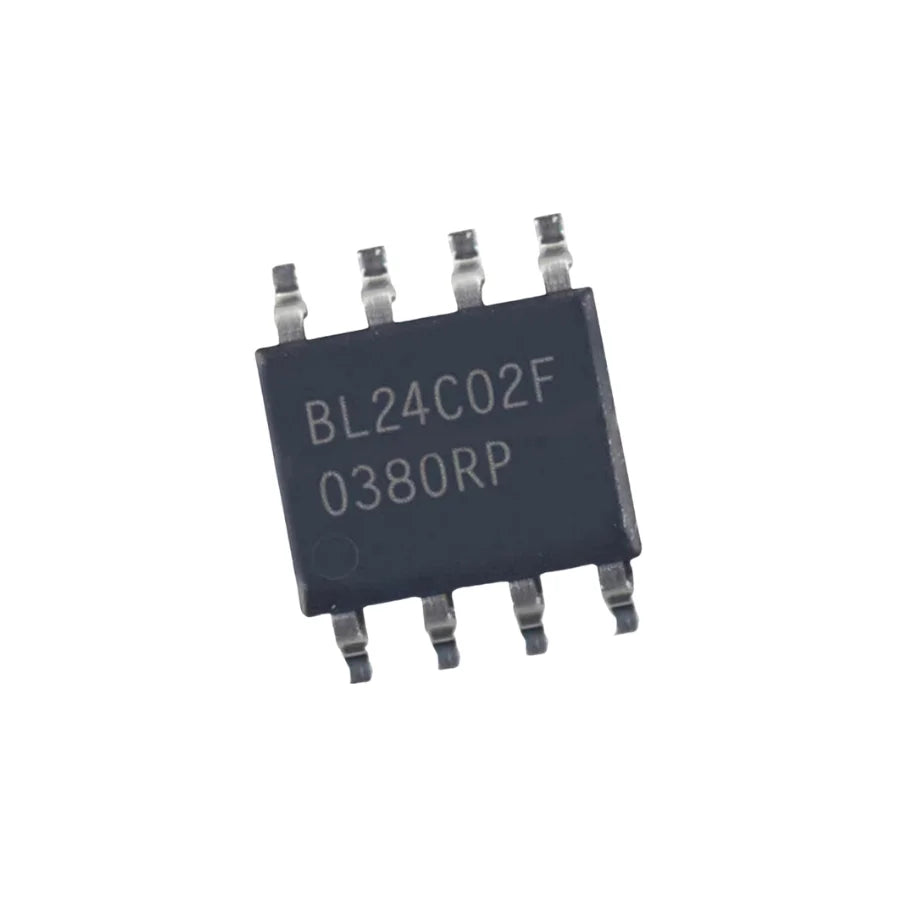

Maximize Data Storage and Protection with BL24C02F EEPROM
The BL24C02F EEPROM is an essential component located on the Whatsminer M30 M50 hash board, providing reliable and efficient data storage capabilities. With its 2048-bit capacity, organized into 256 words of 8 bits each, this EEPROM is optimized for industrial and commercial applications that demand low power consumption and low voltage operation.
The BL24C02F EEPROM is designed to be compatible with all I²C bidirectional data transfer protocols, ensuring seamless integration into your system. It features a page size of 16 bytes, allowing for efficient organization and retrieval of data.
High-Speed 2Kbit Serial EEPROM for Whatsminer M30 Hash Board
With a single supply voltage and high-speed operation of up to 1MHz, this EEPROM enables fast and efficient data transfers. It supports both random and sequential read modes, providing flexibility for accessing stored information.
The BL24C02F EEPROM offers convenient write capabilities, allowing you to update and modify data as needed. It provides fast write times of 3 milliseconds for individual bytes and supports page writes within 3 milliseconds. Additionally, the EEPROM allows partial page writes, enhancing efficiency and flexibility in data management.
The BL24C02F EEPROM ensures secure data handling with its write protect pin feature, providing essential hardware protection for important information. Schmitt trigger and filtered inputs enhance noise rejection, guaranteeing reliable data transmission even in challenging conditions. Further, 1 million write cycles and 100 year data retention ensure this EEPROM is both durable and long-lasting. Advanced ESD and latch-up protection with a 6000V HBM rating provide additional safeguards against electrostatic events.
Repair your Whatsminer M30 M50 hash board with the BL24C02F EEPROM, and experience high-speed data storage, low power consumption, and enhanced data protection. This reliable and efficient EEPROM is an ideal solution for industrial and commercial applications.
Technical Features:
Technical Feature |
Description |
Memory Capacity |
2 Kbits (256 bytes) |
Page Size |
16 bytes |
Supply Voltage |
Single supply voltage |
Maximum Operating Frequency |
1MHz |
Read Modes |
Random and sequential |
Write Times |
Write bytes: 3 ms |
|
Page writes: within 3 ms |
|
Allow partial page writes |
Write Protect Pin |
Hardware data protection |
Input Design |
Schmitt trigger, filtered input for noise rejection |
Endurance |
1 million write cycles |
Data Retention |
100 years |
ESD/Latch-up Protection (HBM Rating) |
6000V |
