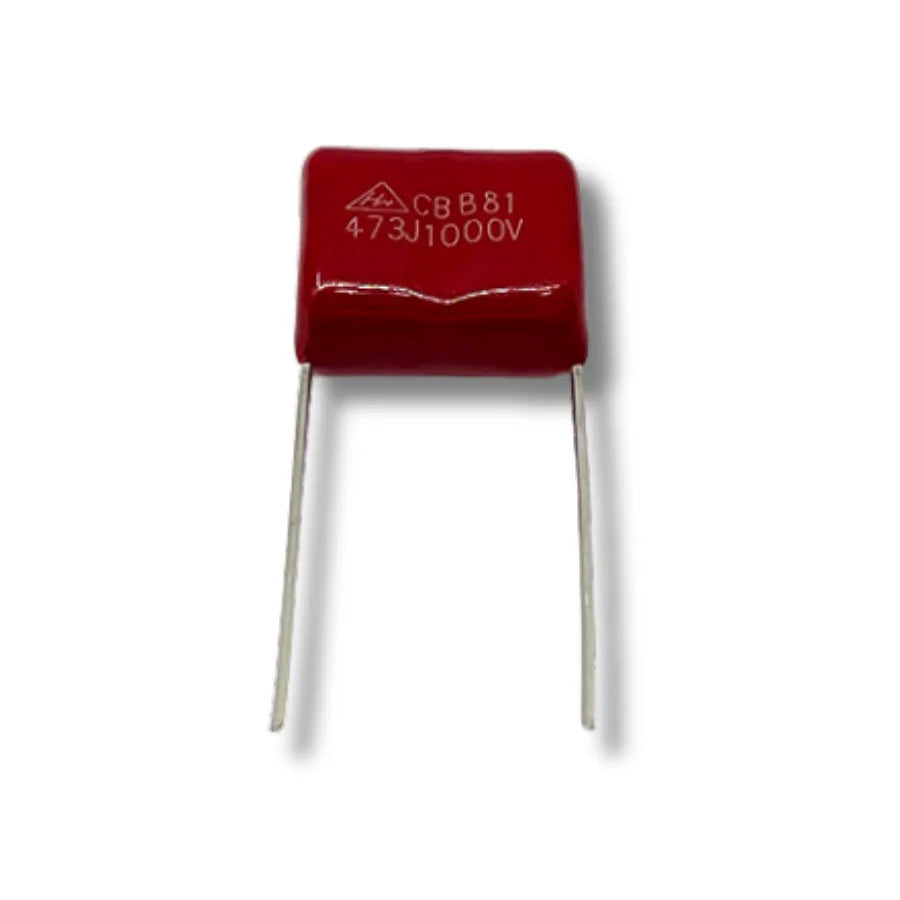

CBB81 High-Voltage Capacitor for Power Supply and High-Frequency Circuit Applications

Exceptional Metallized Polypropylene Film Capacitor for Stable, Long-Lasting Performance

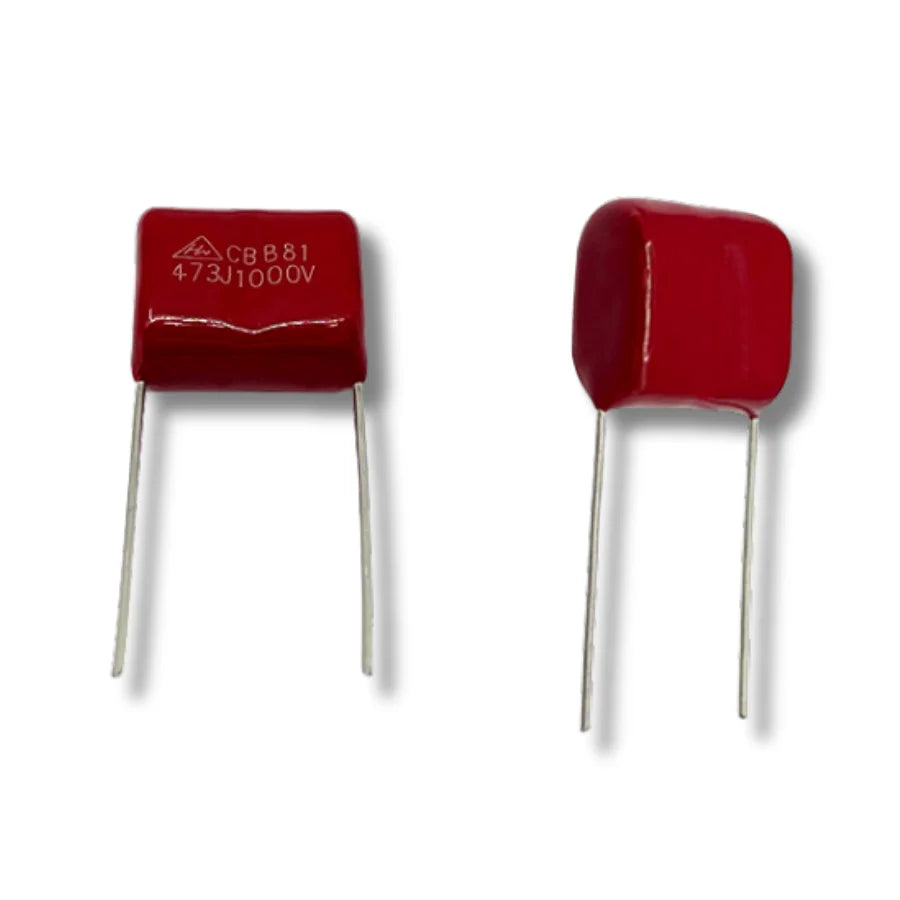

When it comes to capacitors, few can rival the power and versatility of the CBB81 473J 1000V Capacitor. This exceptional capacitor not only boasts a high voltage rating but can also withstand high frequency and high current levels, making it an essential component in power supply and high frequency circuits.

Unlike other polypropylene capacitors, the CBB81 capacitor utilizes metallized polypropylene film as its medium, wound without inductance and encapsulated by epoxy resin. Additionally, it comes with tinned copper-clad steel wire (CP wire) that is radially led out. Its outstanding design, with polypropylene and aluminum foil wound in series, makes it more robust and resilient, allowing it to withstand high voltage with ease.

Specifications:

• Climate Conditions: -40~+105℃/56D
• Rated Voltage: 630VDC, 1000VDC, 1250VDC, 1600VDC, 2000VDC, 3000VDC
• Capacity Error: J ±5%; K ±10%;
• Capacity Range: 0.001~0.47UF
• Loss Angle: ≤0.001 10KHZ

Boasting small high frequency loss, strong overcurrent capability, high insulation resistance, long life, stable temperature characteristics, and a loss tangent that decreases with the increase of operating frequency, the CBB81 capacitor is a must-have for any power supply repair or high frequency circuit application.
