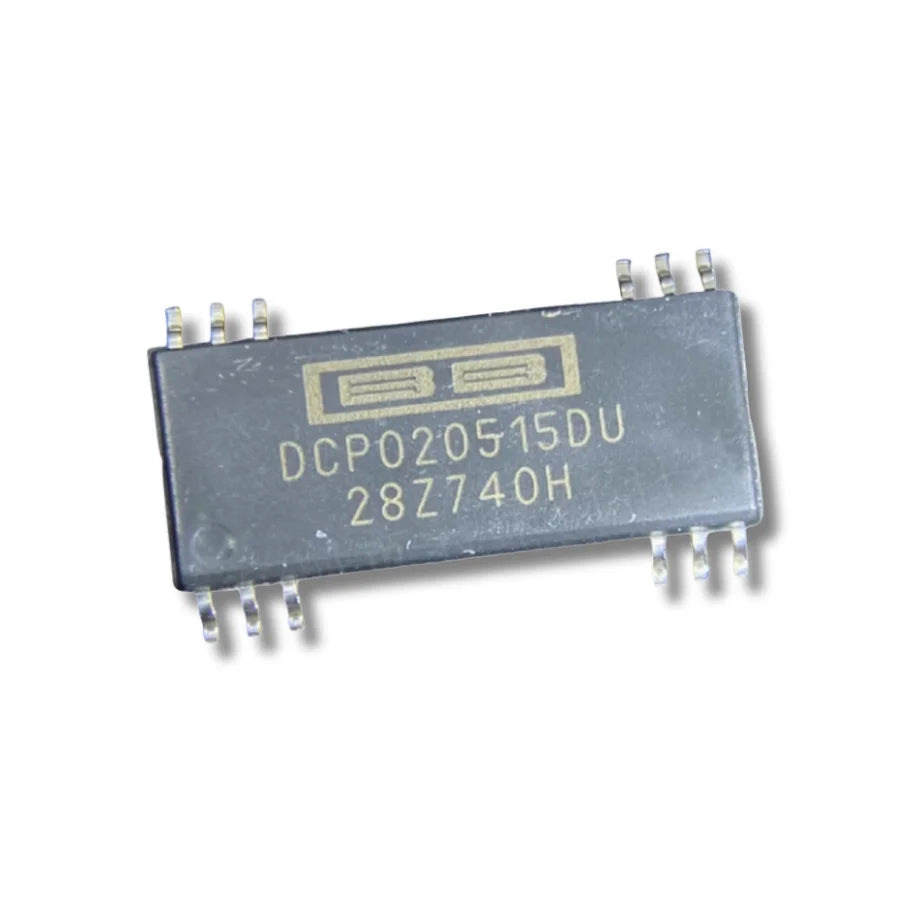

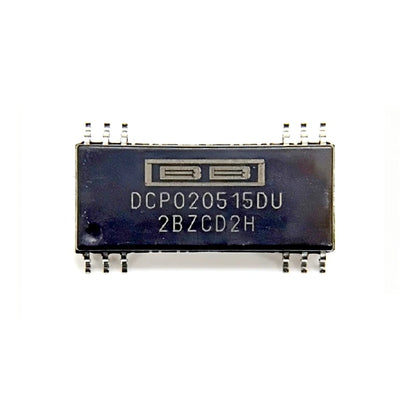

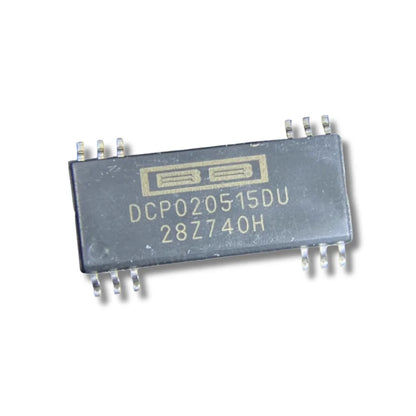

DCP020515DU 2W Isolated DC/DC Converter – SOIC-12

DCP020515DU 2W Isolated DC/DC Converter | ±15V ±67mA with 1kV Signal-Path Isolation (SOIC-12)

Upgrade your electronics designs with the DCP020515DU isolated DC/DC converter — a high-efficiency 2W module designed for signal-path isolation, ground-loop elimination, and industrial control systems. Part of the DCP02 series, this compact SOIC-12-300mil converter delivers ±15V dual outputs at 67mA per rail, ensuring stable bipolar power delivery in sensitive applications like data acquisition, test equipment, and instrumentation that need clean ±15V analog rails for op-amp front ends and ADC reference supplies.

Engineered for reliability, the part offers 1kV isolation (60VDC operational), EN55022 Class B EMC compliance, and built-in thermal and short-circuit protection. Device synchronisation lets multiple modules share a clock for cleaner system-level noise, and a 4.5V-5.5V input range accepts standard 5V logic rails directly. The UL1950-recognised module minimises external components while maximising performance — ideal for PCB repairs, industrial automation, and OEM spare parts inventory.

Compact SOIC-12 Design with UL1950 Certification & Short-Circuit Protection

• Dual ±15V output — bipolar rails at 67mA each, ideal for op-amp and ADC analog front ends.
• 1kV isolation (60VDC continuous) — clean galvanic separation between primary and secondary rails.
• UL1950 certified — meets standard safety requirements for industrial and medical electronics.
• EN55022 Class B EMC compliance — reduced electromagnetic interference in dense system designs.
• Up to 85% efficiency — keeps thermal dissipation manageable on tight boards.
• SOIC-12-300mil package — SMD-friendly for automated reflow assembly.

Where the DCP020515DU Fits

This is the right isolated DC/DC when a design needs clean ±15V analog rails referenced to a sensor or instrument-side ground different from the primary 5V supply. Common applications: precision strain-gauge bridge interfaces, isolated I/O modules for industrial PLCs, gate-driver bias rails on floating switches, medical-grade signal-conditioning front ends, and data-acquisition cards where signal integrity directly affects measurement accuracy.

DCP020515DU Isolated DC/DC Converter Specifications
