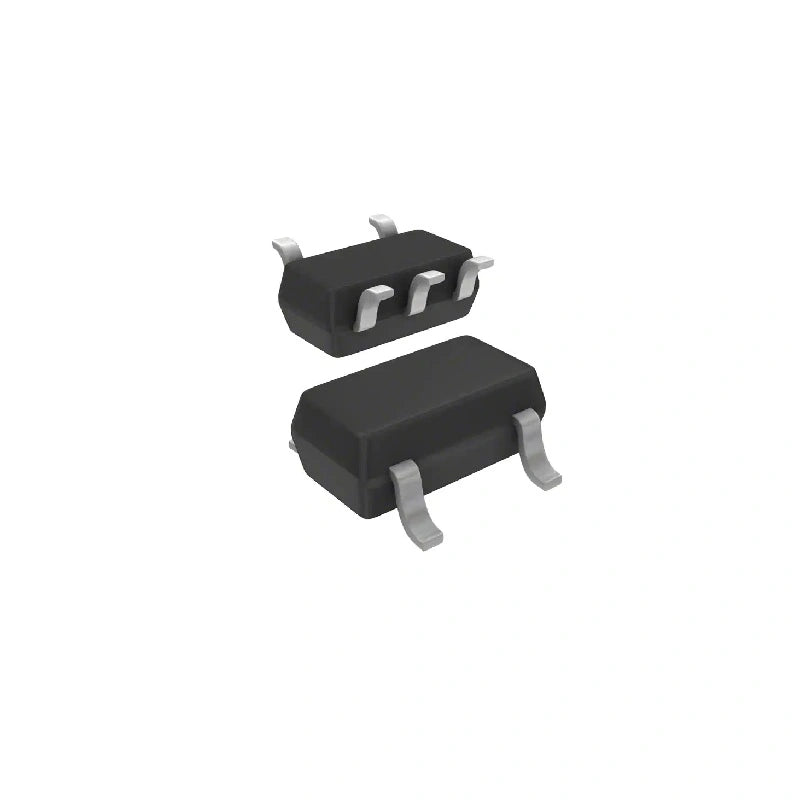

DSS5540X ZPS54 PNP Bipolar Transistor - ASIC Miner Antminer L3+ S9 Compatible

The DSS5540X ZPS54 is a PNP bipolar transistor designed to provide an excellent substitute for "6040" transistors commonly found on the hash boards of ASIC miners such as the Antminer L3+ and S9. This transistor offers reliable performance and is well-suited for automated assembly processes and medium-power applications.

High-Performance PNP Transistor for Hash Board Applications

With its low collector-emitter saturation voltage, the DSS5540X ZPS54 ensures efficient power transfer and minimizes energy loss, making it an ideal choice for applications with specific power requirements. It provides a maximum current collector (Ic) of 4A and a maximum voltage collector-emitter breakdown of 40V, allowing for robust operation in demanding environments.

Ideal Substitute for "6040" Transistors

The transistor exhibits a low Vce saturation of 375mV at 500mA and 5A current, further enhancing its efficiency and performance. It features a maximum collector cutoff current (ICBO) of 100nA, indicating minimal leakage current when the transistor is in the off state. The DC current gain (hFE) is specified at a minimum of 150 at 2A and 2V, ensuring reliable amplification of current signals.

With a power rating of 900mW and a transition frequency of 60MHz, the DSS5540X ZPS54 can handle medium-power applications with ease. It operates within a wide temperature range from -55°C to 150°C (junction temperature), making it suitable for use in various environmental conditions.

Technical Features Table:
