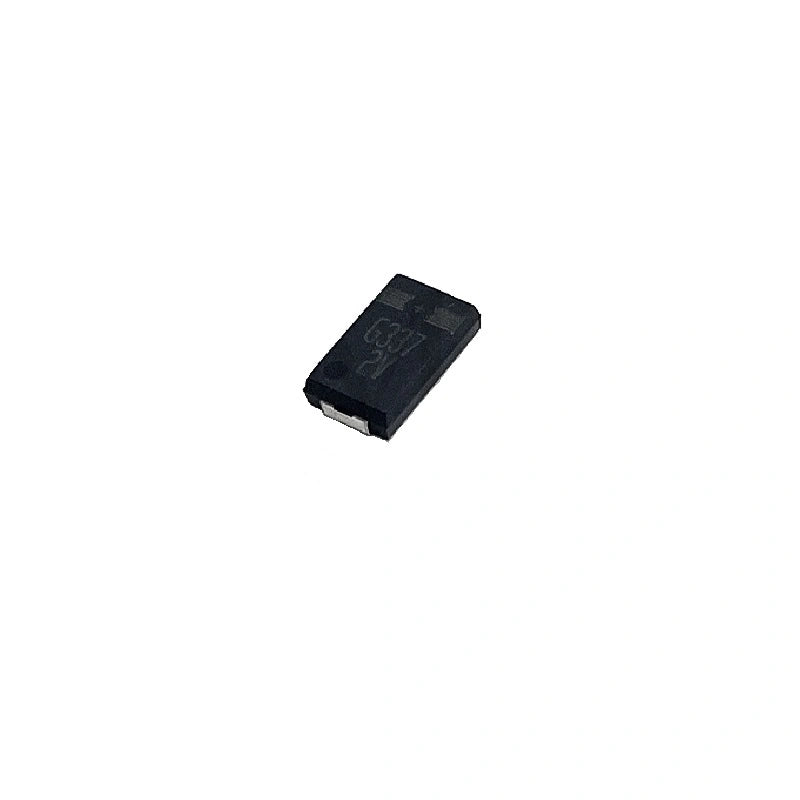

G337 2V Tantalum Electrolytic Capacitor for Antminer Iceriver Hashboard

G337 / T520V337M004ATE012 | 2V Tantalum Polymer Capacitor for Antminer & Iceriver Hashboard Vcore Filtering

The G337 T520V337M004ATE012 is a 2V tantalum polymer electrolytic capacitor used across Antminer and Iceriver hashboards (including S19XP, Iceriver KS3L and related designs). Combines low ESR, high ripple-current capability, and long service life — the exact profile required for filtering tight-tolerance low-voltage rails that feed ASIC chips at their Vcore input.

Low-voltage ASIC rails carry high transient currents and need very low ESR to keep voltage ripple within the chip's tolerance window. Tantalum polymer caps like the T520 series give the required ripple / ESR performance in a small footprint, which is why hashboard designs put them on the Vcore filter. Substituting a lower-grade aluminium electrolytic generally causes chain instability under load.

When to Replace the G337

• Hashboard reports dropped or short chips along one chain — Vcore rail degraded by failed filter capacitor.
• Thermal camera shows hotspot over the Vcore capacitor bank — failed cap dissipating heat.
• Shorted tantalum reads near 0Ω across its pads — classic dead-short failure mode.
• Visible discolouration or cratering on the part body — surface damage signaling internal failure.
• Chain instability under hashing load — voltage ripple exceeds chip tolerance, intermittent chip drop-outs.

G337 Tantalum Capacitor Specifications

FAQ — G337 2V Tantalum Capacitor

Q: How do I confirm the G337 is the failed component before replacing?
A: With the board off, measure resistance across the capacitor pads. Healthy reads OL (open) or megohms. Shorted G337 reads near 0Ω. Also verify the short is the capacitor itself rather than a downstream chip pulling the rail low — desolder one lead and re-measure to isolate.

Q: Can I substitute an aluminium electrolytic capacitor instead?
A: Not recommended. Aluminium electrolytics typically have higher ESR than tantalum polymer, which means the Vcore rail won't filter ripple as tightly. ASIC chips may drop in and out under load. Match the original tantalum polymer specification.

Q: Rework profile?
A: Hot air at 280-300°C with flux paste. Tantalum caps are polarised — verify the new part is oriented with the marked positive lead matching the original. Reverse polarity will fail violently on first power-up.

Q: Bulk pricing for repair benches?
A: Yes — email contact@lys-sz.com for reel / tray pricing on G337 stock.
