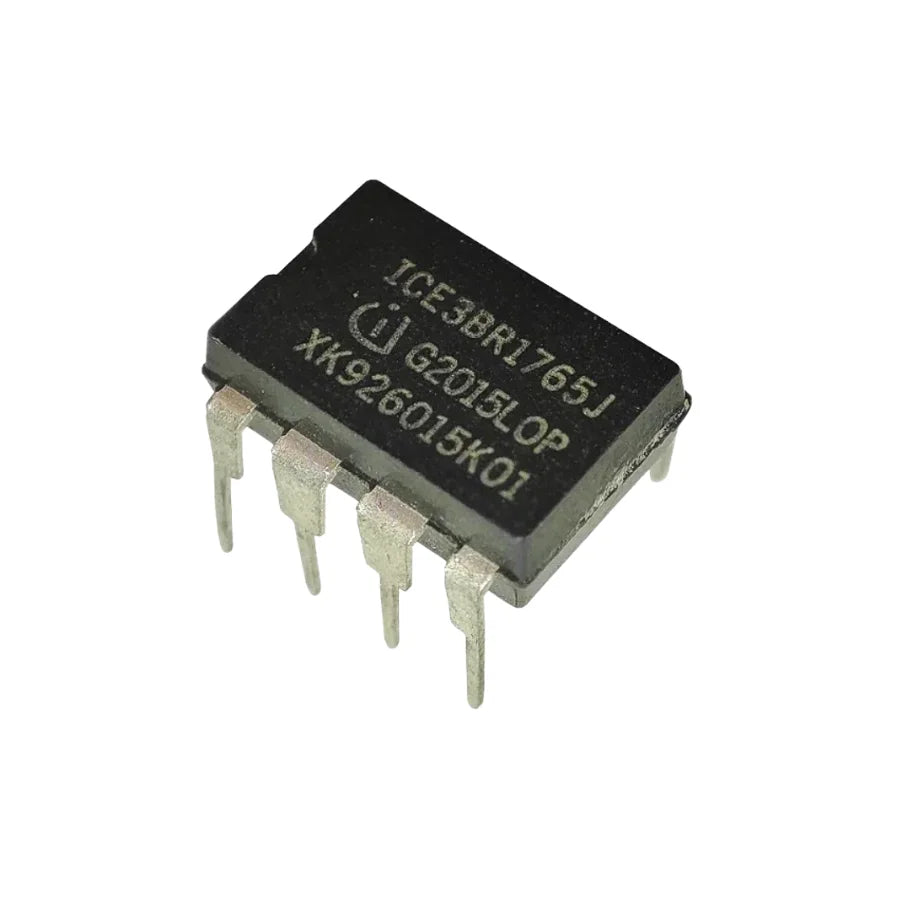

ICE3BR1765JZ XKLA1 Converter Offline Flyback Topology 65kHz PG-DIP-7-1

$1.78 USD
$1.78 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

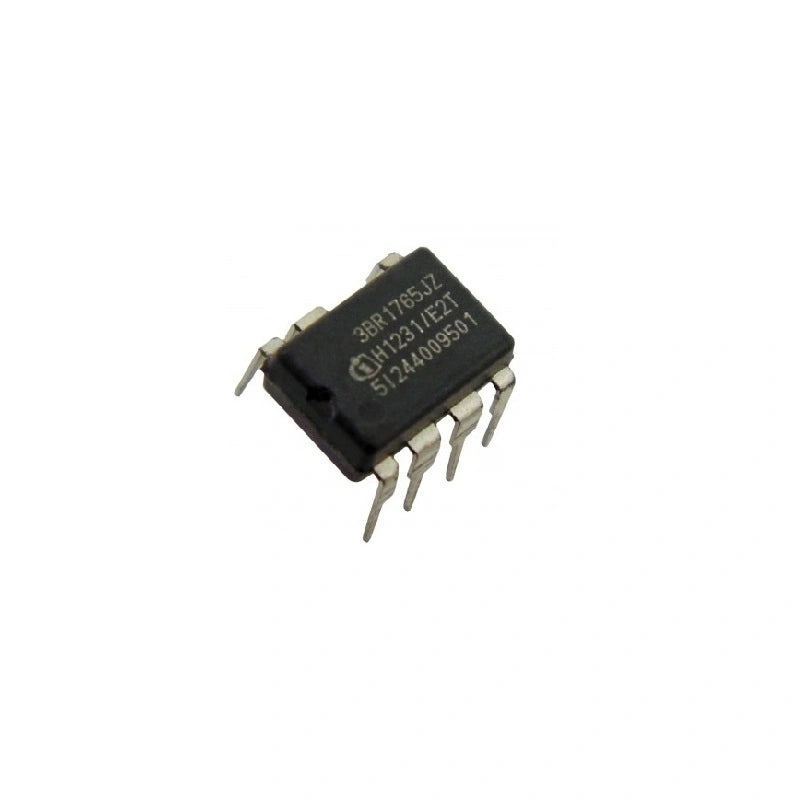

Efficient and Easy-to-Use Power Management with ICE3BR1765JZ XKLA1 Converter


The ICE3BR1765JZ XKLA1 Converter Offline DIP-7 PSU Repair is a highly efficient and user-friendly power management IC designed for repairing or designing 25W switch-mode power supplies (SMPS). This integrated IC features a 650V avalanche rugged CoolMOS, startup cell, and fixed frequency current mode flyback PWM controller in a DIP-7 package, making it suitable for a wide range of applications.

Versatile and Reliable Solution for 25W SMPS Repair or Design

The ICE3BR1765JZ XKLA1 Converter offers active burst mode operation, enabling extremely low standby power consumption. This feature helps to minimize energy waste and improve overall efficiency. Additionally, the frequency jittering function reduces electromagnetic interference (EMI) noise, ensuring a cleaner power output.

With an adjustable blanking window, the ICE3BR1765JZ XKLA1 Converter facilitates load jumps by preventing false triggering during sudden load changes. The high voltage startup cells enable quick power-up of the controller from the rectified line, enhancing the overall responsiveness of the system.

Featuring peak current control (current mode) and a fixed switching frequency of 65kHz, this power management IC delivers reliable performance. The integrated protection functions provide enhanced safety and durability, ensuring the longevity of the power supply.

The ICE3BR1765JZ XKLA1 Converter is suitable for various small power supply applications, including Blu-ray and DVD players, set-top boxes, game consoles, smart meters, chargers, and auxiliary power for high-power systems like LED TVs. Its accurate peak power limitation and modulated gate drive contribute to efficient power delivery and control.



Technical Features Table:

Category Integrated Circuits (ICs)
Power Management (PMIC)
AC DC Converters, Offline Switches
Package Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 18 V
Voltage - Supply (Vcc/Vdd) 10.5V ~ 25V
Duty Cycle 0.75
Frequency - Switching 65kHz
Power (Watts) 44.5 W
Operating Temperature -40°C ~ 150°C (TJ)
Package / Case 8-DIP (0.300", 7.62mm), 7 Leads
Mounting Type Through Hole
Base Product Number ICE3BR1765
