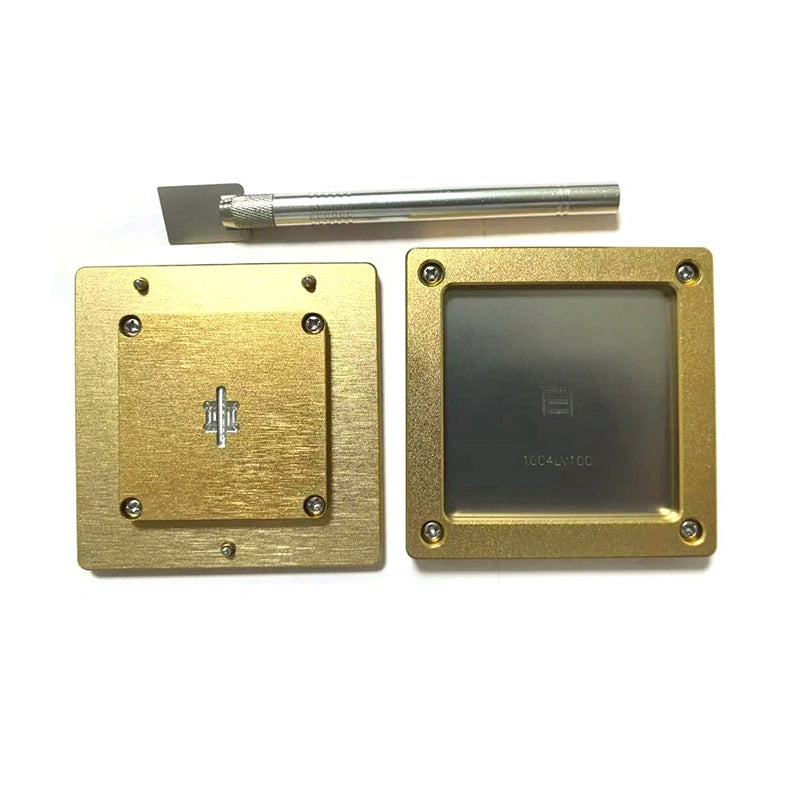

Iceriver KS5L ASIC Chip Tinning Stencil with Holder | Precision Reballing Fixture for KS5L Hashboard Chip Replacement
The Iceriver KS5L Tinning Stencil with Holder is the complete reballing fixture for ASIC chip replacement on Iceriver KS5L hashboards. The stencil aligns precisely over the KS5L chip footprint for uniform solder paste deposition; the integrated holder stabilises the work surface so the technician can focus on the paste application and chip placement steps. Together they make KS5L chip replacements quick, accurate and repeatable across the repair bench.
Built from steel mesh + carbon composite — the mesh holds precise hole alignment for the duration of its service life, the carbon backing provides static protection to the KS5L chip's gate structures during placement and reflow. The full assembly is high-temperature resistant, high-temperature elastic, and wear-resistant — survives repeated reflow cycles without dimensional drift or static damage to the chip.
When to Use the KS5L Tinning Stencil
- KS5L ASIC chip replacement on Iceriver hashboards — primary use case for restoring failed chip positions.
- Repair-bench volume work — repeatable chip reballing across multiple KS5L boards per shift.
- Post-failure salvage workflow — fresh paste application around a salvaged chip before reseating.
- Pre-deployment refurbishment — chip-level rework on used KS5L boards before redeployment.
- Repair shop standardisation — fixture-driven workflow replaces freelance manual paste application for consistent quality.
Iceriver KS5L Tinning Stencil Specifications
| Feature | Specification |
|---|---|
| Compatibility | Iceriver KS5L hashboards (1004LV100 ASIC chip footprint) |
| Material | Steel mesh + carbon composite |
| Temperature Resistance | High (sustained reflow duty) |
| Elasticity | High-temperature elastic (no deformation) |
| Wear Resistance | Withstands repeated reflow cycles |
| Static Protection | Carbon backing dissipates ESD during chip handling |
| Holder Included | Yes — stabilises the stencil during paste deposition |
| Service Life | Multiple hundreds of reballing cycles before mesh drift |
| Condition | Brand New |
FAQ — Iceriver KS5L Tinning Stencil
Q: Does the kit include the chip itself?
A: No — this is the tinning stencil + holder fixture only. The KS5L replacement chips (1004LV100) ship under a separate listing. For the complete chip replacement workflow, pair this fixture with the matching ASIC chip stock.
Q: Will this stencil also fit the KS5M hashboard?
A: Designed specifically for the KS5L chip footprint. KS5M and other Iceriver models use different chip layouts — check the chip part number against the stencil compatibility before substituting.
Q: How critical is the static protection feature?
A: The KS5L's CMOS gate structures are ESD-sensitive. A single uncontrolled discharge can latently damage a chip's threshold without producing immediate visible failure — the chip works initially then fails after a few hours of mining. Carbon-backed stencils prevent this silent failure mode.
Q: Bulk pricing for repair shops?
A: Yes — email contact@lys-sz.com with your monthly volume and we'll send tier pricing on stencils + matching ASIC chips.
