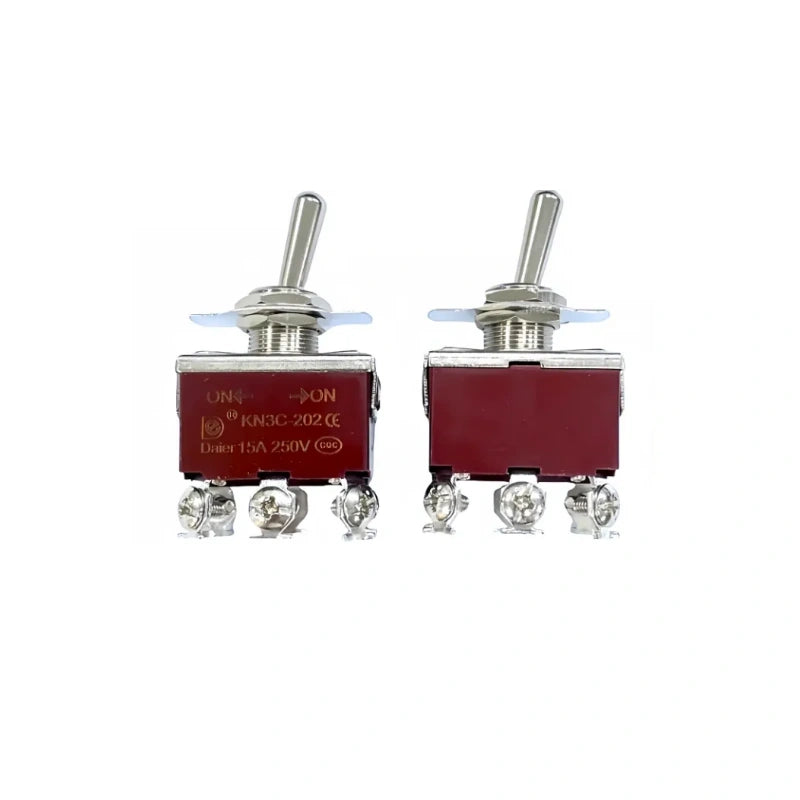

KN3C-202 Toggle Switch – DPDT ON-ON 15A/250V, 6-Pin Industrial Grade
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
KN3C-202 Toggle Switch | DPDT ON-ON 15A/250V 6-Pin Medium Profile Industrial Grade
The KN3C-202 (also marked KN3C202) is a heavy-duty DPDT toggle switch designed for precision circuit control in industrial, medical, and communication equipment. With its 15A/250V rating and ON-ON functionality, this medium-profile switch delivers robust performance in space-constrained applications — exactly the part for control panels, lab equipment, and instrumentation front panels where reliable manual switching is required.
The 6-pin DPDT layout enables dual-circuit control or polarity reversal in a single mechanical action, the contact resistance stays low across the part's mechanical life, and the medium-profile body fits standard panel-mount cutouts. Operating temperature spans -30°C to +85°C — wide enough for most industrial deployments and most outdoor-adjacent enclosures.
15A/250V Rating & Wide Temperature Range — Reliable Circuit Switching for Demanding Applications
- 15A/250VAC capacity — handles motor controls, power distribution, and instrumentation circuits.
- DPDT (ON-ON) configuration — enables dual-circuit control or polarity reversal.
- Low contact resistance — stable current flow in sensitive measurement systems.
- Wide temperature tolerance — operates reliably in extreme environmental conditions.
- Compact 6-pin design — fits control panels, medical devices, and telecom enclosures.
- 50,000+ mechanical operations — high-cycle reliability rating.
Why Engineers Specify This Switch
Zinc alloy construction withstands vibration in PLCs, CNC machines, and test equipment. The medium-profile body suits HMI panels, lab equipment, and power supplies where space is constrained but operator access still matters. Typical applications include circuit selection in industrial automation systems, mode switching for medical diagnostic equipment, power routing in telecom base stations, and function control in commercial appliances.
KN3C-202 Toggle Switch Specifications
| Parameter | Specification |
|---|---|
| Switch Type | DPDT ON-ON |
| Current Rating | 15A @ 250VAC |
| Contact Configuration | 6-Pin |
| Mechanical Life | 50,000+ operations (typical) |
| Operating Temperature | -30°C to +85°C |
| Mounting Style | Panel Mount |
| Profile | Medium Size |
