NCT218 T2F T2Y T2H Temperature Sensor for Antminer S17+ S17e L7 Hashboard repair

NCT218 T2F T2Y T2H Temperature Sensor for Antminer S17+ S17e L7 Hashboard repair

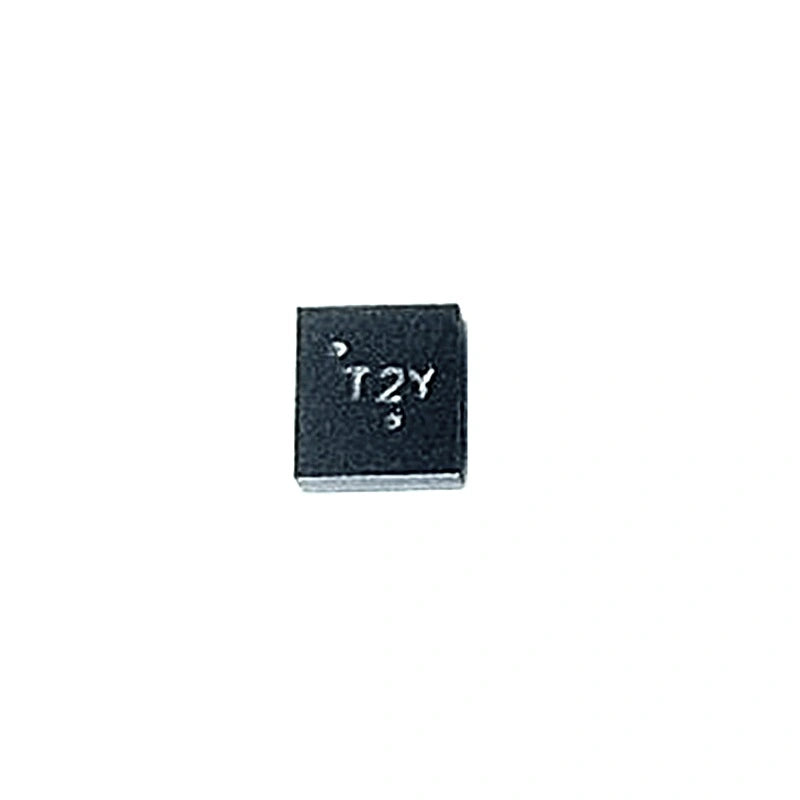

The NCT218 temperature sensor chip is an essential component for repairing your Antminer S17+ S17e L7 hash board. This dual-channel digital thermometer and under temperature/over temperature alarm is marked T2* by silkscreen, with common silkscreen options including T2F, T2Y, and T2H.

With its small DFN package and low voltage operation (1.4V to 2.75V), the NCT218 temperature sensor chip is compact and versatile, making it ideal for use in thermal management systems requiring low power and size. It can measure the temperature of a remote thermal diode accurate to ±1°C and the ambient temperature accurate to ±1.75°C, ensuring precise and reliable temperature control.

Precise and Reliable Temperature Control for Your Mining Rig

This temperature sensor chip also features low quiescent current (44μA normal mode max, 20μA shutdown max), power-saving shutdown mode, and an operating temperature range of -40°C to +125°C. It has series resistance cancellation up to 500Ω, low D-bias for operation with low voltage processors, and a 2-wire I2C serial interface. It also has programmable over/undertemperature limits, making it highly customizable and adaptable to a range of applications.
