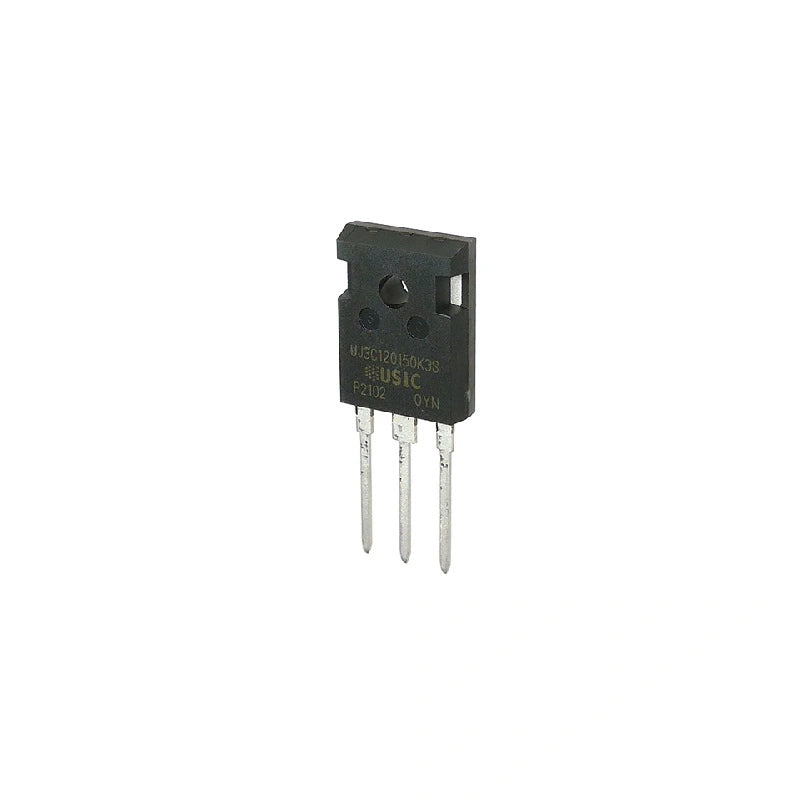

Qorvo UJ3C120150K3S N-Channel MOSFET 1200V 18.4A 166.7W TO-247-3 for Bitmain APW11 Power Supply
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
Qorvo UJ3C120150K3S N-Channel MOSFET
Enhance your power electronics applications with the Qorvo UJ3C120150K3S N-Channel MOSFET. This discrete semiconductor component is designed for high-voltage and high-power applications. With a drain-to-source voltage (Vdss) of 1200V and a continuous drain current (Id) of 18.4A (Tc) at 25°C, this MOSFET delivers reliable and efficient performance.
High-Voltage and High-Power Qorvo UJ3C120150K3S N-Channel MOSFET for APW11 Power Applications
The UJ3C120150K3S features SiCFET (Cascode SiCJFET) technology, offering enhanced power handling capabilities. Its low on-resistance (Rds On) of 180mOhm @ 5A, 12V ensures minimal power loss. The MOSFET has a maximum gate-source voltage (Vgs) of ±25V and a gate threshold voltage (Vgs(th)) of 5.5V @ 10mA.
With a maximum power dissipation of 166.7W (Tc) and an operating temperature range of -55°C to 175°C (TJ), the UJ3C120150K3S is suitable for demanding environments. It is available in a TO-247-3 package, allowing for easy through-hole mounting.
Technical Features:
| Feature | Description |
|---|---|
| FET Type | N-Channel |
| Technology | SiCFET (Cascode SiCJFET) |
| Drain to Source Voltage (Vdss) | 1200V |
| Current - Continuous Drain (Id) @ 25°C | 18.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Rds On (Max) @ Id, Vgs | 180mOhm @ 5A, 12V |
| Vgs(th) (Max) @ Id | 5.5V @ 10mA |
| Gate Charge (Qg) (Max) @ Vgs | 30nC @ 15V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 738pF @ 100V |
| Power Dissipation (Max) | 166.7W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Base Product Number | UJ3C120150 |
