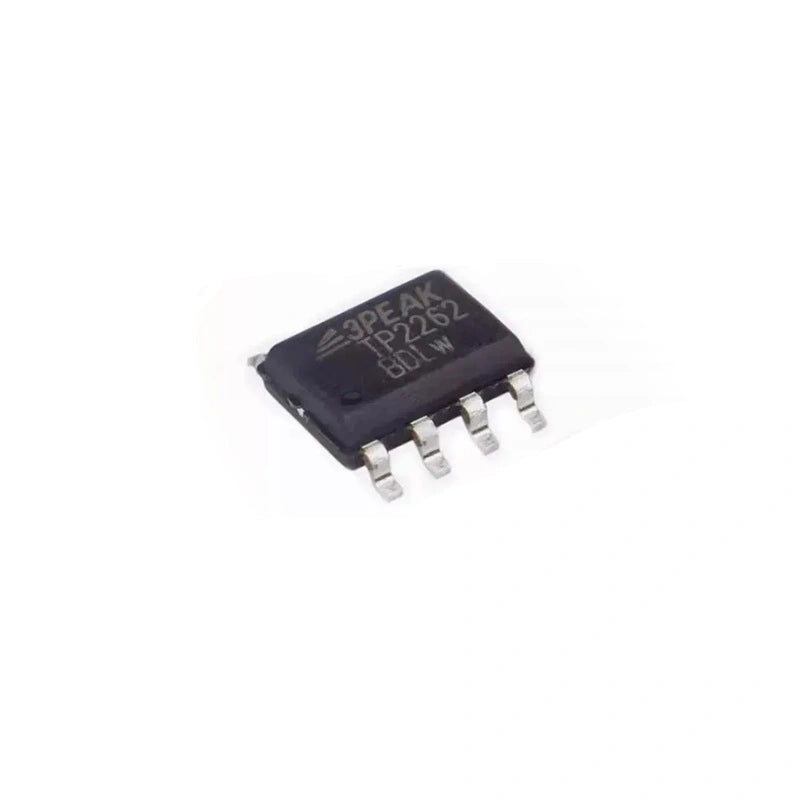

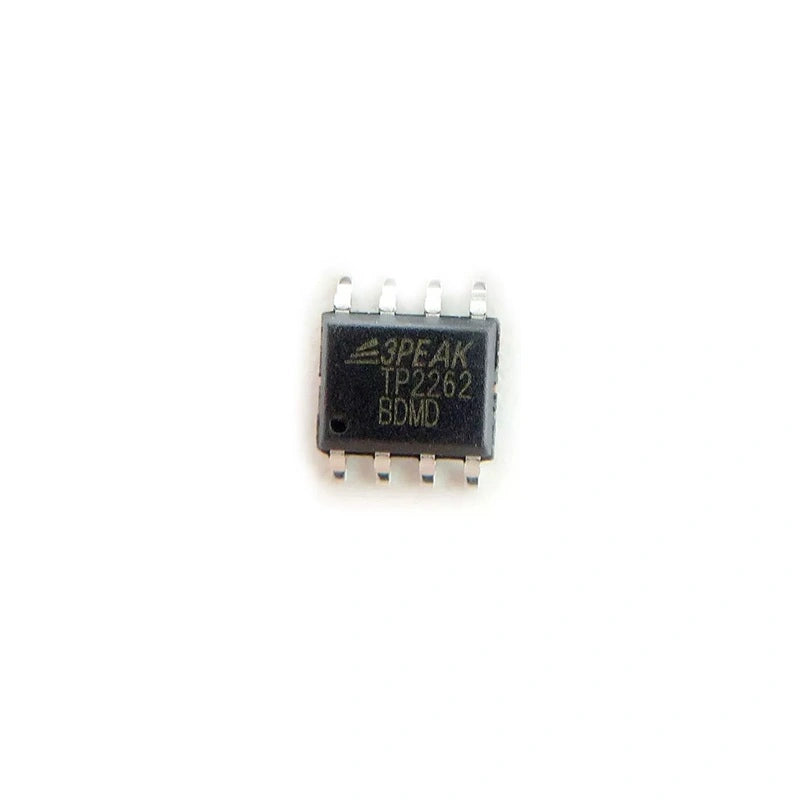

High-Performance TP2262 Voltage Amplifier Replacement Parts for Antminer APW11 Power Supply
Ensure the stability and performance of your Antminer APW11 power supply with the TP2262 Voltage Amplifier Replacement Parts. These high-quality amplifier components from 3PEAK provide low offset, low power consumption, and a stable high-frequency response, making them ideal for various applications.
Low Power Consumption and Stable High-Frequency Response for Reliable Power Supply Repair
The TP2262 amplifiers utilize proprietary and patented design techniques from 3PEAK, delivering excellent AC performance with a 3.5MHz bandwidth, 15V/μs slew rate, and low distortion. With a typical quiescent current of only 700μA per amplifier, they offer efficient power consumption.
Operating within a wide supply voltage range of 3V to 36V, these replacement parts can be used as comparators with a differential input voltage range of the supply rails. They feature rail-to-rail output and fast response, including a 3.5 MHz bandwidth, 15V/μs slew rate, and 100ns overload recovery.
The TP2262 amplifiers exhibit low offset voltage, ensuring precise signal amplification. They have extremely low total harmonic distortion plus noise (THD+N) of 0.0005% at gain = 1 and 1kHz, guaranteeing high-quality audio performance. With excellent electromagnetic interference rejection ratio (EMIRR) of 60dB at 900MHz, they provide reliable signal integrity.
These replacement parts offer robust protection with 2KV HBM (human body model) and 1KV CDM (charged device model) ESD protection, as well as 150mA latch-up current. They can operate in a wide temperature range from -40°C to 125°C, ensuring reliability in various environments.
Technical Features:
Feature |
Details |
Supply Voltage |
3V to 36V |
Quiescent Current (Per Channel) |
700μA maximum |
Bandwidth |
3.5MHz |
Slew Rate |
15V/μs |
Offset Voltage |
±2mV (25°C), ±2.5mV (-40°C to 85°C), ±3mV (-40°C to 125°C) |
THD+N |
0.0005% (gain = 1, 1kHz) |
EMIRR |
60dB (900MHz) |
ESD Protection |
2KV HBM, 1KV CDM |
Latch-Up Current |
150mA |
Operating Temperature Range |
-40°C to 125°C |
