SGM8304YTS14 100MHz High Voltage Rail-to-Rail Output Amplifiers for Antminer S21
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product

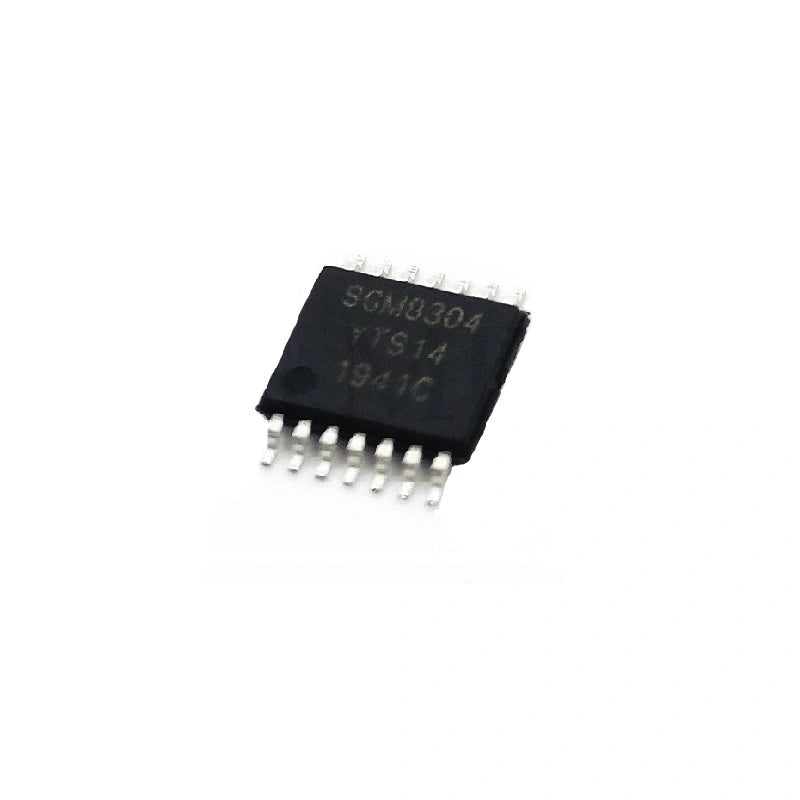

SGM8304YTS14 100 MHz Quad Rail-to-Rail Op-Amp – Antminer S21
The SGM8304YTS14 is a quad high-voltage rail-to-rail output op-amp used on Antminer S21 hashboards for signal conditioning on the control / sense path. Unity-gain stable with 100 MHz bandwidth, the device delivers high-speed performance with stable, reliable output under varied load conditions.
Wide supply range (+4.5 V to +12 V single supply or ±2.25 V to ±6 V dual) and 103 mA output drive handle the demanding loads on miner hashboards. Low differential gain/phase (0.02 % / 0.02 °) preserves accurate signal reproduction across the analog chain.
Typical Use Cases
- Hashboard signal conditioning — sense / measurement / feedback amplification.
- Failed op-amp replacement — restore signal chain after a fault event.
- ADC interface buffering — drive ADC inputs cleanly with rail-to-rail output.
- Production refurbishment — bulk op-amp stock for S21 rework lines.
SGM8304YTS14 Specifications
| Feature | Description |
|---|---|
| Part Number | SGM8304YTS14 |
| Function | Quad high-voltage rail-to-rail output op-amp |
| Bandwidth | 100 MHz (unity-gain stable) |
| Power Supply | +4.5 V to +12 V single / ±2.25 V to ±6 V dual |
| Output Drive | 103 mA |
| Differential Gain | 0.02 % |
| Differential Phase | 0.02 ° |
| Operating Temperature | -40 °C to +85 °C |
| Package | TSSOP-14 |
| Compatible Board | Antminer S21 hashboard |
| Condition | Brand New |
FAQ — SGM8304YTS14 Op-Amp
Q: SGM8304 single-channel variant available?
A: The SGM8304 family covers single, dual and quad variants. SGM8304YTS14 = quad TSSOP-14. Match the package marking on your board.
Q: Drop-in for failed S21 op-amp?
A: Yes — verify the silk marking and footprint match. SGM8304YTS14 is the OEM-spec part for S21 hashboard signal-conditioning sockets.
Q: Bulk pricing?
A: Yes — email contact@lys-sz.com.
