SMBJ190A PA TVS Diode for Antminer L7 D7 S21 T21 Hash Board repair

SMBJ190A PA TVS Diode | 190V / 307.8V Clamp Surge Suppressor for Antminer L7 / D7 / S21 / T21 Hashboard Repair

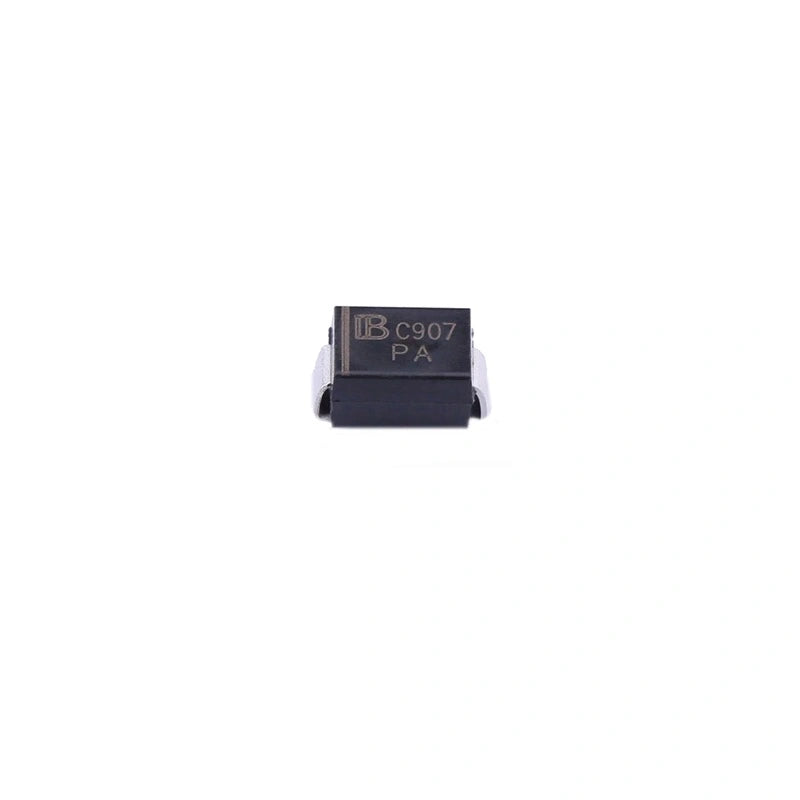

The SMBJ190A (silk marking PA) is a transient voltage suppressor (TVS) diode used on Antminer L7, D7, S21 and T21 hashboards to protect sensitive components from voltage spikes — switching transients on power rails, ESD events during handling, lightning-induced surges propagating through the mains. 190V working voltage, 232V breakdown, 307.8V clamping voltage — sized for the high-voltage protection points on these hashboards.

Drop-in replacement when the original sacrifices itself absorbing a surge (its job) or degrades from years of mains transients. A fresh SMBJ190A restores the protection point at the affected position.

When to Replace the SMBJ190A

• Visible damage on the diode body — cracking, blackening, or pad-level burn after a transient event.
• Shorted junction reading on diode-test — TVS absorbed a surge beyond its rating and sacrificed itself.
• Hashboard scan failure on the affected rail after a known fault event — failed TVS may be holding the rail in clamp.
• Preventive replacement on returns from sites with poor mains quality — TVS that has absorbed multiple events near its rating is degraded.

SMBJ190A Specifications

FAQ — SMBJ190A TVS Diode

Q: Can I substitute a different SMBJ working voltage?
A: No — match exact part number. Lower voltage rating = false clamping during normal transients; higher = surge passes through before clamping kicks in. The 190V rating is matched to the rail voltage at this position on the L7/D7/S21/T21 hashboards.

Q: Why does a TVS diode short when it absorbs a surge?
A: That's its design behaviour — TVS clamps overvoltage by conducting the surge to ground. Large surges fuse the internal junction into a low-impedance path, sacrificing the diode to protect downstream components. Always replace a sacrificed TVS along with any other components in the surge path.

Q: How do I test the TVS in-circuit?
A: Power off. DMM diode-test mode — healthy TVS shows OL in both directions at low test voltage (well below VR). Shorted reads 0Ω. Verify pad continuity before condemning the part.

Q: Bulk pricing?
A: Yes — email contact@lys-sz.com for tape-and-reel quantities on SMBJ190A stock.
