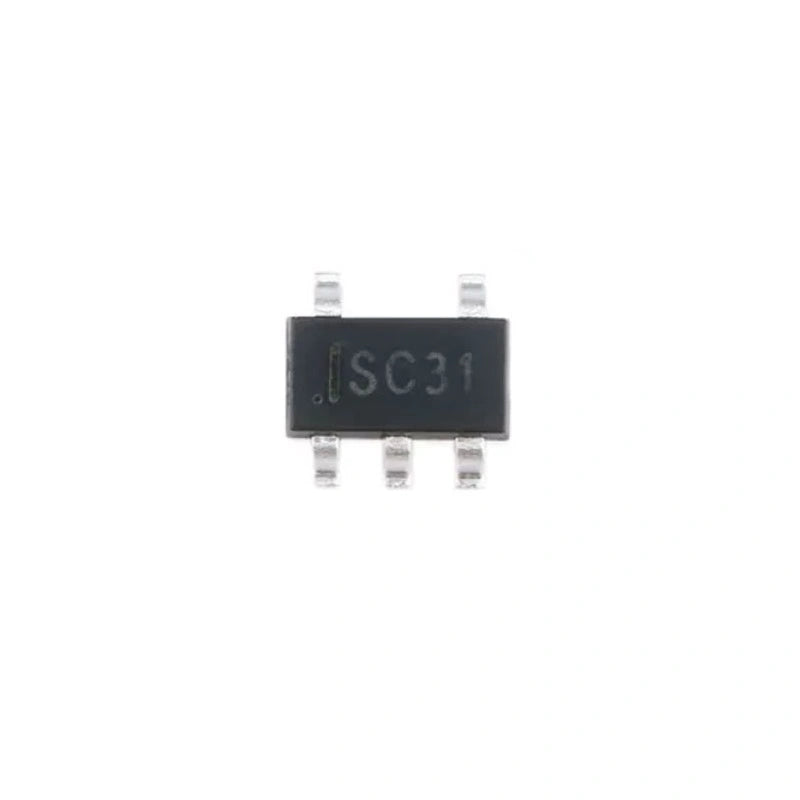

SPX5205M5-L-5-0/TR SC31 Low Dropout Positive Voltage Regulator for Battery-Powered Applications

$0.19 USD
$0.19 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

Secure checkout with
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • Union Pay
  • Maestro
  • Bitcoin
  • Discover

About the Product

Efficient and Reliable Voltage Regulation with the SPX5205M5-L-5-0/TR SC31


The SPX5205M5-L-5-0/TR SC31 is a positive voltage regulator designed to provide efficient and reliable voltage regulation in battery-powered applications. This regulator offers very low dropout voltage, output noise, and ground current, making it a highly efficient solution. It comes in a small 5-pin SOT-23 package, offering convenience and ease of integration.

Ideal for Battery-Powered Applications with Low Dropout Voltage and Minimal Ground Current

Product Highlights:

  1. Low Dropout Voltage and Ground Current:
    The SPX5205M5-L-5-0/TR SC31 features an exceptionally low dropout voltage, ensuring efficient operation even with small input-output voltage differentials. It also boasts a low ground current of only 750µA at 100mA output, minimizing power consumption and maximizing battery life. The output voltage (VOUT) has a tolerance of less than 1% and is temperature compensated, providing stable and accurate voltage regulation.

  2. Wide Range of Fixed and Adjustable Output Voltages:
    This voltage regulator is available in various fixed output voltage options, including 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, and 5.0V. Additionally, an adjustable version is also available, allowing for fine-tuning of the output voltage to suit specific application requirements.

  3. Additional Key Features:
    The SPX5205M5-L-5-0/TR SC31 incorporates several important features to enhance its performance and reliability. These features include zero off-mode current, reverse battery protection, thermal shutdown, and current limit protection. The zero off-mode current ensures minimal power consumption when the regulator is not in use, maximizing energy efficiency. The reverse battery protection safeguards the regulator against potential damage caused by reverse polarity connection. The thermal shutdown and current limit protection mechanisms protect the regulator and the connected circuitry from excessive heat and current, ensuring safe and reliable operation.

The SPX5205M5-L-5-0/TR SC31 is an excellent choice for a wide range of battery-powered applications. Its efficient voltage regulation, low dropout voltage, minimal ground current, and additional key features make it a reliable solution for various electronic systems.

Technical Specifications:

  • Dropout Voltage: Very Low
  • Output Noise: Very Low
  • Ground Current: 750µA at 100mA
  • Output Voltage Tolerance: <1%
  • Package Type: 5-pin SOT-23
  • Fixed Output Voltage Options: 1.2V, 1.5V, 1.8V, 2.0V, 2.5V, 2.8V, 3.0V, 3.3V, and 5.0V
  • Adjustable Version: Available
