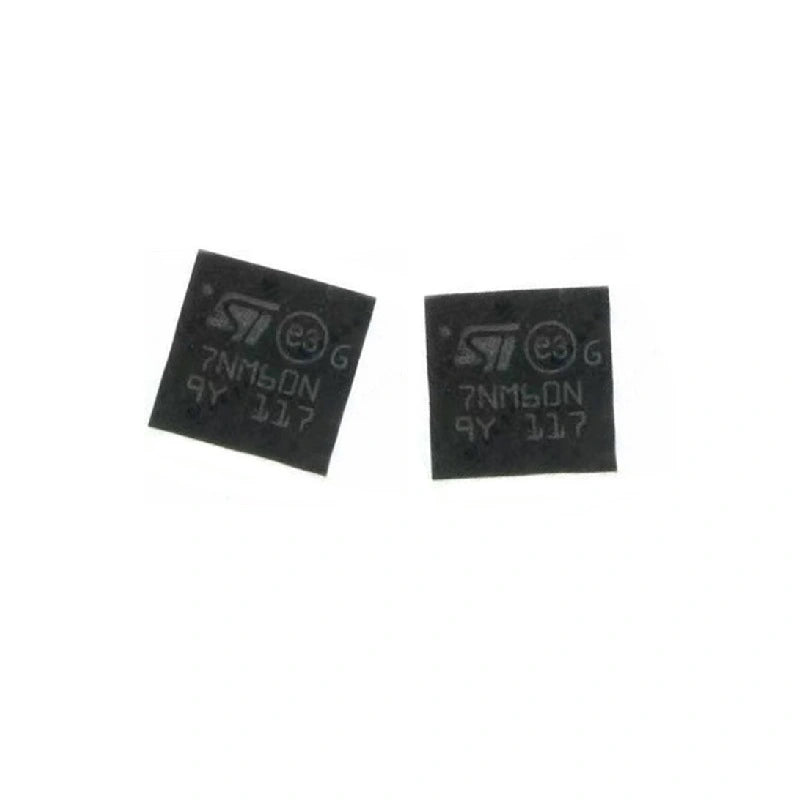

STL7NM60N 600V 5.8A N-Channel Power MOSFET High Efficiency and Performance
Couldn't load pickup availability
Have questions about this product? Our team is here to help — just reach out on WhatsApp.
💬 Contact Us on WhatsAppAbout the Product
STL7NM60N Power MOSFET - Revolutionary Design for Unmatched Efficiency
Experience unmatched efficiency with the STL7NM60N Power MOSFET, a revolutionary N-channel device designed for high-efficiency converters. Featuring a vertical structure and a striped layout, this MOSFET sets new standards with one of the world's lowest on-resistance and gate charges.
High-Efficiency N-Channel Power MOSFET for Demanding Switching Applications
The STL7NM60N power MOSFET is specifically designed to meet the demands of high-efficiency converters. Its exceptional low on-resistance and gate charges ensure efficient power transfer and minimize power losses, resulting in improved overall system performance.
Exceptional Performance and Reliability for Industrial Equipment, Motor Drives, and Power Supplies
Ideal for demanding switching applications, the STL7NM60N offers versatility in various industries. Whether you require precise power control in industrial equipment, motor drives, or power supplies, this MOSFET delivers reliable and efficient performance.
Repair your power conversion systems with the STL7NM60N Power MOSFET, featuring a revolutionary design that sets new benchmarks in efficiency, performance, and reliability.
STL7NM60N Technical Features:
| Technical Features | |
|---|---|
| FET Type | N-channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600V |
| Continuous Drain Current (Id) @ 25°C | 5.8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Maximum On-Resistance (Rds on) @ Id, Vgs | 900mΩ @ 2.5A, 10V |
| Maximum Gate-Source Threshold Voltage (Vgs(th)) | 4V @ 250µA |
| Maximum Gate Charge (Qg) @ Vgs | 14nC @ 10V |
| Maximum Vgs | ±25V |
| Maximum Input Capacitance (Ciss) @ Vds | 363pF @ 50V |
| Maximum Power Dissipation | 68W (Tc) |
| Operating Temperature | -55°C to 150°C (TJ) |
