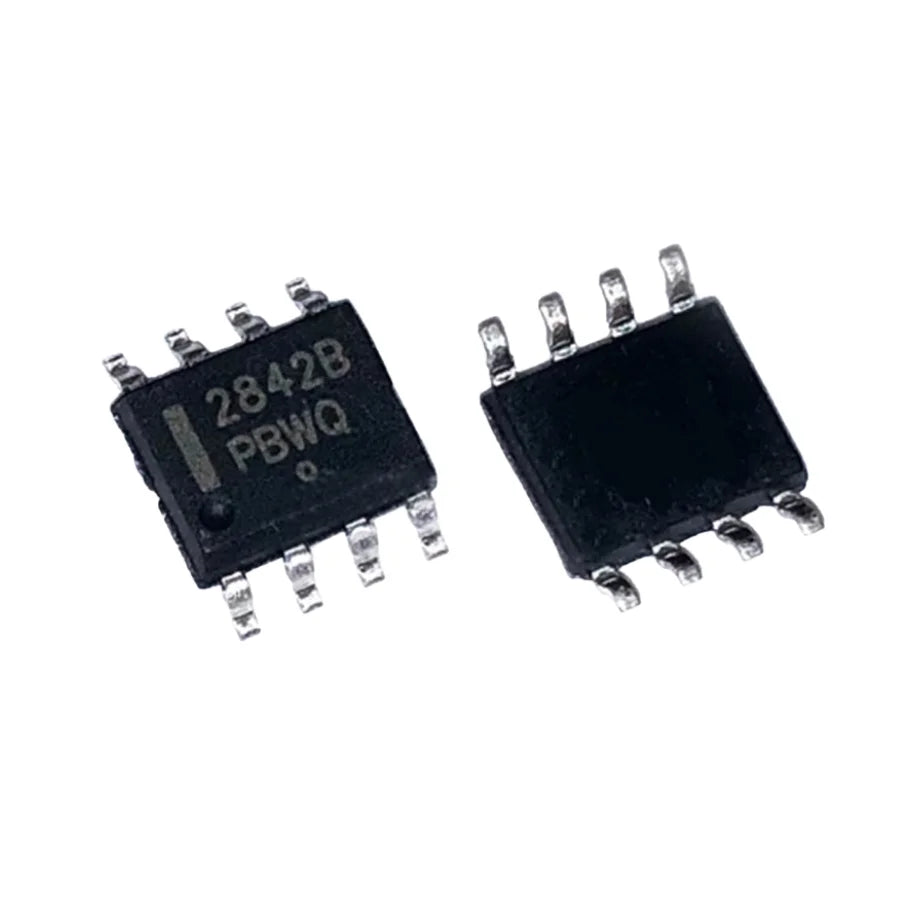

UC2842B Current Mode Controller IC for Bitmain PSU

UC2842B Current Mode Controller IC | High-Performance PWM Switching Controller Replacement for Bitmain APW9 / APW12 / Avalon PSU Repair

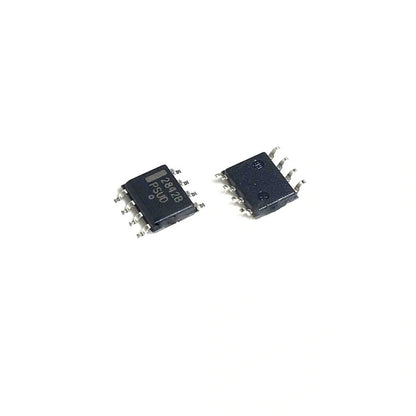

The UC2842B is a high-performance current-mode PWM controller IC designed for offline and DC-DC switching converter applications. Drop-in replacement for the OEM controller on Bitmain APW9, APW12 and Avalon PSU repair scenarios: restores precise duty cycle control, cycle-by-cycle current limiting, and stable voltage regulation across the wide operating envelope these PSUs see in production mining duty.

Built around a trimmed oscillator for precise duty cycle control and temperature-compensated reference for stability across the -40°C to +85°C operating range. High-gain error amplifier delivers efficient voltage regulation; integrated current sense comparator enables fast cycle-by-cycle current limiting that protects the primary-side MOSFETs from short-circuit and overload events. High-speed MOSFET driver output directly drives the gate of the primary switch without external gate-drive ICs. UVLO (under-voltage lockout) on input and reference safeguards the IC during startup and brownout events; programmable output deadtime tunes the switching transitions for the specific transformer characteristic.

When to Replace the UC2842B

• PSU dead — no switching activity on the primary side — UC2842B failed open, no PWM output to drive the main switch.
• PSU oscillates or fails to start — degraded reference or feedback loop on the controller side.
• Excessive heating at the UC2842B location — internal damage from a fault event.
• Visible damage on the IC package — burn marks, lifted pins, surge damage from a transient.
• Preventive PSU refurbishment — refresh the controller IC alongside electrolytics during a complete rebuild on used APW9 / APW12 / Avalon PSU units.

UC2842B Specifications

FAQ — UC2842B PWM Controller

Q: Is the UC2842B interchangeable with UC3842 / UC3843?
A: The UC2842 / UC3842 family shares the same pinout and core function. UC2842 (industrial, -40 to +85°C) vs UC3842 (commercial, 0 to +70°C). For Bitmain / Avalon PSU repair, use UC2842B for the wider temperature tolerance — production mining PSUs see thermal cycling that benefits from industrial-grade reference stability.

Q: How do I diagnose UC2842B failure in-circuit?
A: Probe the gate-drive output pin with a scope — should show a clean PWM waveform at the design frequency (typically 50-100 kHz). No PWM = UC2842B dead. Irregular / unstable PWM = degraded reference or feedback loop. Note: the PSU primary side operates at 400V+ — discharge bulk capacitors before probing.

Q: Should I replace surrounding components when swapping the UC2842B?
A: Check the compensation network (RC components on the COMP pin), the current-sense resistor, and the gate-drive resistor — these often share the fault event. Replace any visibly damaged passives alongside the IC for production-grade reliability.

Q: Bulk pricing for repair shops?
A: Yes — email contact@lys-sz.com with your monthly volume. Reel and tape quantities are stocked.
