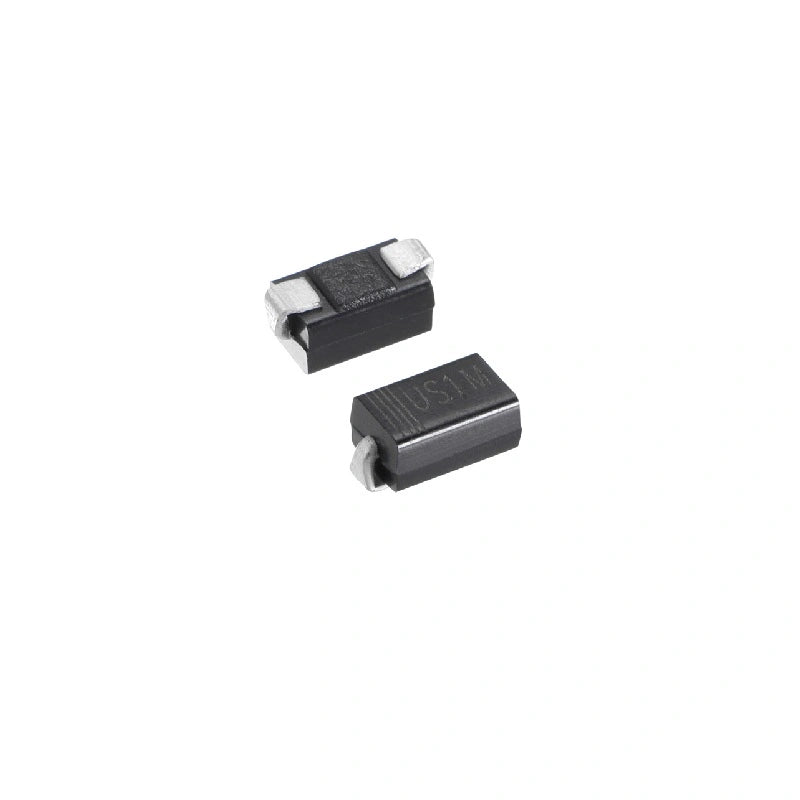

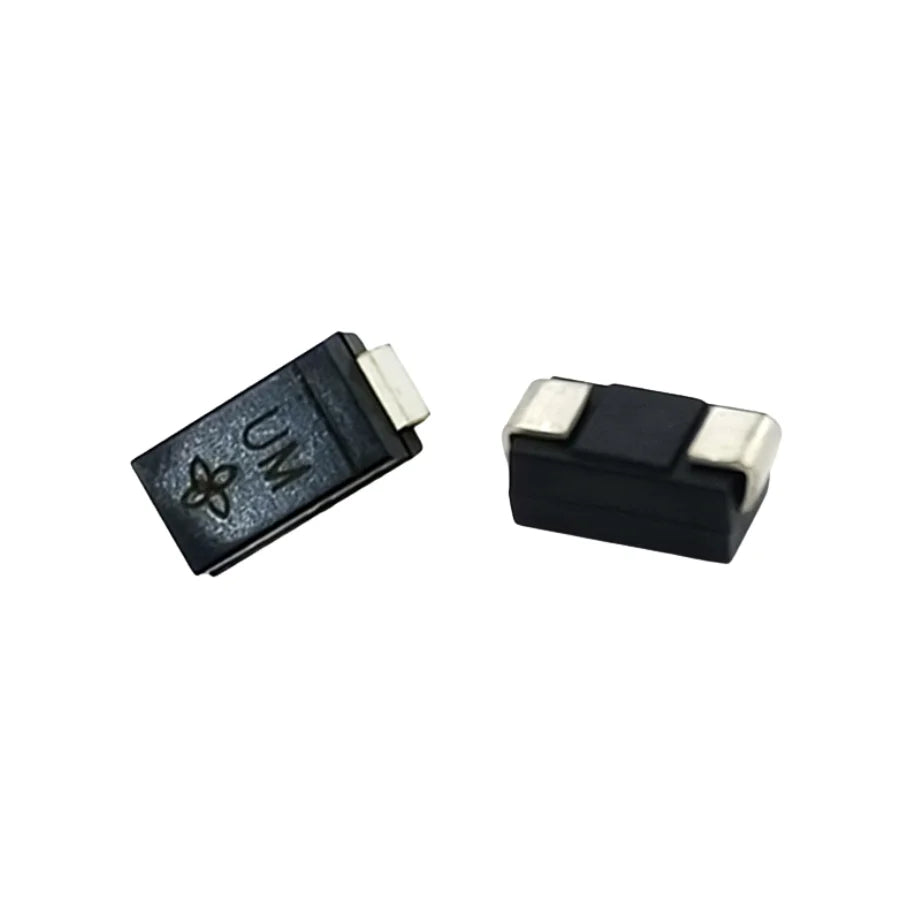

US1M DIODE Rectifier Ultrafast Recovery Rectifier SMA T&R 5K for PSU Power Supply Unit

$0.34 USD
$0.34 USD
Sale Sold out
Shipping calculated at checkout.

Additional details

Shipping fees will be automatically calculated during the checkout process.

Reach out to us via the contact form for further information and assistance.

About the Product

Experience Reliable Performance with the US1M Surface Mount Rectifier


Achieve exceptional reliability and efficiency in your power supply unit (PSU) with the US1M Surface Mount Ultrafast Rectifier. This reliable diode is designed for a wide range of applications, delivering optimal performance and safety. With its SMA-W package, it offers high efficiency, robust current capacity, and surge current capability.

Efficient and Versatile Ultrafast Rectifier for Various Applications

The US1M Rectifier features a reverse voltage (Vr) of 1 kV and a forward current (If) of 1 A, making it suitable for demanding power supply requirements. As a fast recovery rectifier, it ensures efficient energy conversion with a low forward voltage (Vf) of 1.7 V. Additionally, its maximum surge current of 30 A provides reliable protection against power surges.

Safety is paramount, and this rectifier meets both RoHS compliance and UL 94 V-0 flammability ratings for added peace of mind. With a compact form factor and surface-mount design, it is easy to integrate into your PSU assembly.



Technical Features:

Product Category

Rectifiers

Mounting Style

SMD/SMT

Vr - Reverse Voltage

1 kV

If - Forward Current

1 A

Type

Fast Recovery Rectifiers

Configuration

Single

Vf - Forward Voltage

1.7 V

Max Surge Current

30 A

Ir - Reverse Current

5 uA

Recovery Time

75 ns

Minimum Operating Temperature

- 65 C

Maximum Operating Temperature

+ 150 C

Packaging

Reel

Height

2.1 mm

Length

4.6 mm

Product

Rectifiers

Width

2.92 mm

Unit Weight

0.002258 oz
