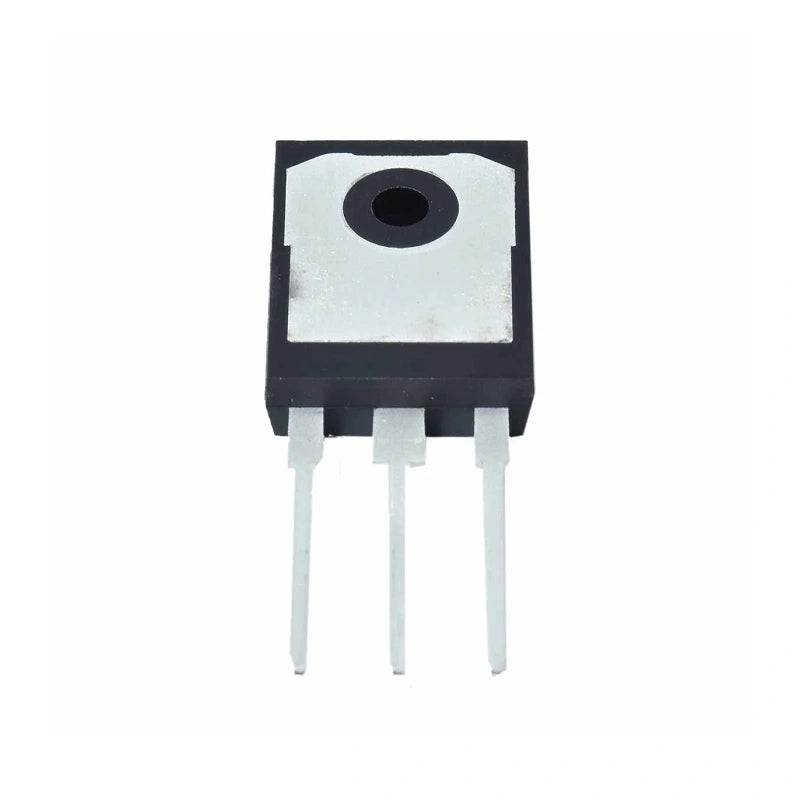

Vishay Siliconix G47N60EF MOSFET N-Channel 600V 47A (Tc) High Power Through Hole TO-247AC
Additional details
Shipping fees will be automatically calculated during the checkout process.
Reach out to us via the contact form for further information and assistance.
Couldn't load pickup availability
About the Product
High-Performance N-Channel MOSFET for Power Applications
Upgrade your power control systems with the Vishay Siliconix G47N60EF MOSFET. This high-performance N-Channel MOSFET is designed to meet the demands of industrial applications. With a drain-to-source voltage of 600V and a continuous drain current of 47A (Tc), it provides robust power handling capabilities.
Vishay Siliconix G47N60EF - Efficient Power Control
Featuring advanced MOSFET technology, the G47N60EF ensures efficient power control with low on-resistance (Rds On) of 67mOhm @ 24A, 10V. Its gate charge (Qg) of 225nC @ 10V enables fast switching, optimizing system performance. The MOSFET operates within a wide temperature range of -55°C to 150°C (TJ), making it suitable for challenging environments.
The G47N60EF is packaged in a reliable through-hole TO-247AC package, allowing secure mounting and thermal dissipation. With its high power dissipation of 379W (Tc), it delivers exceptional reliability and performance in power electronics applications.
Technical Features Table:
| Feature | Specification |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 47A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 67mOhm @ 24A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 225nC @ 10V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 4854pF @ 100V |
| Power Dissipation (Max) | 379W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Base Product Number | SIHG47 |
